EW-D ASA antenna splitter
207
Connecting receivers to the EW-D ASA

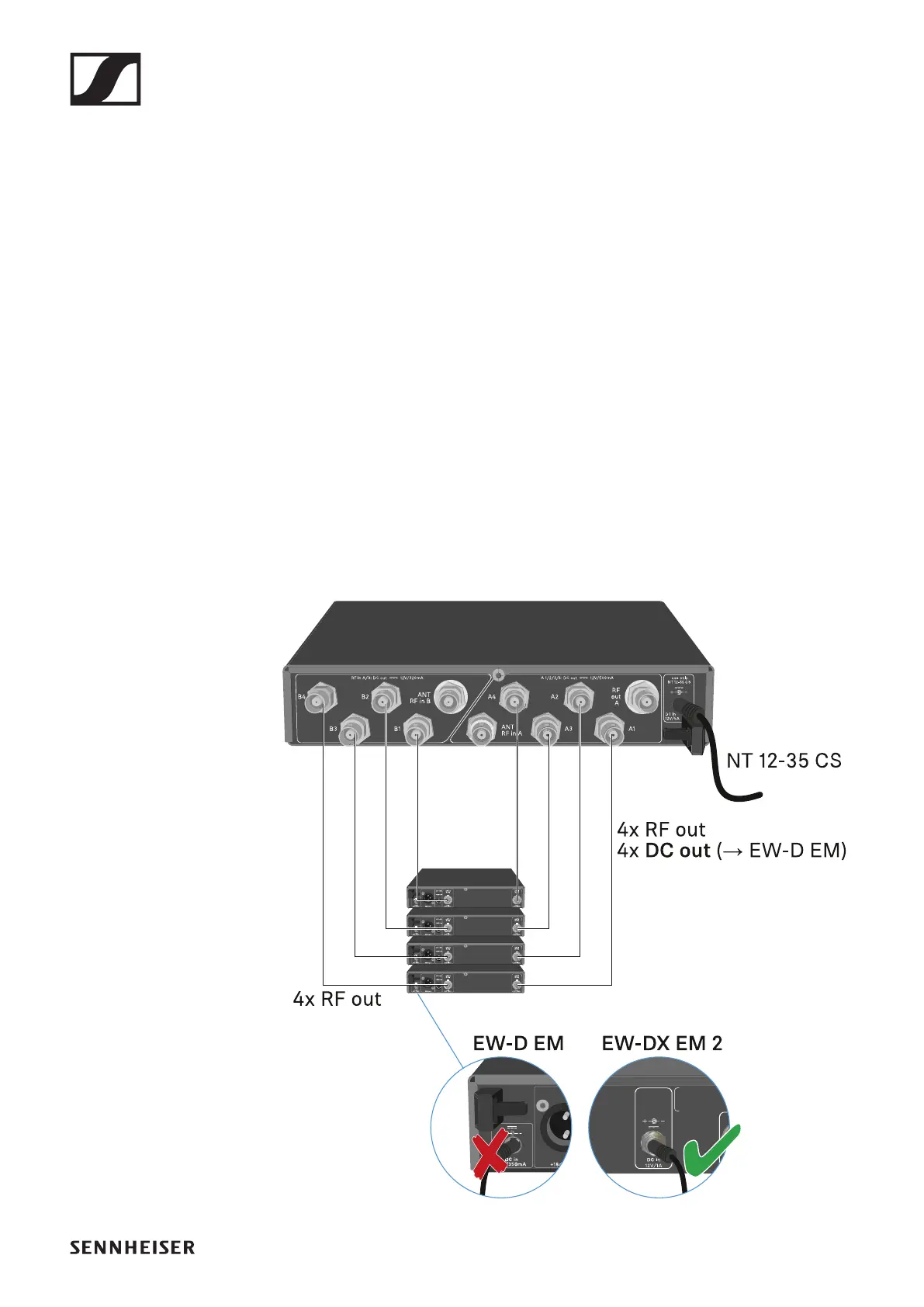

You can connect and operate up to four EW-D EM or EW-
DX EM 2 rack receivers with the EW-D ASA.
To connect the receivers to the EW-D ASA antenna splitter:
▷ Connect one of the receiver’s antenna inputs to one of the
BNC sockets A1 to A4 using one of the supplied BNC ca-
bles.
The EW-D EM receivers do not require their own power
supply. They are powered via the BNC sockets A1 to A4.
The EW-DX EM 2 receivers cannot be supplied with power
via the BNC sockets. They need to be powered by the in-
cluded power supply unit or by PoE.
▷ Connect the receiver’s other antenna input to one of the
BNC sockets B1 to B4 using one of the supplied BNC ca-
bles.
