EW-D SK bodypack transmitter
68
EW-D SK bodypack transmitter

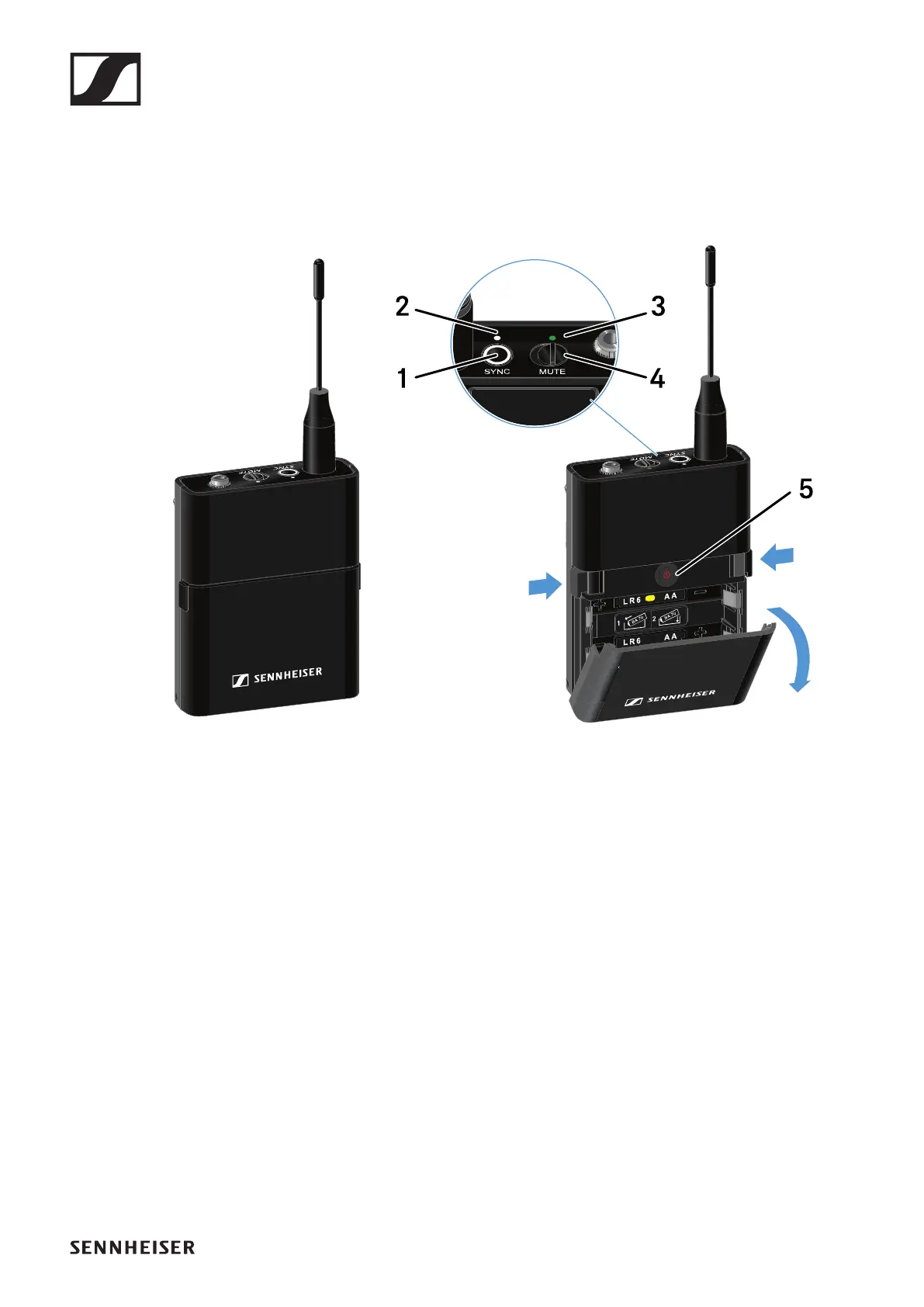

Product overview
►
1 SYNC button
• See „Establishing a radio link | Synchronizing the receiver
and transmitter“
2 DATA LED
• See „Meaning of the LEDs“
3 LINK LED
• See „Meaning of the LEDs“
4 Mute switch
• See „Muting the bodypack transmitter“
5 ON/OFF button
• See „Switching the bodypack transmitter on and off“
