Product overview
8

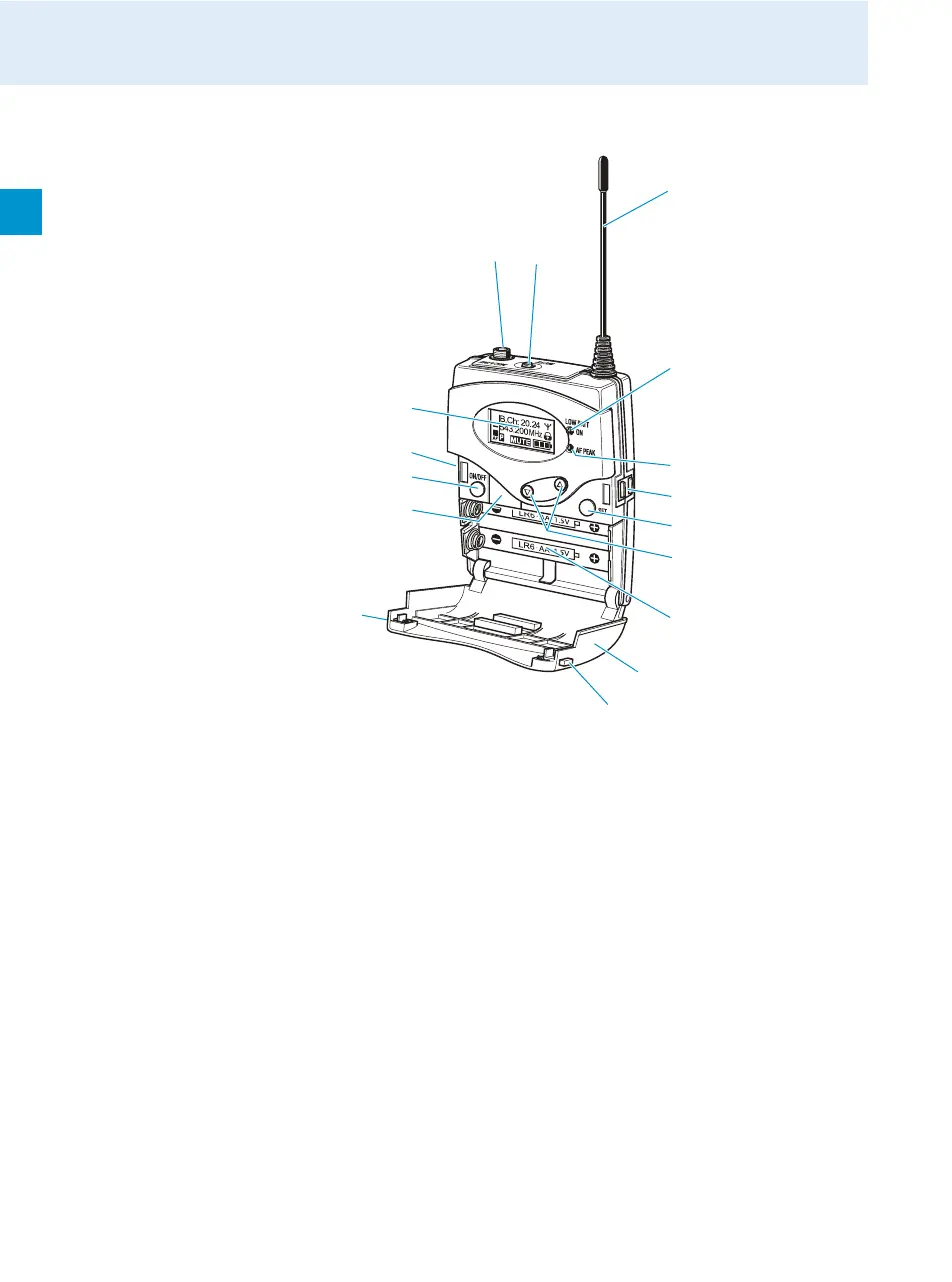

Overview of the SK 500 bodypack transmitter
Operating elements
Microphone/instrument input (MIC/LINE),
3.5 mm jack socket, lockable
MUTE switch
쐋 Antenna
Operation and battery status indicator, red LED
(lit = ON/flashing = LOW BATTERY)
Audio overmodulation indicator, yellow LED
(lit = AF PEAK)
Charging contacts
SET button
/ rocker button (UP/DOWN)
Battery compartment
Battery compartment cover
Battery compartment catches
Infra-red interface
ON/OFF button,
serves as the ESC (cancel) key in
the operating menu
Display panel, backlit in orange
