Sennheiser Freeport - System Technical Specifications; Connector Assignment Diagrams

26

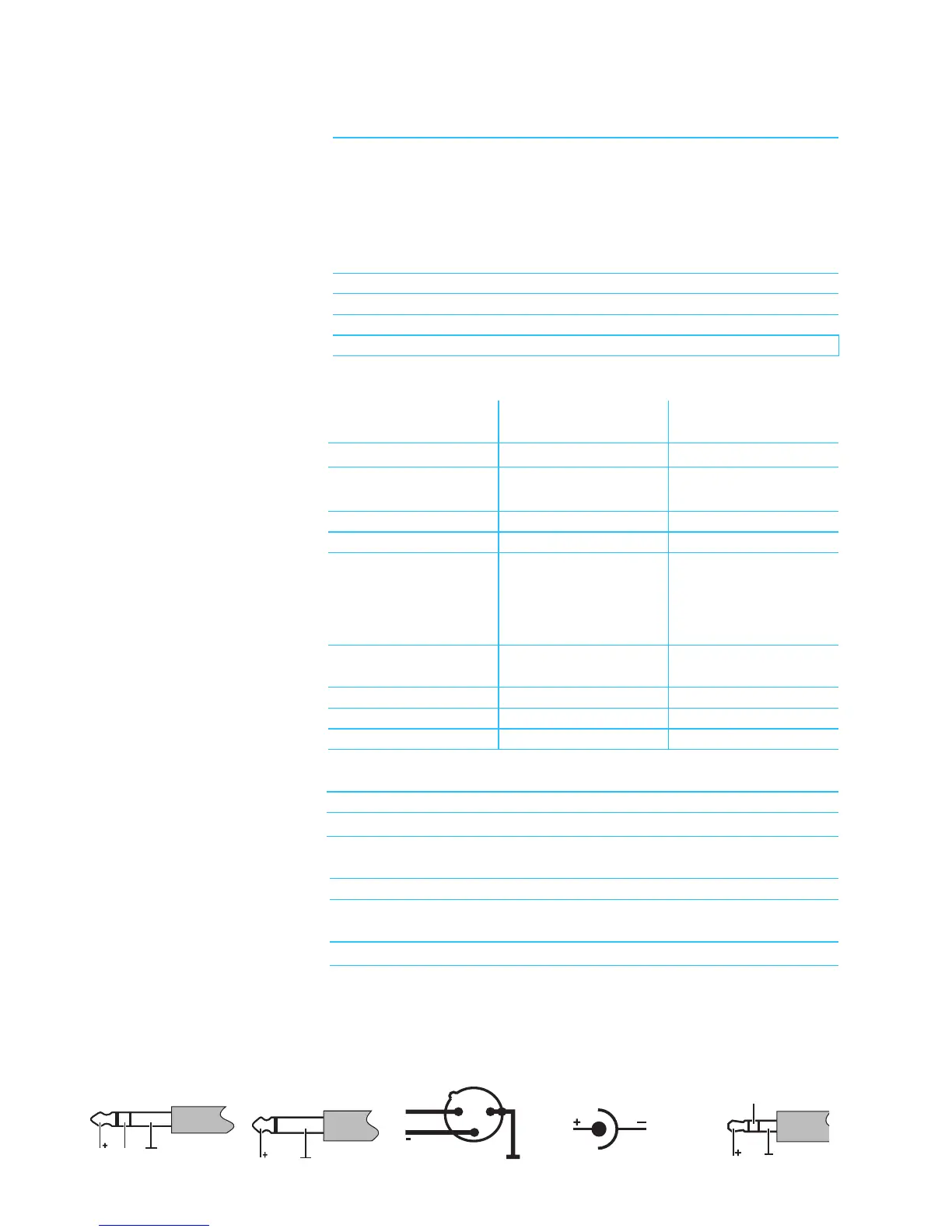

Specifications of the freePORT systems
System characteristics
Individual components
ME 2 clip-on microphone
Type approval
Connector assignment
Transmission/receiving
frequencies
4 UHF transmission/receiving frequencies
Range A: 719 to 721 MHz
(719.15 – 719.75 – 720.15 – 720.85 MHz)
Range C : 742.5 to 744.5 MHz
(742.65 – 743.35 – 743.85 – 744.45 MHz)
Range E: 863 to 865 MHz (863.1 – 863.7 – 864.1 – 864.9 MHz)
Switching bandwidth 2 MHz
Signal-to-noise ratio
> 95 dB(A)
THD (1 kHz)
< 1 %
Temperature range –10 bis +45 °C / 95 relative humidity
EM 1
receiver
SK 2
bodypack transmitter
SKM 3
radio microphone
Power supply 12V DC
NOM
/100 mA 9 V PP3 battery 9 V PP3 battery
Operating time
(with alkaline battery)
– approx. 10 hrs approx. 10 hrs
Frequency response – 60...16,000 Hz ± 3 dB 80...16,000 Hz ± 3 dB
RF output power (-3 dB) – 10 mW 10 mW
AF output voltage
¼’’ (6.3 mm) jack socket
(unbal.):
XLR socket (balanced):
max. +10 dB
u
max. +16 dB
u
––
Dimensions in mm approx. 35 x 213 x 98 approx. 60 x 100 x 30
(with belt clip)
approx. 285;
∅ approx . 35 x 50
Weight approx. 570 g approx. 90 g approx. 210 g
Transducer principle – – dynamic
Pick-up pattern––cardioid
Transducer principle
Pick-up pattern
pre-polarized condenser
omni-directional
EU
see page 51
USA
Canada
FCC - Part 74.861 grant of eqipment authorization DMOH1FPXD und
DMOB1FPXD
RSS - 123 with authorization IC: 2099A-FPSKMEM und IC: 2099A-FPSK
EM 1:
¼’’ (6.3 mm) stereo
jack plug,unbalanced
EM 1:
¼’’ (6.3 mm) mono
jack plug,unbalanced
EM 1:
XLR-3F connector,
balanced
EM 1:
DC connector for
power supply
SK 2:
3.5 mm jack plug
N C / G ND
21
3
+
Instr./MIC
NC/GND
