Specifications
Connector assignment
Power supply
100 to 240 V AC +10
%
/ -15
%
50 to 60 Hz, protection class 1
Current consumption 0.4 A
Ambient conditions
Temperature range:
Relative humidity:
–10 °C to +55 °C
max. 85 %
Dimensions
(w/o rack-mount “ears”)
approx. 436 x 228 x 43 mm (19“, 1 U)
Weight approx. 2.6 kg
Connections
Ethernet
Bit rate:
Cable type:
Max. cable length:
LAN 1 and LAN 2
2 x RJ 45 (Neutrik NE8FBH-S)
100 MBit/sec. (as per IEEE 802.3 u)
MAC adresses are indicated on the type plate
CAT 5 or higher
Use only shielded cable!
100 m
UART 1 infrared interface
Max. cable length:
lnsulation:
10 x RS 485 via RJ 10
(for connecting ew G2 series devices)
5 x RS 485 via sub-D
(for connecting EM 3532 twin receivers)
3m
all channels potential-free with regard to each other
and to the Net 1
In compliance with CE – EMC EN 50022
EN 50024
– Safety EN 60950-1

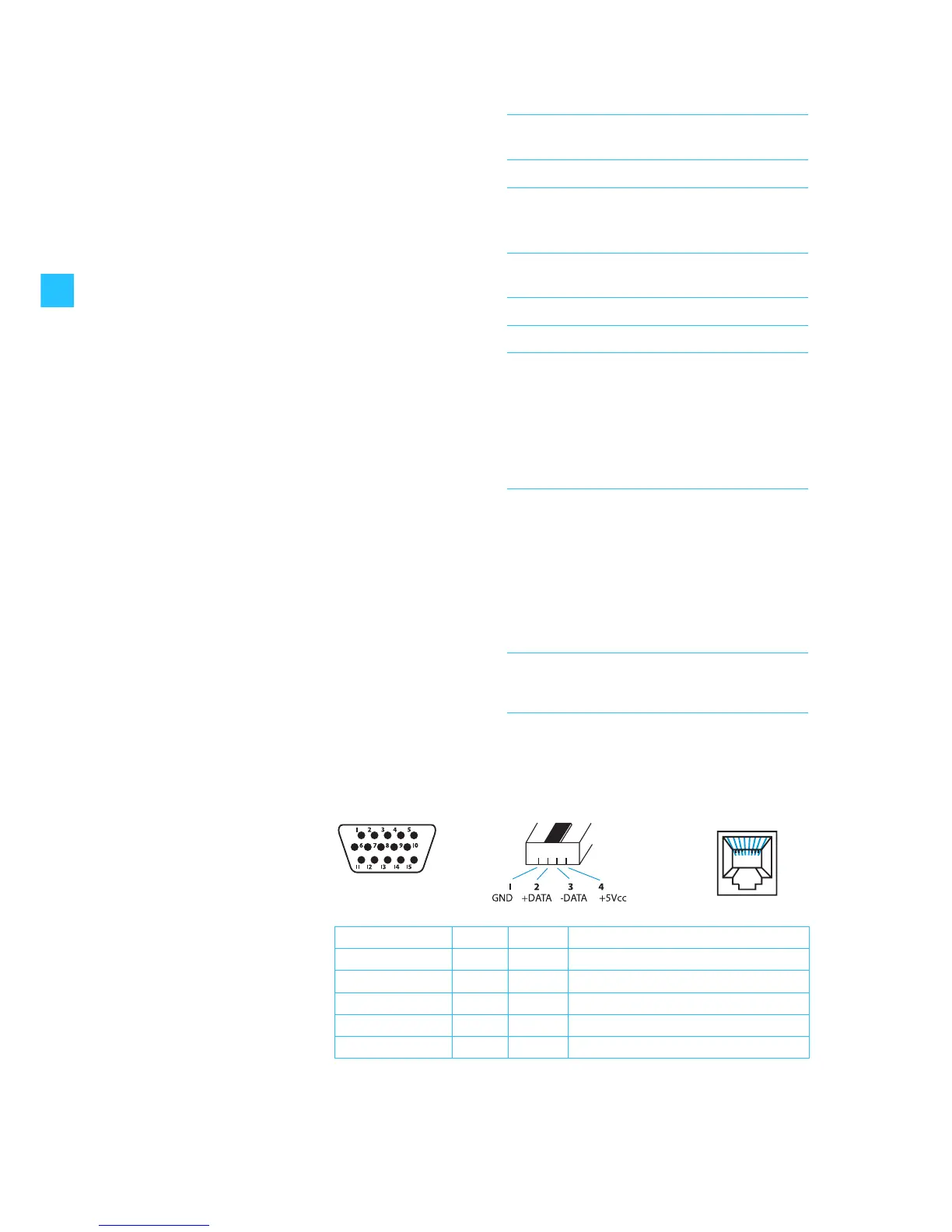

SUB-D connector RJ 10 Name Meaning
1, 2 - NC must not be connected
5, 6, 12, 14 1 DGND GND digital supply ground, shielding
9 2 D+ RS 485 DATA
10 3 D– RS 485 /DATA
11 4 +5V VCC digital supply voltage
SUB-D (15-pin) RJ 10
12345678
RJ 45 (CAT 5)
