Sennheiser WIRELESS DIGITAL - 5 Preparing the devices for use; 5.1 EM 1090 DIGITAL receiver

7
 
  

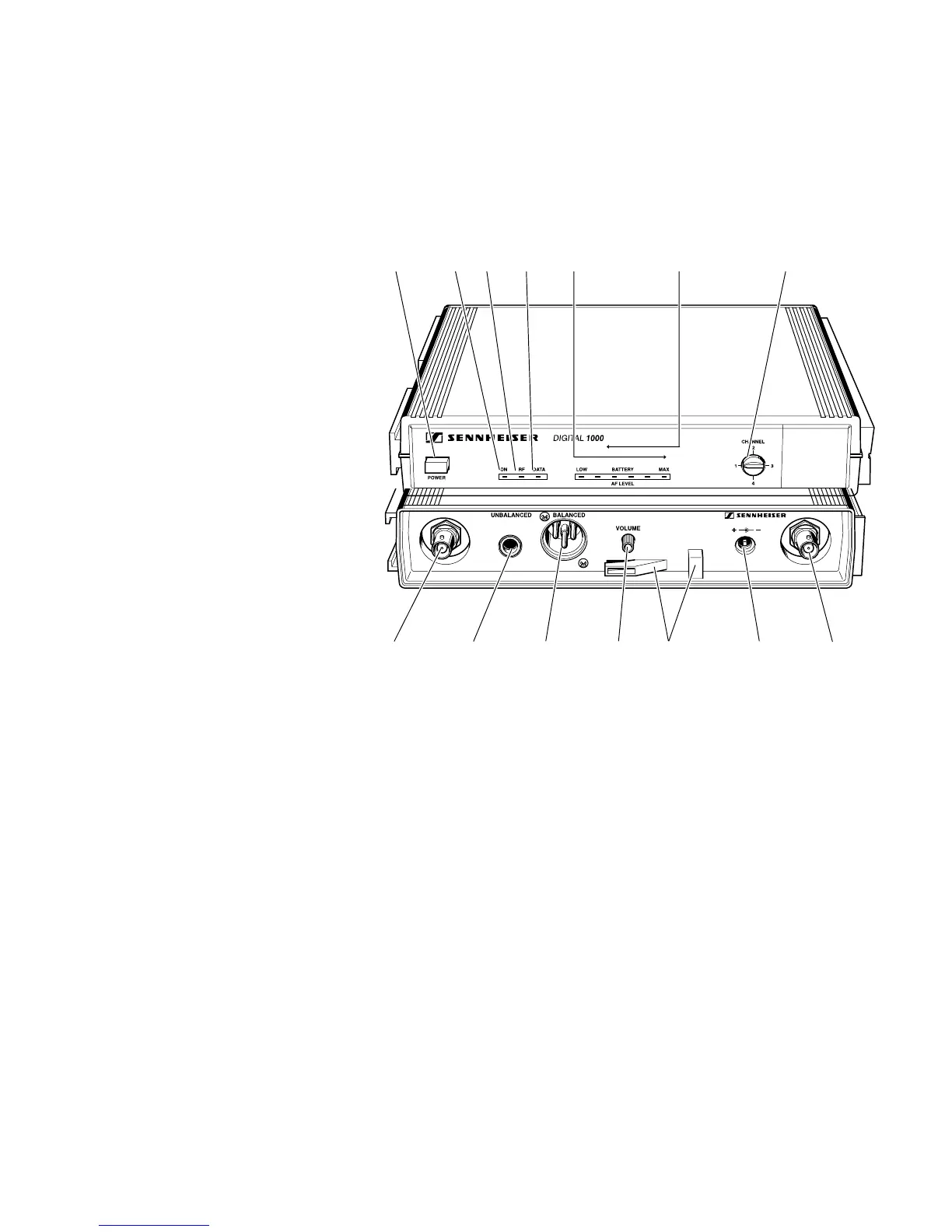

 POWER button
 “Power on/off” control LED
 “RF” control LED
 “Data” control LED
6-segment level display for
 - incoming AF signal
 - transmitter battery life
 Channel selector switch
 BNC socket 1 for connection of additional A 1090 DIGITAL antenna
 AF output, unbalanced, 1/4” jack (line level)
 AF output, balanced, XLR-3M
 AF output level control (for outputs  and )
 Cable grip for power supply DC cable
 DC socket for connection of mains unit
 BNC socket 2 for connection of additional A 1090 DIGITAL antenna
5 Preparing the devices for use
5.1 EM 1090 DIGITAL receiver
