Sentec tcPCO2 - Page 3

19 20 21 22 23 24
15 16 17 18
12 sec
100
70
75
25
- 15 min 0 min
- 15 min 0 min
0 min
39.4
50
30
PCO2
mmHg
84
140
50
PR
bpm
96
100
85
%SpO2
2.0 PI
100%
+
-
7.7h
AD
°C
42.0
RHP
0
[John Smith]
2014-04-28 15:28:31
1 2 3 4
5
6
7
8101213
14
11 9

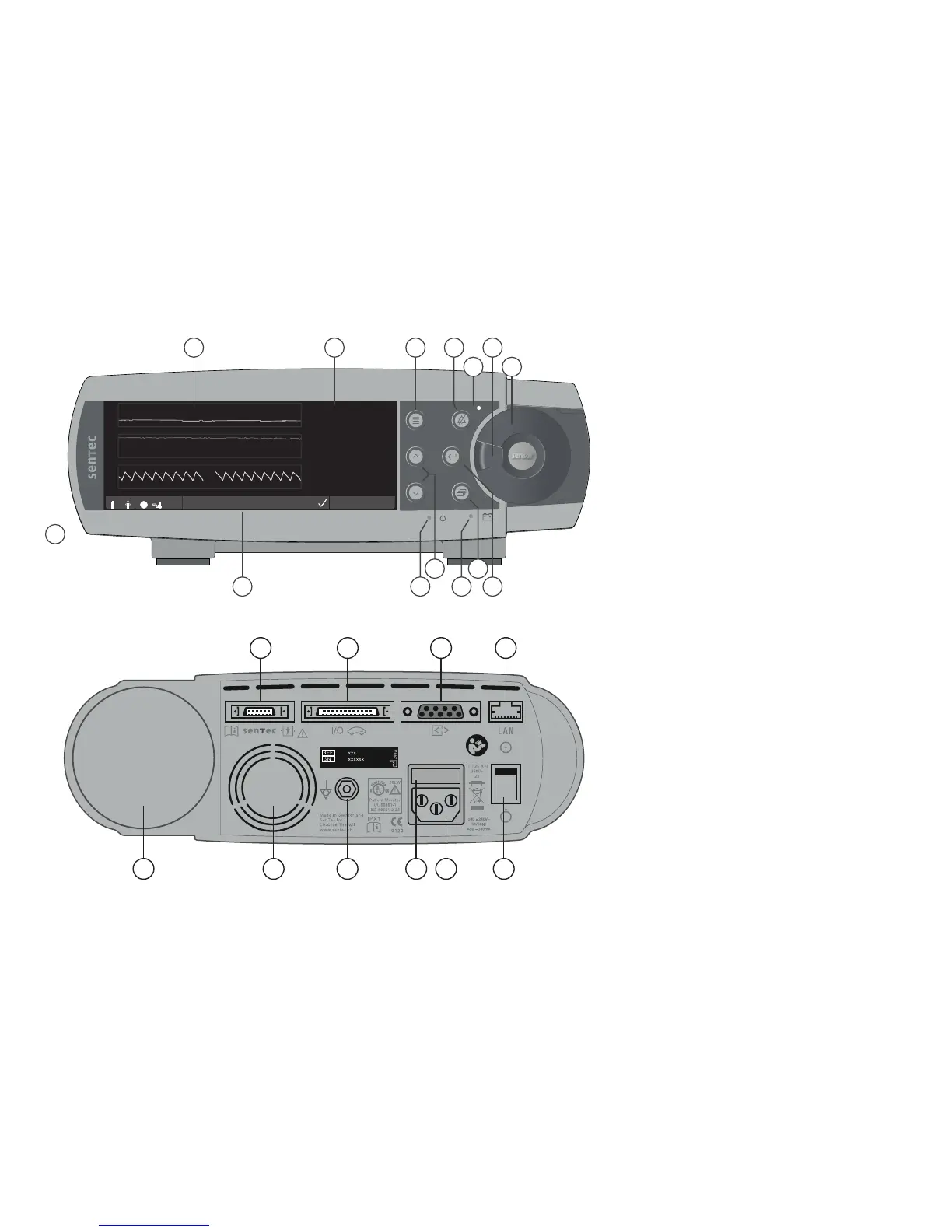

1 Trend Display Area
2 Numerical Display Area
3 Menu/Previous Level Button
4 AUDIO PAUSED/OFF Button
5 AUDIO PAUSED/OFF Indicator (yellow LED)
6 Door Handle
7 Docking Station Door (colored dot in center
of door indicates the SDM’s PO
2
activation
status: blue if activated, orange otherwise)
8 Enter Button
9 Display Button
10 AC Power/Battery Indicator
(green/yellow LED)
11 UP/DOWN Buttons
12 ON/OFF Indicator (green LED)
13 Status Bar
14 Speaker (on the side)
15 Sensor Connection Port
16 Multipurpose l/O-Port
(Nurse Call & Analog Output)
17 Serial Data Port (RS-232)
18 Network Port (LAN)
19 Gas Bottle Slot
20 Fan
21 Equipotential Terminal Connector (ground)
22 Fuse Holder
23 AC Power Connector
24 ON/OFF Switch
