2.1 Wall mounting
The BM-50 features an installation bracket that allows simple device installation and replacement. The bracket is
fixed to the wall using 4 screws or adhesive tape.

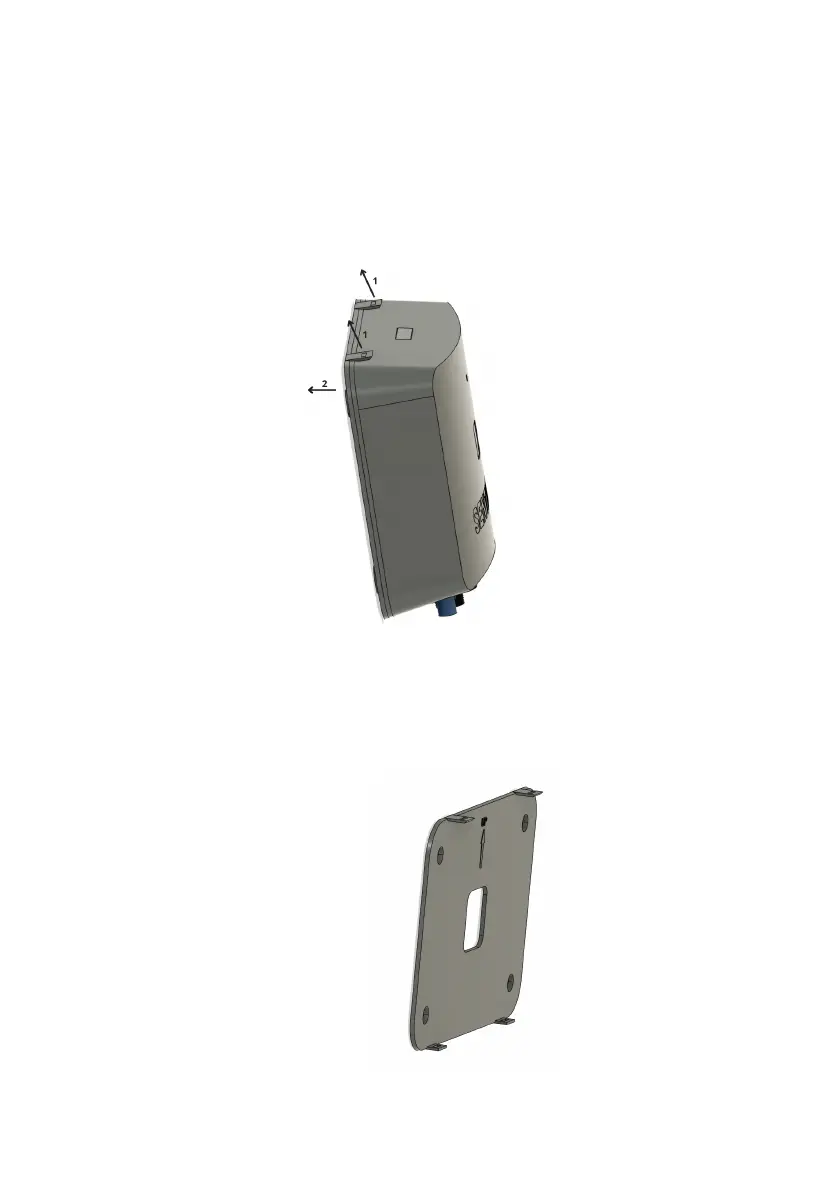

1. Remove the bracket by gently lifting the clips on top of the device (1), and then pull the bracket away
from the device.
2. Attach the bracket to the wall using included self-tapping screws or adhesive tape. Be careful to retain
the bracket orientation as the top and bottom clips on the bracket are different. Top clips are longer than
bottom ones.
