potential damage by installing a fuse holder with a 1 A fuse on the positive (+) power cable as close as possible to
the battery terminal.
Connect the red wire through a fuse (fuse should not be inserted until installation is complete) to permanent power
source (battery).
Connect the BLACK wire to system ground.

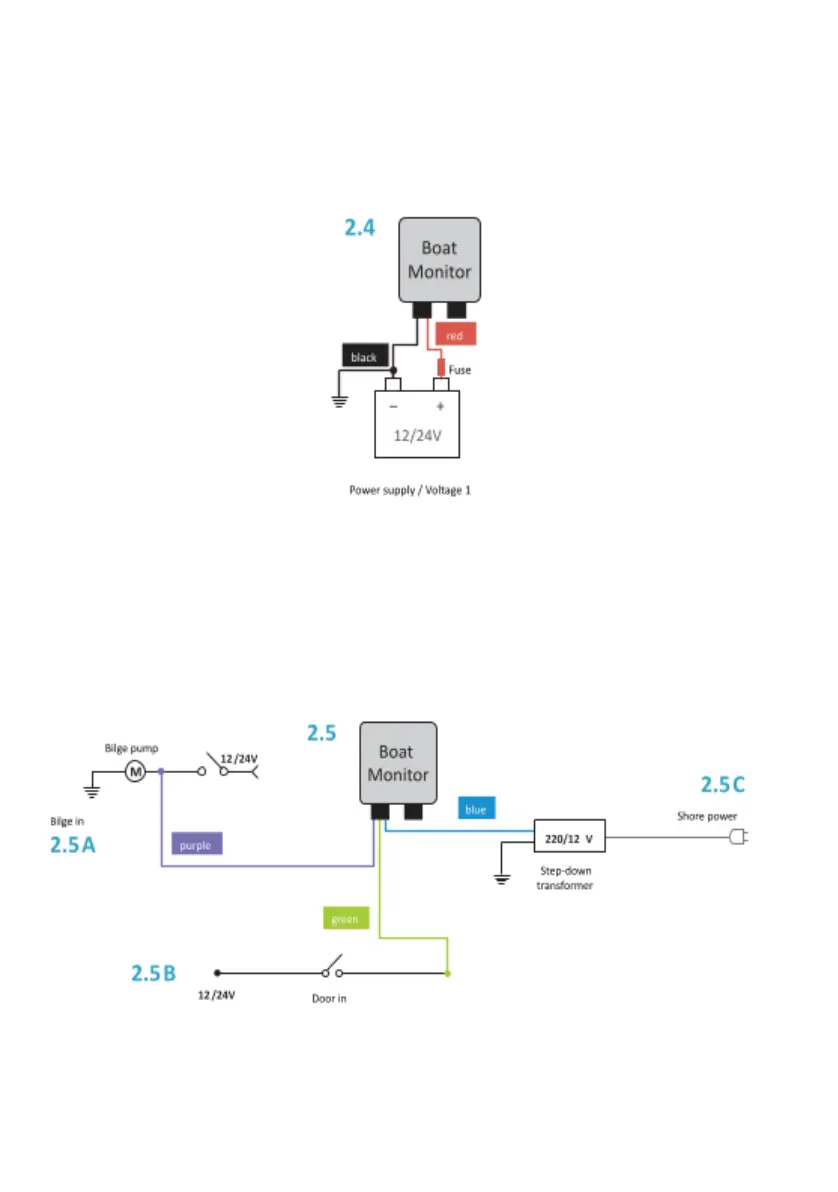

2.5 Bilge, door switch connection and shore power detection
Boat monitor comes with predefined digital input configuration shown on wiring diagram 2.5. If a different
configuration is required, digital inputs can be reconfigured in the Sentinel app.
