UNPACKING

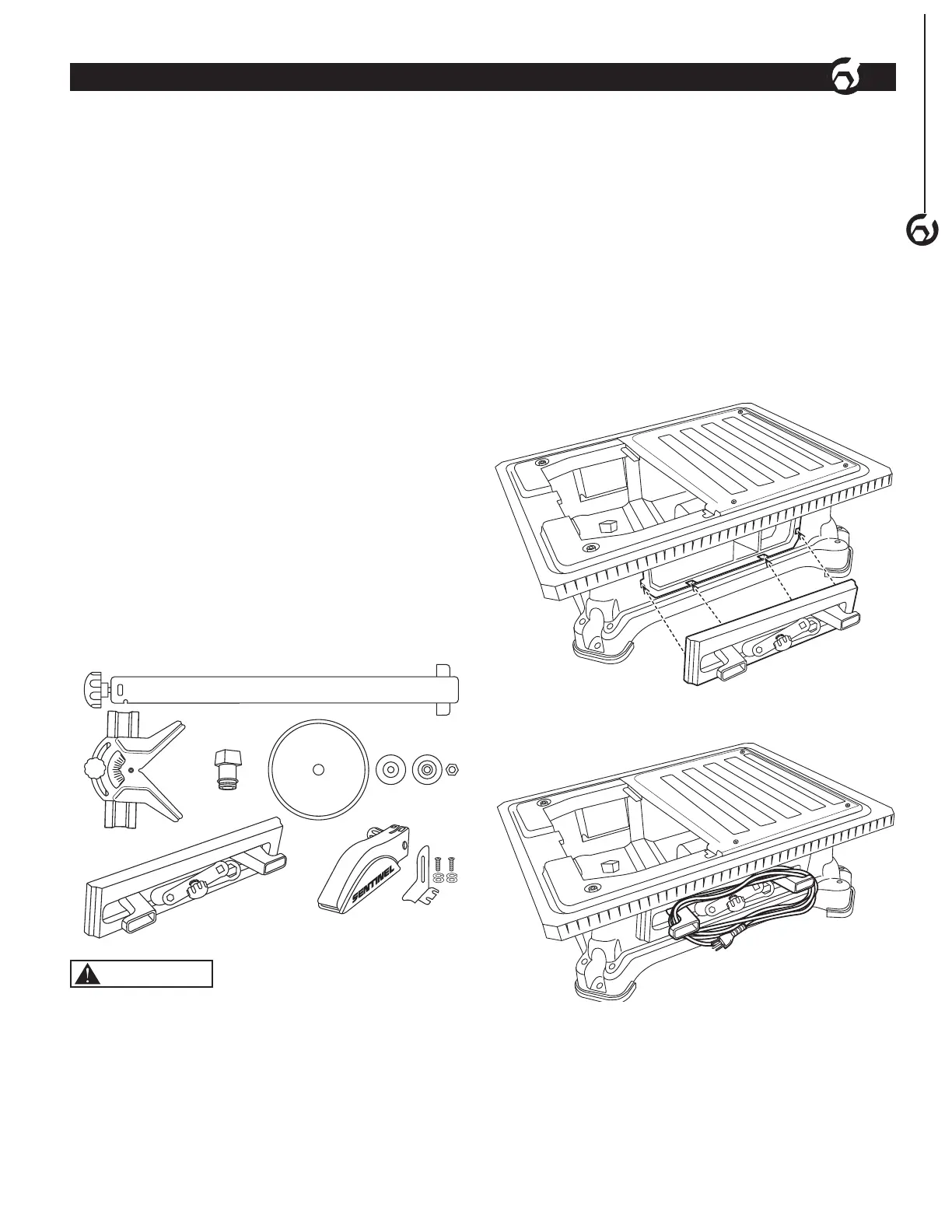

Refer to Figure 1.
Check for shipping damage. Check immediately whether
all parts and accessories are included. If anything is
missing, or broken, contact your retailer.
The saw comes assembled as one unit. Additional parts
which need to be fastened to saw, should be located and
accounted for before assembling.
ITEM DESCRIPTION QTY
A Tile Saw (Not Shown) 1
B 7" Cutting Wheel 1
C Inner Wheel Washer (wheel assembly) 1
D Outer Wheel Washer (wheel assembly) 1
E Arbor Nut (wheel assembly) 1
F Cord Retainer with
Arbor and Hex Wrench attached
1
G Miter Guide 1
H Splash Guard 1
I Splash Guard Bracket 1
J Screws/Nuts (splash guard assembly) 2/4
K Rip Guide 1
L Drain Plug 1
Figure 1
225
0
45
225
0
B
G
C
F
J
H
D
K
I
E
L
WARNING
Do not use the machine until it is completely
assembled and you have read and understood the
entire operating manual. Failure to comply could
result in accidental starting and possible serious
personal injury.
ASSEMBLY
3
TOOLS NEEDED
The following tools are needed to assemble and adjust the
tile saw:
• Supplied arbor and hex wrenches
(Shipped stored on the cord retainer)
• Phillips screwdriver (not included)
• Square (not included)
TO INSTALL CORD RETAINER
See Figure 2
1. Snap the cord retainer (with arbor/hex wrenches) into
the opening on the rear of the saw.
2. Wrap the power cord around the cord wrap as shown.
Figure 2
3
ASSEMBLY
