MOTOR
The saw is equipped with a 4.8 Amps motor. The 120 Volt
motor has the following specifications:
Horsepower .................................................................. 3/4
Voltage .........................................................................120
Amp ...............................................................................4.8
Hertz ...............................................................................60
Phase .......................................................................Single
RPM ............................................................................3450
ELECTRICAL CONNECTIONS
• Turn the switch off and disconnect the machine
from power source before performing any repair or
maintenance work.
• Some electrical wiring and connection work must be
performed by a qualified electrician in accordance with
local regulations.

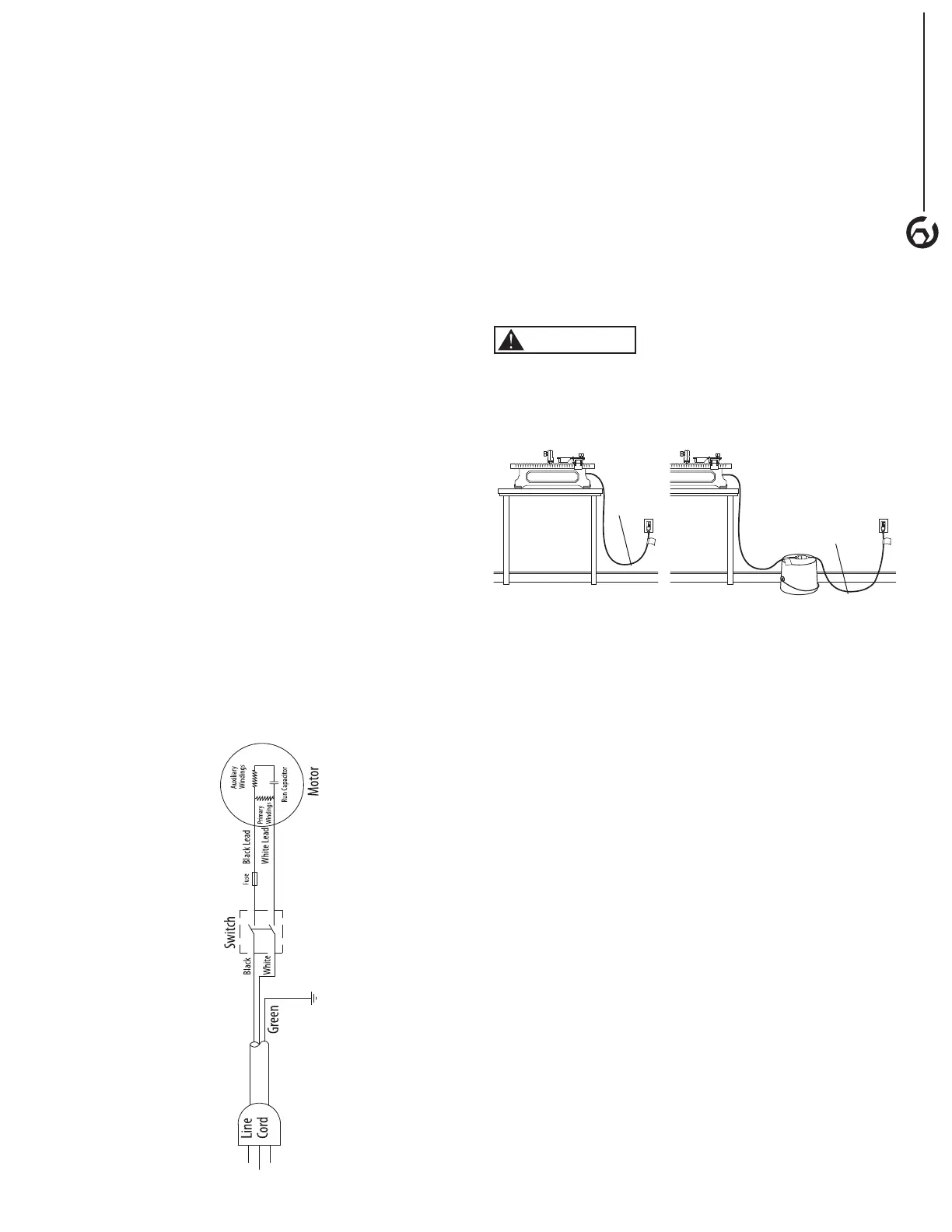

• Scheme of the motor and electric wiring inside this
machine is shown in Figure 10.
• There is a green grounding wire fastened to the frame
of the machine to provide shock protection. Do not
disconnect the grounding wire from the frame.
• The motor is rated for use at 120 Volts.
• Connect this machine to 3-conductor power outlet with
appropriate rating only.
• Use only 3-pronged extension power cord with
appropriate rating with this machine.
• When changing the power cord, use only 3-pronged
power cord with appropriate rating.
• The power switch is a single pole rocker switch with
locking mechanism. Remove the key when not in use to
prevent accidents.
Figure 10
POSITION OF THE TILE SAW
See Figure 11
Position tile saw to one side of a wall-mounted outlet
to prevent water from dripping onto the outlet or plug.
The operator should arrange a “drip loop” in the cord
connecting the saw to the outlet. The “drip loop” is the part
of the cord below the level of the outlet, or the connector if
an extension cord is used, to prevent water traveling along
the cord and coming in contact with the outlet.
If the plug or outlet does get wet, DO NOT unplug the
cord. Disconnect the fuse or circuit breaker that supplies
power to the tool then unplug and examine for the
presence of water in the outlet.
WARNING
To reduce the risk of electrocution. Keep all connections
dry and off the ground. Do not touch the plug with
wet hands.
Figure 11
Drip Loop
Drip Loop
7
