SolaStat™-1-3 Installation Guide
Version 1.1 – April 2013 Page 9
MOUNTING THE SENSORS AND CONNECTING WIRING, CONTINUED
Connect the
Wiring
The SolaStat™ is normally supplied pre-wired, hence wiring inside the
controller should not be necessary.
However, if needed, the wiring diagrams below show you how to wire the unit
for single and dual elements.
1. Connect the wiring from the Controller to the ROOF sensor, the TANK
sensor and the INLET sensor;
2. Connect the mains wiring;
3. Connect the wiring from the Controller to the pump.
The unit can also be installed with the wiring entering from behind the unit.
2.
Connect the Mains
wiring.
3
Connect the Pump wiring. Make
sure the pump is appropriate for domestic hot
water circulation and does not exceed 1 Horsepower rating (750 W) as shown on
the label on the side of the enclosure.

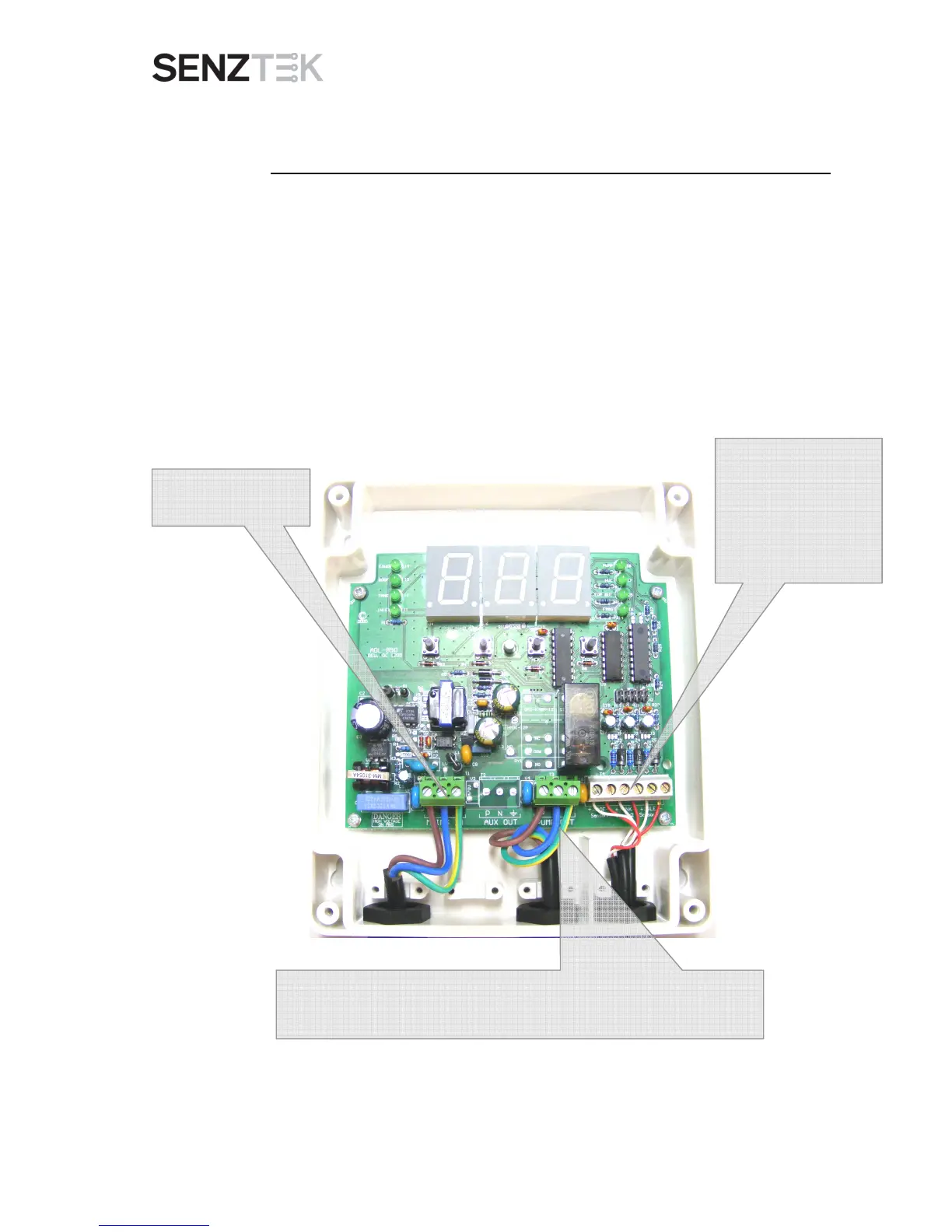

1.
Connect the wiring
from the controller to
the ROOF sensor, the
TANK Sensor and the
INLET Sensor (as
labeled)
