Serpent Cobra SRX8e - Page 23

bag 9
23
STEp 38
Put thread lock in all
the M3x10 screws
that x the battery
holder to the chassis.
M3x12
M3x12
M3x12
M4x10
M4x10
M3x12 M3x10
SHORTYBATTERYCONFIGURATION
SHORTYBATTERYREARWARD
CONFIGURATION
SHORTY BATTERY FORWARD
CONFIGURATION

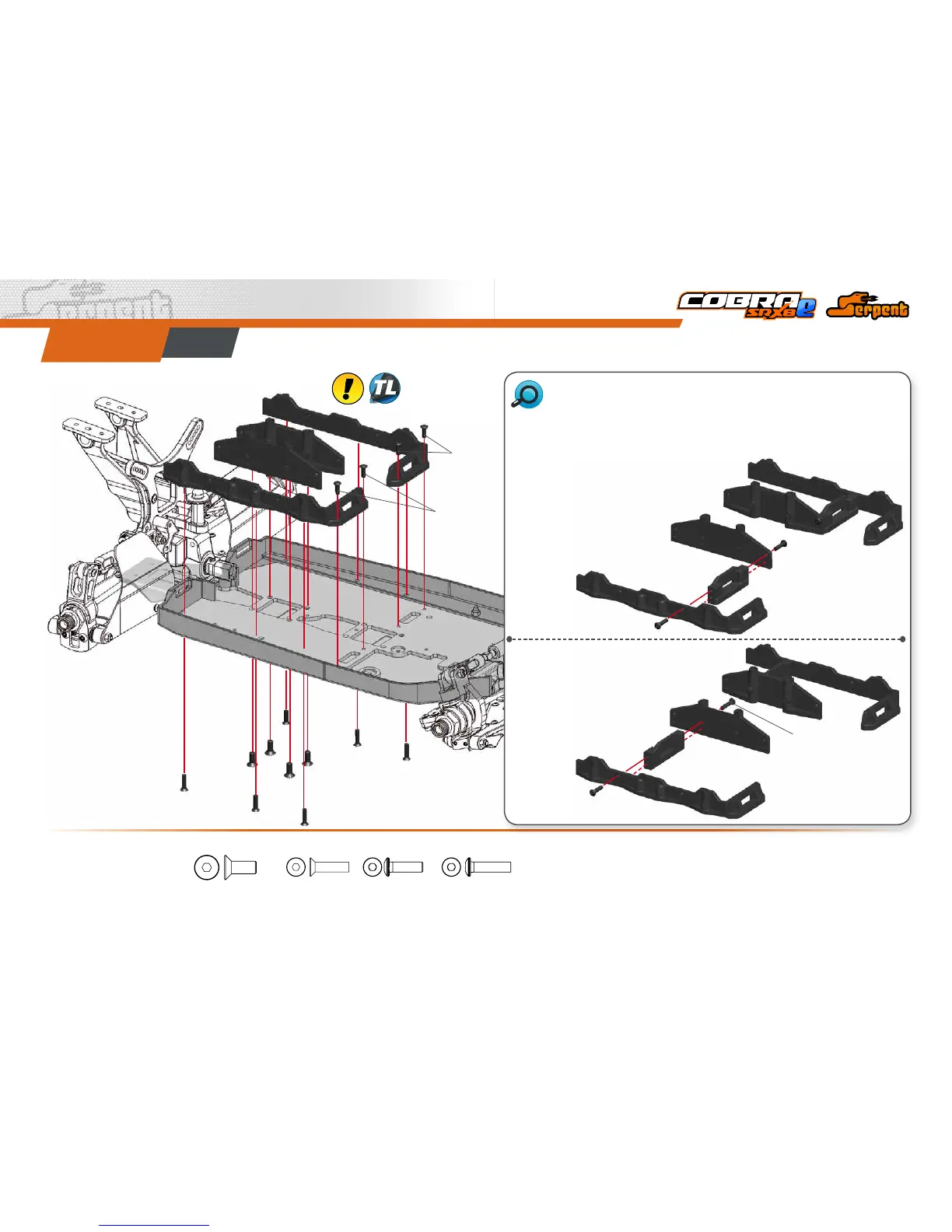

With the SRX8e saddle conguration it is possible to use 2S STANDARD LIPOS, and
2S SHORTY LIPOS in forward and rearward position to change the weight distribution.
Step 38 shows the parts to be assmebled to use 2S STANDARD LIPOS. To use SHORTY
batteries it is needed to pre-assemble two battery spacers as shown below to use them in
forward or rearward position.
