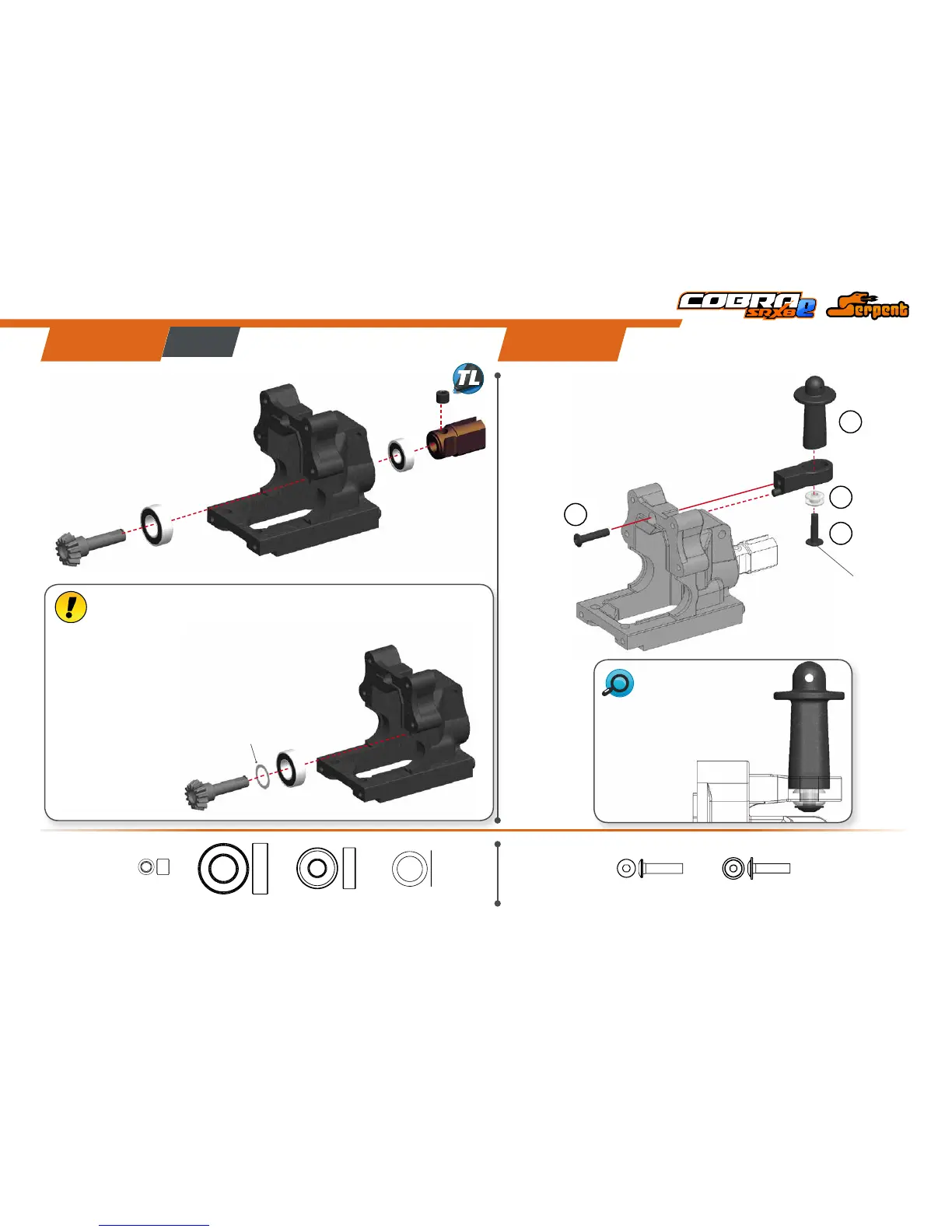

REaR aSSEmbly
STEp 11 STEp 12
Note the correct grommet position.
After building the differential with new gears, new differential case and bearings, the
diff may feel a little tight. The connected parts need at least an hour run-time to create
a perfect match. Attention: When you assemble the diff with too much initial play,
the gears will not run-in properly and may wear quickly. After 1 or 2 hours of running the car,
re-check the gear-mesh between the ring gear and the pinion. All
parts should have run-in properly now. You may add or remove
8x11x0.1 shims as needed.
8x16x5
8x11x0.1
5x13x4
M5x4
M3x14
M3x12
Flanged
1
2
2
3
8x11x0.1
8x16x5
5x13x4
M3x14
M3x12 Flanged
bag 1
M5x4
To Next Page
