Serpent F110 - Page 13

Page
25
A
18
Page
24
NOT INCLUDeD
1
2
3
4
M3X6
M3X6
M3X6
M2.5X8
M3X5

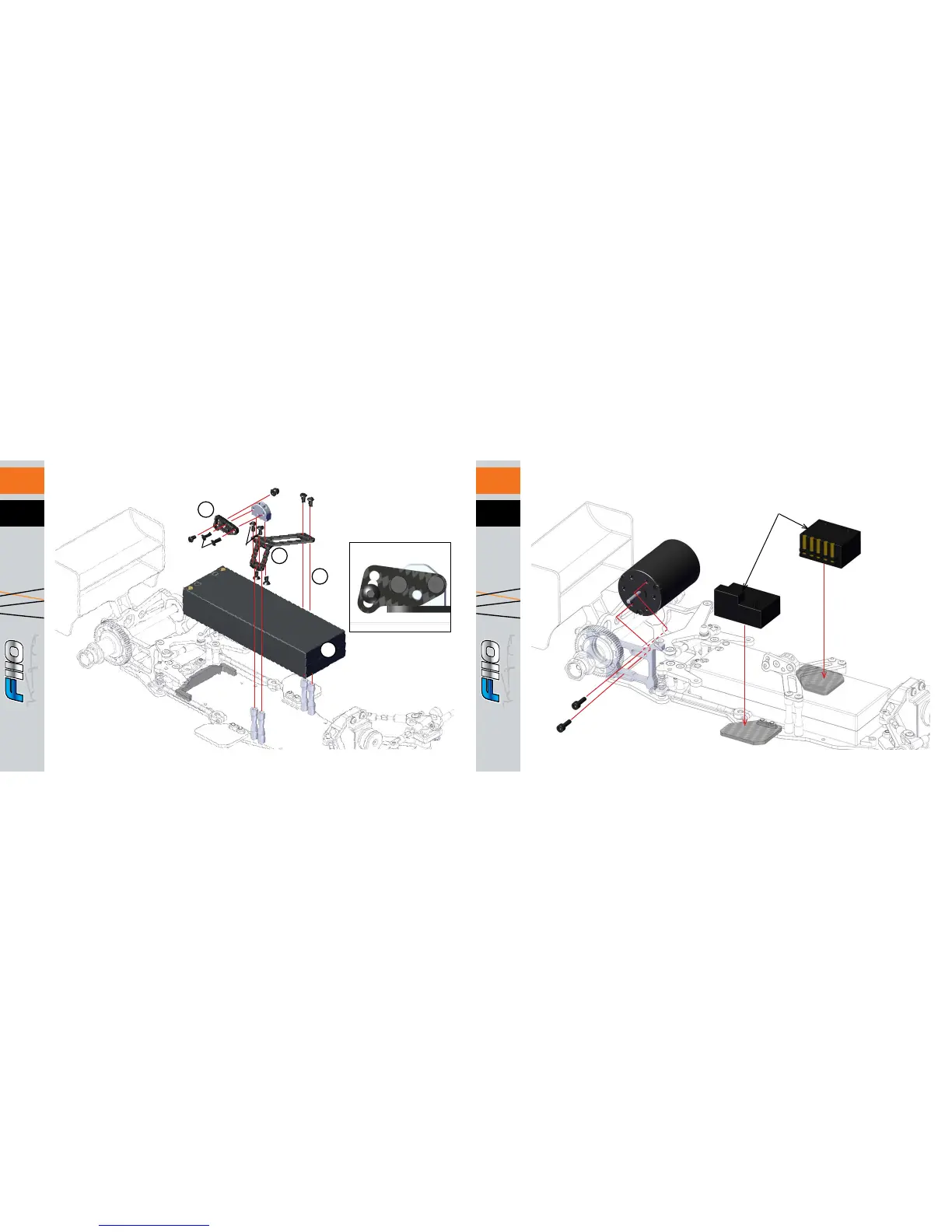

Note position of the shock
ball joint (basic setup)
19A
A
NOT
INCLUDeD
NOT
INCLUDeD
NOT
INCLUDeD
M3X10
Tip: Use double sided tape to mount the ESC and RX
to the sideplates.
Note: When using a
2S Standard Lipo the
ESC and Receiver-RX
are installed on the
sideplates as shown.
(Page 26 shows Shorty
Lipo set-up).
Electronics position with standard 2S Lipo
