Serpent Natrix 748 - RCM Shock Assembly; RCM Shock Assembly: Chassis Brace Mount; RCM Shock Assembly: Preparation, Filling, and Bleeding

Page
23
Use some
Locktite
to x the nut
Use some
oil during
assembly
Close the top
of the shock
Use some
oil during
assembly
11mm
Pull shockrod to
bottom position
before to ll the
shock body with
the supplied shock
absorber oil..
BLEEDING
Slowly move the
shockrod up and
down to let all
airbubles
escape.
After assembly ensure
you can push the piston
all the way in (top of
balljoint should hit the
shock-bottom). If not,
re-open the shock and
let some oil bleed out,
and repeat the steps.
Allow some ‘rebound’ on
the shockshaft, around
4mm is normal.

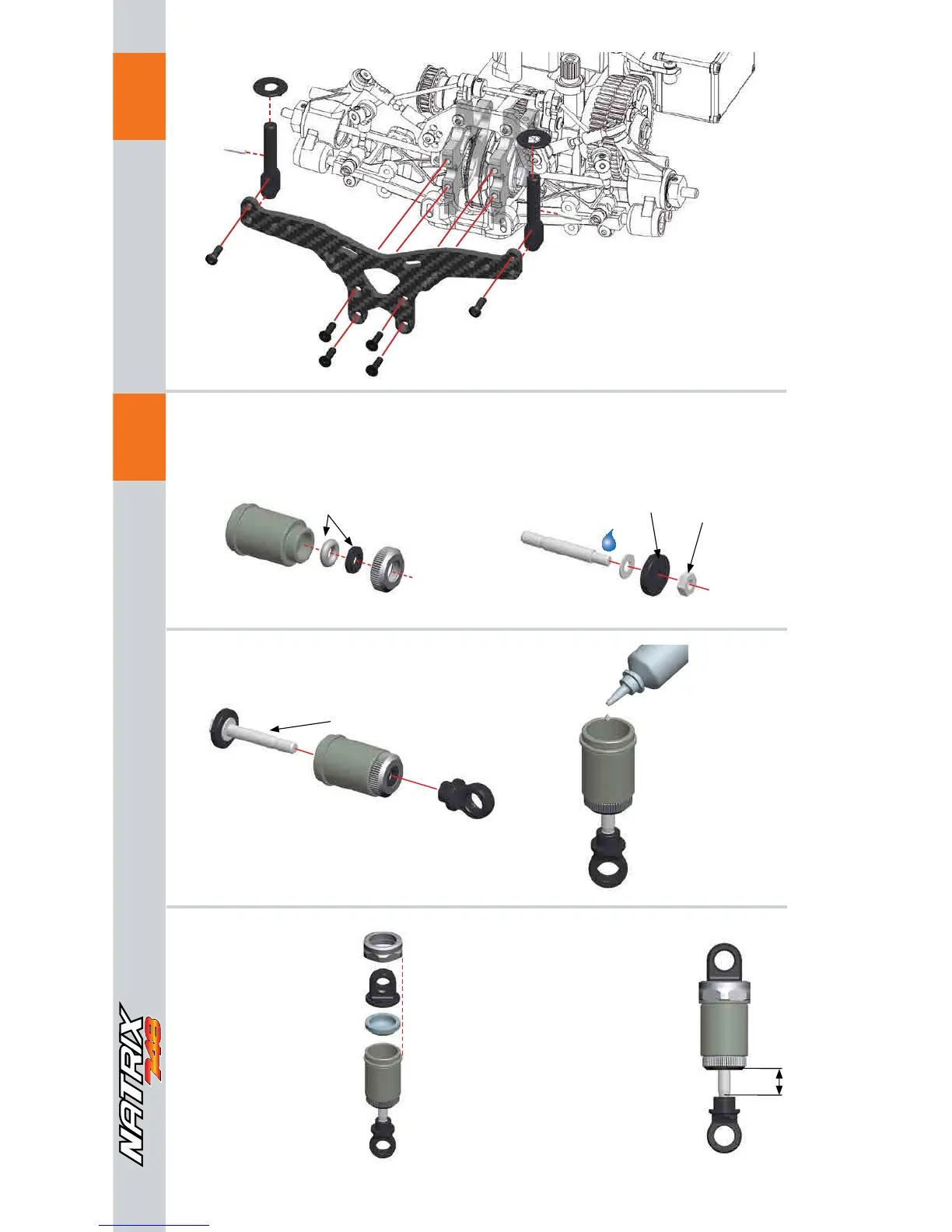

RCM SHOCK ASSEMBLY
STEP
51
STEP
50
51.1
51.2
51.3
51.4
Nut M2.5
2.5x6x0.5
Check the default
set-up sheet for
the correct piston
to use
Measure
fully
extended
51.5
51.6
M3x10
M3x10
M3x10
M2x10
M2x10
Bag
12
