Page
24
1
2

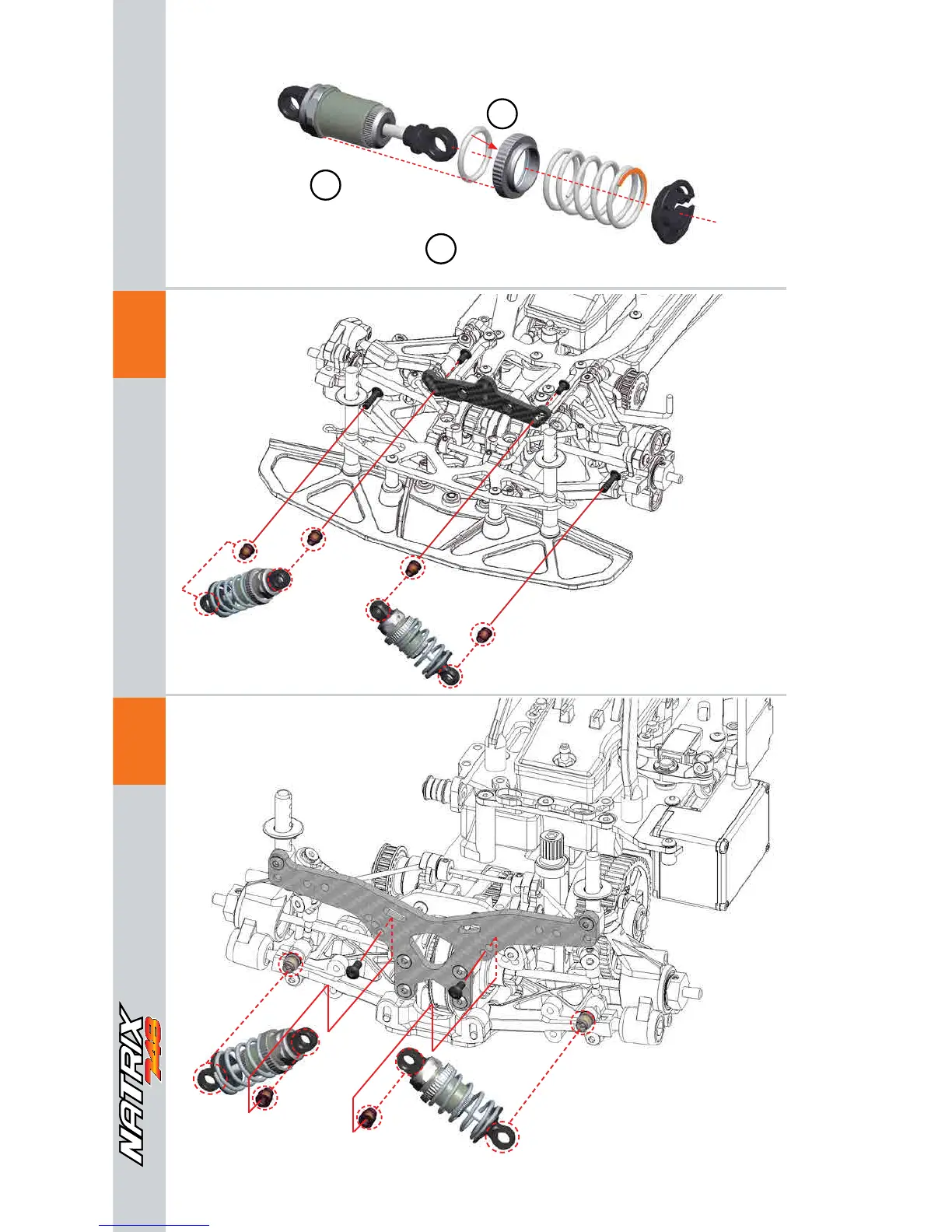

Insert the o-ring
inside the spring-
nut
Assemble the
spring-nut
51.7
STEP
52
STEP
53
M3x6
M3x6
M3x6
M3x6
Assemble the spring and
springcup to complete
the shock
3
