WOOD BOILER INSTRUCTIONS Page 14 Copyright © 2011 Seton Wood Boilers all rights reserved
The boiler must be placed on noncombustible floor solid concrete or masonry floor is preferable.
Observe the clearances to combustible materials.
The boiler must have its own flue. Do not Connect this unit to a chimney flue serving other appli-
ances.
Install exhaust pipe, elbows, and thimble as required, utilizing either a recently cleaned and inspected 8”
masonry chimney or an 8” I.D. class - A listed chimney.
THE ONLY APPROVED CHIMNEY CAP IS THE CHINA HAT TYPE OF CHIMNEY CAP.
Use 8” round stove pipe. Secure each pipe section and/or elbow joint with three (3) sheet metal screws
per joint to firmly hold the sections together.
Re-check clearances from the boiler, connector stove pipe, and corner clearances using the illustrations in
your local building codes or fire protection ordinances.
DO NOT install this boiler in a mobile home or trailer.
The clearances provided are minimum dimensions determined by the manufacturer’s testing facility. In-
stallation of this boiler must comply with the latest edition of NFPA 211 for reduced clearances and/or
your local building code rulings (use whichever minimum dimensions are LARGEST).

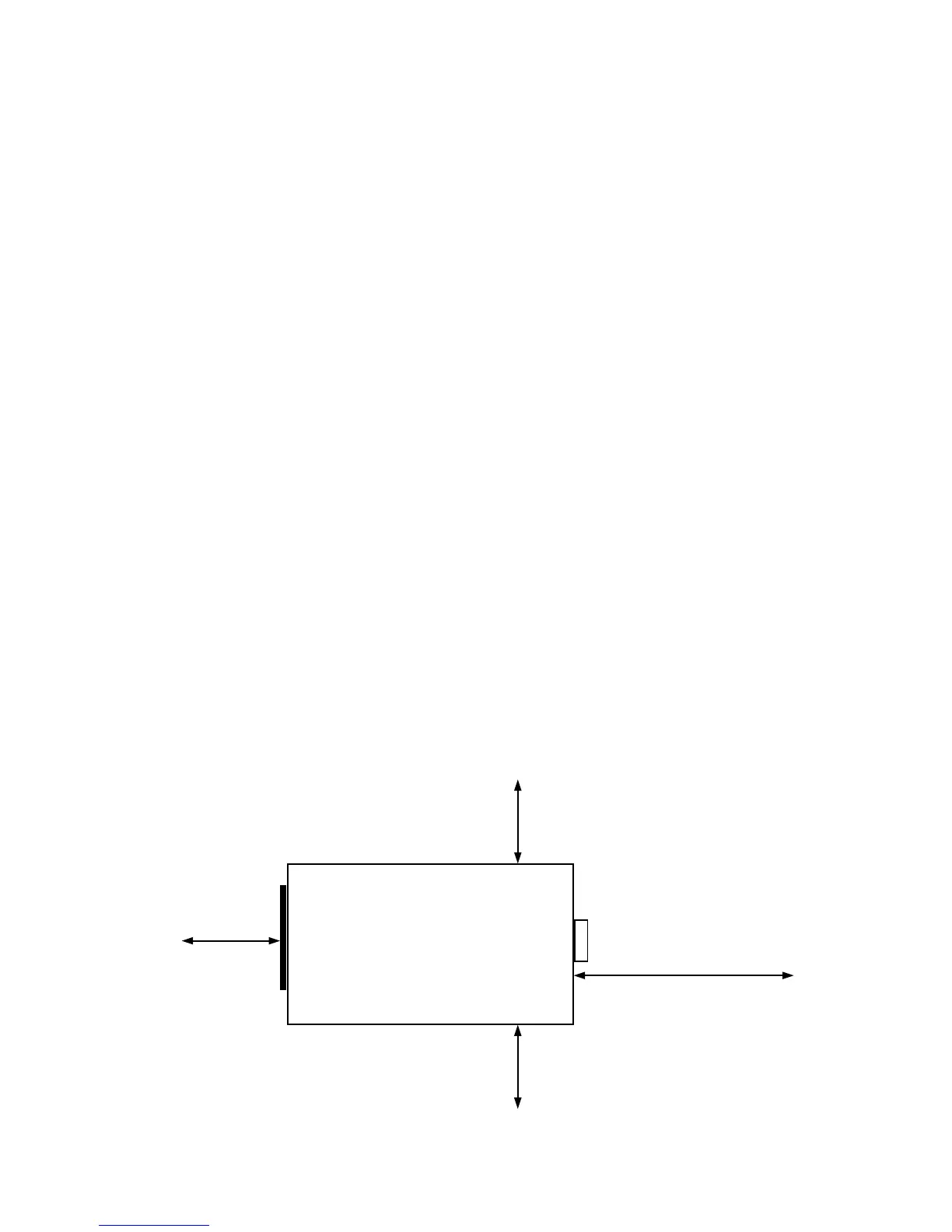

BOILER LOCATION
12” TO A
COMBUSTIBLE WALL
12” TO A
COMBUSTIBLE WALL
36” TO A
COMBUSTIBLE WALL
