Seton W-90E - Wiring Diagram

WOOD BOILER INSTRUCTIONS Page 27 Copyright © 2011 Seton Wood Boilers all rights reserved

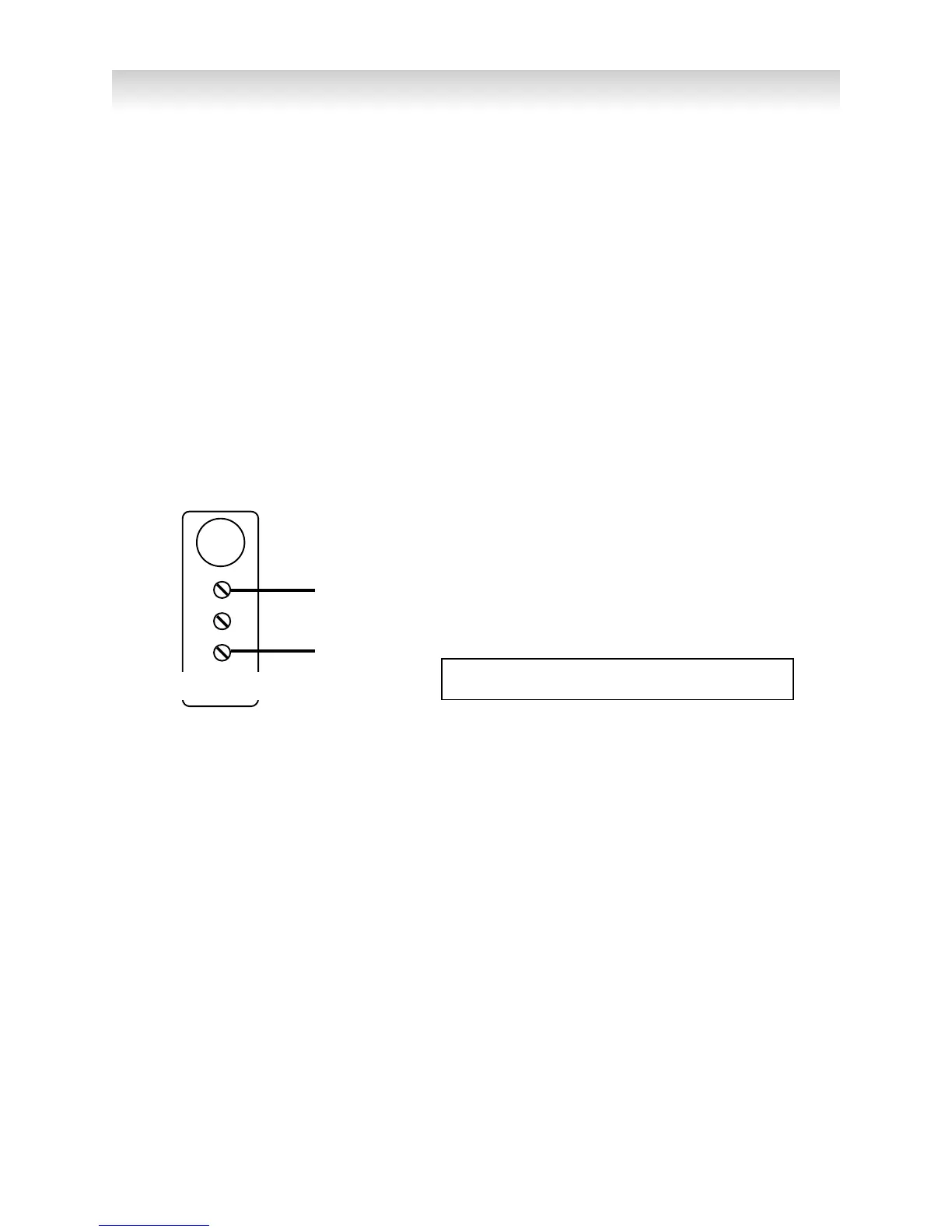

WIRING DIAGRAM AQUASTAT OPERATION
PUMP AQUASTAT CONTROL
R
B
W
OVER TEMP
120°
CLOSE ON RISE OPERATION
LITTLE WHITE DIAL IN AQUASTAT
SHOULD BE SET AT 10° DIFFERENTIAL
THIS NORMALLY LOW VOLTAGE AND BY PASSES THE
THERMOSTAT ON YOUR LARGEST HEATING ZONE.
THE SETON BOILER REQUIRES SOME MEANS OF KEEPING THE PUMP FROM CIRCULATING WA-
TER WHEN THERE IS NO HEAT OR FIRE IN THE BOILER. THIS KEEPS THE BOILER WARM AND
HELPS TO PREVENT CONDENSATION BUILD IN THE BOILER AND ALSO KEEPS HEAT FROM THE
BACKUP BOILER FROM DISSIPATING ITS HEAT THROUGH THE WOOD BOILER.
THIS AQUASTAT SHOULD BE LOCATED CLOSE THE NATURAL CONVECTION INLET FROM THE
WOOD BOILER ON THE MANIFOLD.
