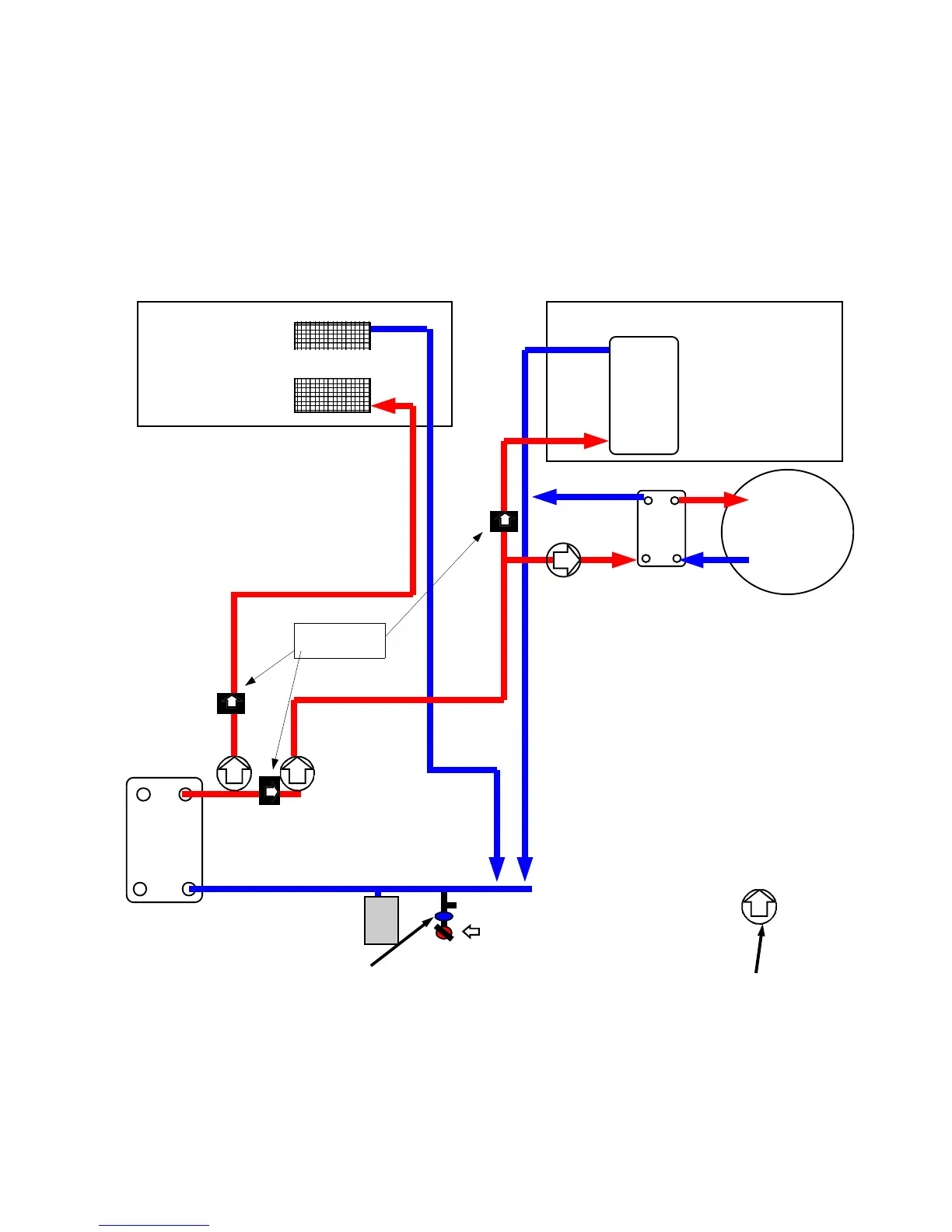

BOILER DESCRIPTION & INSTALLATION OPTIONS
Circulating Pump
SYMBOL
HOUSE SHOP
POOL
BOILER
FAN COIL
PUMP FEEDING SHOP SHOULD BE
WIRED TO PUMP ON WOOD BOILER.
THERMOSTAT IN SHOP WILL TURN
FAN COIL FAN ON.
AQUASTAT ON SUPPLY TO FAN
COIL WILL TURN FAN ON AT
200 DEGREES.
PUMP FEEDING HOUSE SHOULD BE
WIRED TO PUMP ON WOOD BOILER.
HEATING IN HOUSE WILL DRAW
FROM GAS BOILER.
Check valve
EXPANSION
TANK
12# REGULATOR
FILL VALVE
BALL VALVE
