Seton W-90E - Page 35

WOOD BOILER INSTRUCTIONS Page 35 Copyright © 2011 Seton Wood Boilers all rights reserved
RETURN

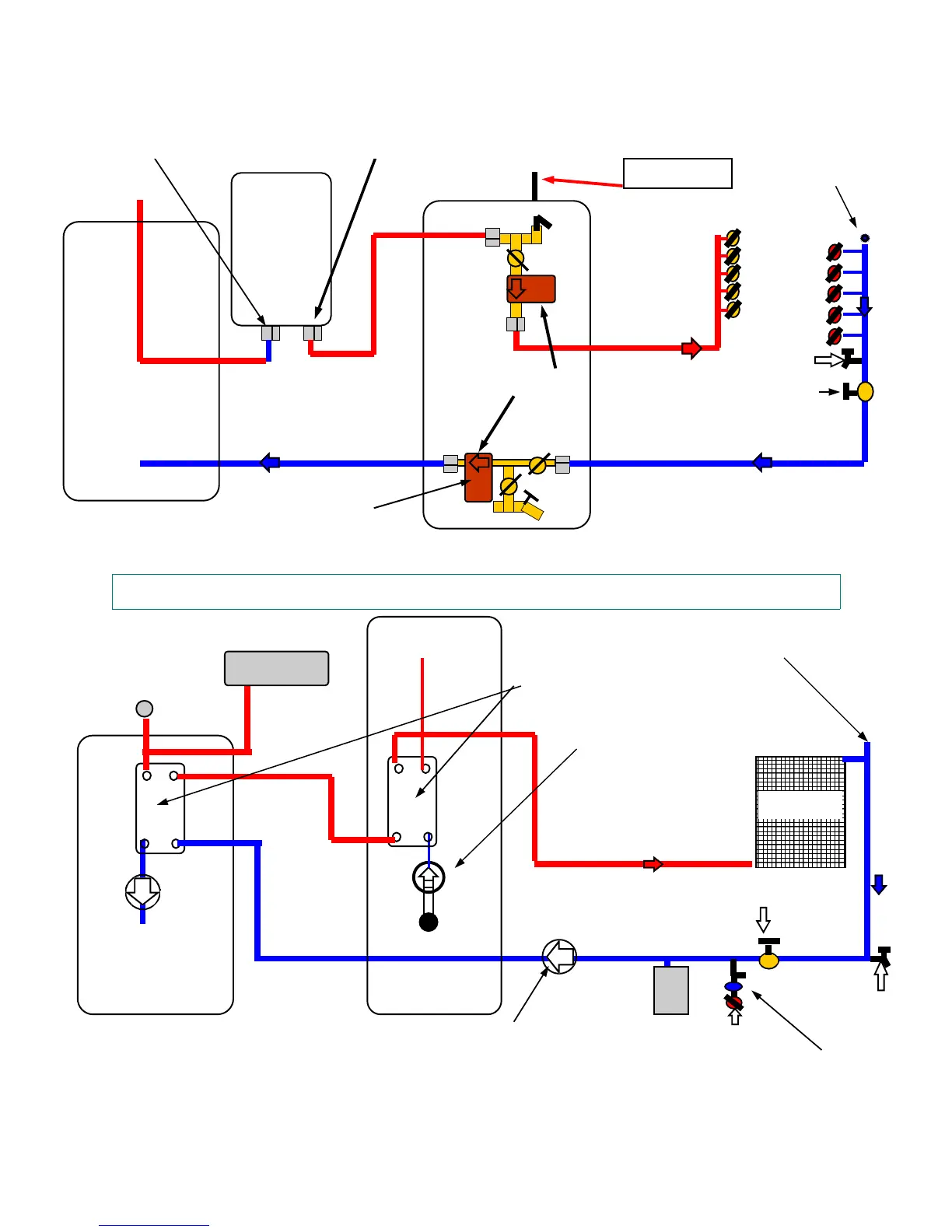

A open boiler system with a closed forced air system plus domestic water heating
WATER
HEATER
Circulating pump
SETON
BOILER
SMALL
BRONZE
CIRCULATING PUMP
HEAT
EXCHANGER
DRAIN
VALVE
FAN COIL
INSTANTANEOUS
WATER HEATER
Circulating pump
STORAGE TANK
FLOAT VENT
TACO 0011
FLOAT VENT
SETON
BOILER
RADIANT HEAT SYSTEM
RETURN SUPPLY
PLUMBING WATER HEATER & RADIANT
SUPPLY
SUPPLY
RETURN
EXPANSION
TANK
EXPANSION
TANK
12# REGULATOR
FILL VALVE
BALL VALVE
FLOAT VENT
PURGE VALVE
GATE VALVE
