WOOD BOILER INSTRUCTIONS Page 37 Copyright © 2011 Seton Wood Boilers all rights reserved
HIGH VOLT STAT
HIGH VOLT STAT
HIGH VOLT STAT
HIGH VOLT STAT

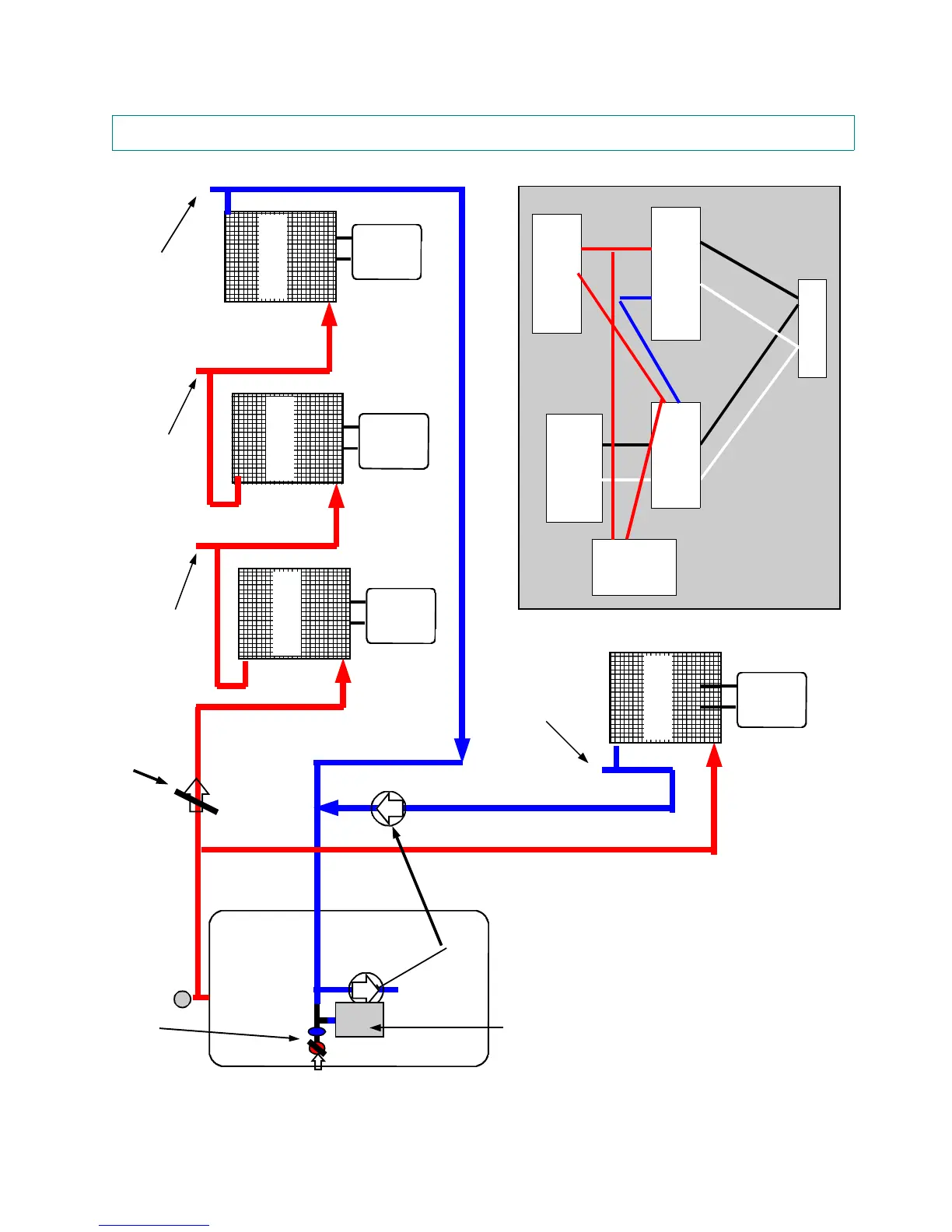

A closed boiler system with a closed forced air system and extra fan units
Circulating pump
SETON
BOILER
CHECK VALVE
FAN COIL
EXPANSION TANK
12# REGULATOR
FILL VALVE
RETURN
AIR
VENT
FURNACE
MOTOR
LOW VOLT
STAT
LOW VOLT
TRANSFORMER
120 VOLT
LOW VOLT
RELAY
200° AQUA STAT
FAN COIL
AIR
VENT
FAN COIL
AIR
VENT
FAN COIL
AIR
VENT
PLUMBING BOILER WITH FAN UNITS
