WOOD BOILER INSTRUCTIONS Page 40 Copyright © 2011 Seton Wood Boilers all rights reserved
HEATING LOOPS
HEATING LOOPS
EXISTING
BOILER
CIRCULATING PUMP

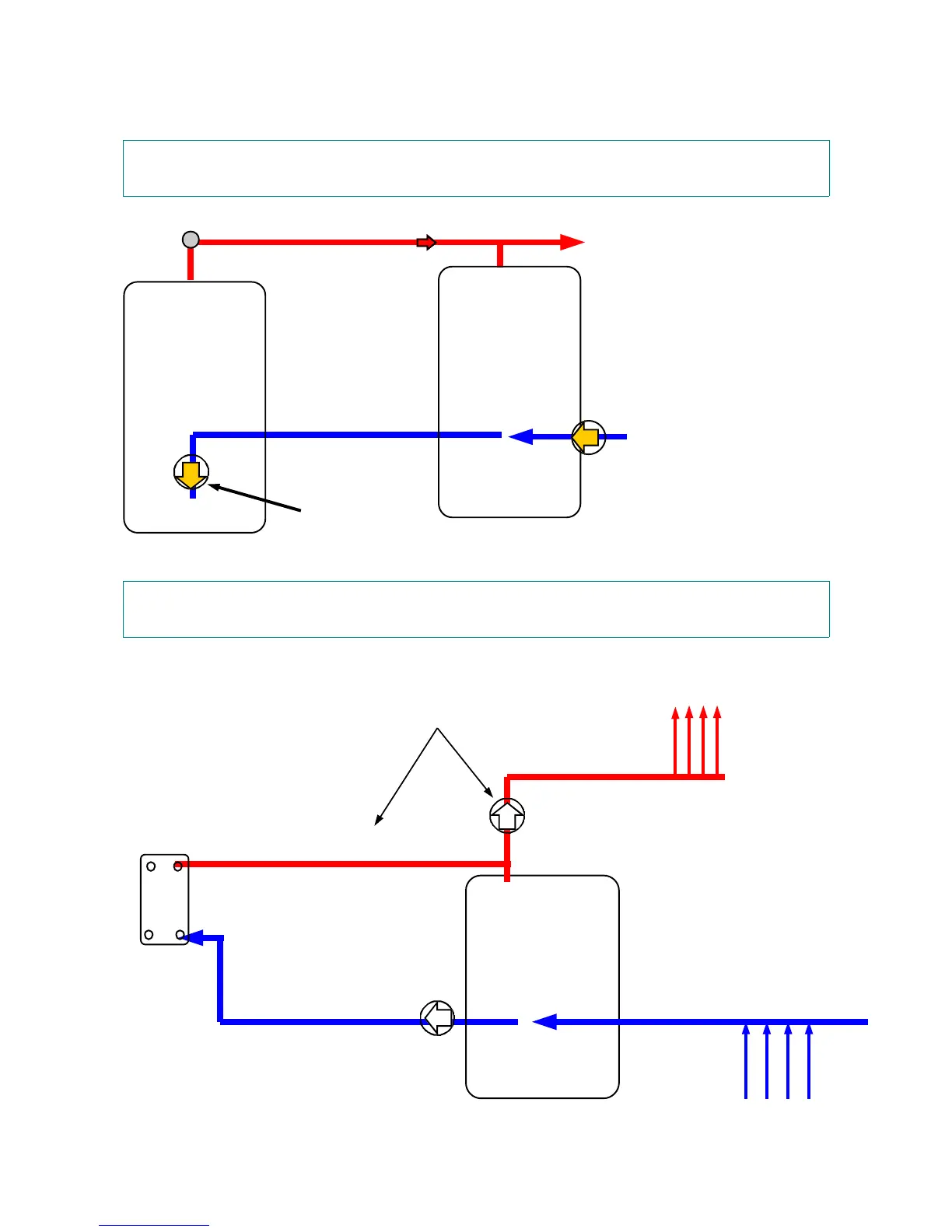

Hooking the Seton Boiler to an existing boiler.
With the heat exchanger.
PLUMBING INTO ANOTHER BOILER
Connecting the Seton Boiler to an existing boiler without the heat exchanger.
Circulating pump
SETON
BOILER
EXISTING
BOILER
SUPPLY
RETURN
TO HEATING SYSTEM
FROM HEATING SYSTEM
