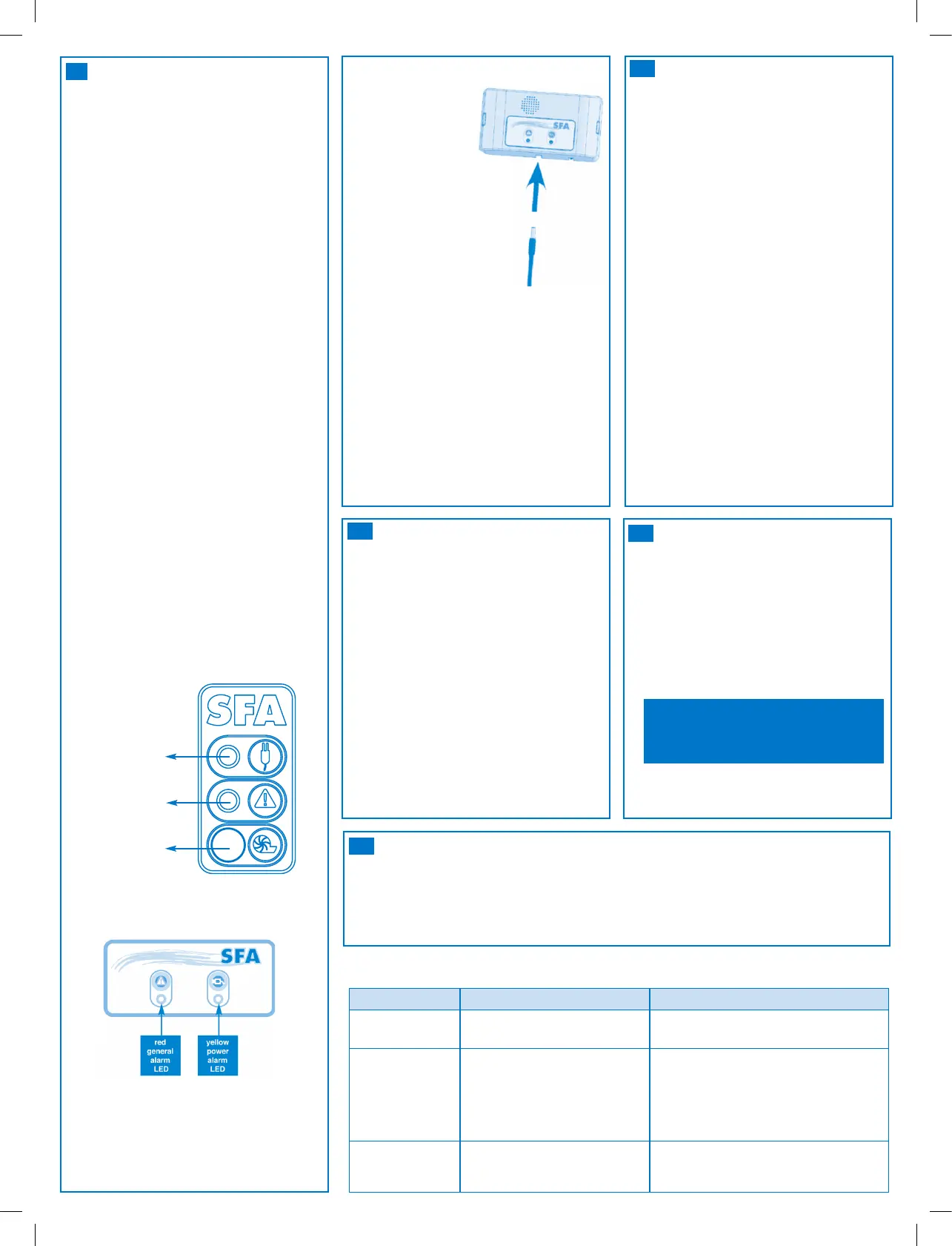

5
CONFORMITY WITH
STANDARDS
• SANICUBIC
®
1 is eligible to bear
the CSA mark shown with adjacent
indicators “C” and “US”. The “C” and
“US” indicators adjacent to the CSA
mark signify that the product has been
tested according to the applicable
CSA (CAN) and ANSI/UL standards
for use in Canada and the USA.
This includes products eligible
bear the designation NTRL. NTRL
(Nationally Recognized Testing
Laboratory) is a designation awarded
by the American Occupational Safety
and Health Administration (OSHA) to
laboratories authorized to award the
certification according to American
standards.
CONNECTING
THE ALARM BOX
Connect the alarm
cable directly to the
control panel. The
cable can extend
for 15 Ft for ease of
installation.
Connection of the alarm
unit to the device:
Connect the alarm cable
directly to the unit.
1/ The red general
alarm LED reproduces
the operation of the
corresponding LED on the SANICUBIC
®
control panel. The alarm unit sounds as
long as the fault is present. To stop the
alarm, press the reset (*) button on the
device’s keypad or the button under the
alarm unit.
2/ The yellow «mains» LED indicates the
power supply status of the alarm unit-
steadily glowing light = live SANICUBIC
®
connected to the mains supply.
- flashing=power failure on the
SANICUBIC
®
6
COMMISSIONING
1 - Once the plumbing and electrical
connections have been made, check
that the connections are watertight
by letting water flow successively
through each inlet used. Make sure
that the unit is operating correctly by
carrying out at least two start cycles
with water to test the system.
2 - WARNING!
Do not operate the motor in
override status (by pressing the
pushbutton on the control box)
until the pump have been filled with
water. Operation without water
damages the grinding system.
3 - This device is not designed for
persons (including children) with
limited physical, sensory or mental
abilities, or those with minimal
experience and knowledge, unless
they are monitored and are given
the necessary instructions for
using the device, with the help of a
person responsible for their safety.
Monitor children and make sure
they do not play with the device.
7
USE
1- The SANICUBIC
®
1 unit is designed
to drain off household waste water.
Any other use will invalidate the
guarantee. The unit is able to
handle the accidental flushing of
sanitary napkins such as condoms,
hygiene articles, etc. The disposal
of oils, solvents, acids or any other
potentially corrosive or explosive
liquids, etc, is not allowed.
2- WARNING: In the event of a power
failure, stop draining any water
from the equipment connected to
the SANICUBIC
®
1 unit.
3- Do not install or use the unit in a
zone where there is risk of explosion.
8
MAINTENANCE
A visual check of the lift station must be made once a month to make sure it is
operating correctly, and the installation must be inspected regularly (once a year) by
a qualified person. Meanwhile if encounter technical problems, please ask our
after-sales service for advice. If the power supply cable of the unit is damaged, it
must be replaced by the manufacturer or its after-sales service to avoid all danger.
4
OPERATION OF THE ALARM
1/ General alarms:
Level alarm:
If the water level inside the device is
abnormally high: the buzzer is triggered
+ the red alarm LED lights up + the
motor starts-up. If this LED flashes red,
it indicates a detection problem for the
normal water level (Long dip tube).
Temporary alarm:
If the motor runs for more than 1 minute:
the buzzer is triggered + the red alarm
LED lights up.
Mains alarm:
In case of power failure (or when
unplugging the device): the buzzer is
triggered + the red alarm LED lights up +
the yellow mains LED flashes.
2/ General alarm reset:
If the problem that triggered an alarm
above disappears, the buzzer stops,
but the red alarm LED remains lit as
a reminder of the fact that the system
encountered a problem.
The keypad key will stop the buzzer in
all cases, but it will only turn off the red
LED if the problem that triggered the
alarm has been resolved. Alarms from the
remote box also remain active until the
problem has been solved. This prevents
the system from being «abandoned» by
default.
OPERATION OF THE SANICUBIC
®
1
REMOTE CONTROL BOX
EXTERNAL WIRED ALARM
REMOTE ALARM MODULE
The external alarm box of the
SANICUBIC
®
1 does not require an
independent power supply. It is powered
via the circuit board of the SANICUBIC
®
1.
In the case of a power outage, a battery
takes over.
FAULT DETECTED POSSIBLE CAUSES ACTION TO BE TAKEN
Siren + flashing red
general alarm LED
• Water level detection system faulty • Consult the SFA customer services
Siren + steady red
general alarm LED
• Blocked vent pipe
• The device has encountered the
following problem: blocked pipe,
pump(s) blocked
• The device has encountered a power
failure
• Check that air flows freely in both directions in
the vent pipe
• Press the manual start button to reset the device
(alarm off )
• Consult SFA customer services
Siren + general alarm
LED + flashing yellow
mains LED
• Mains cut • To stop the siren, press on the Force Start button
• Check the electrical system
• Consult the SFA customer services
Yellow LED
Main supply
Red LED
alarm
Manual
activation
ALARM ON THE SANICUBIC
®
1
