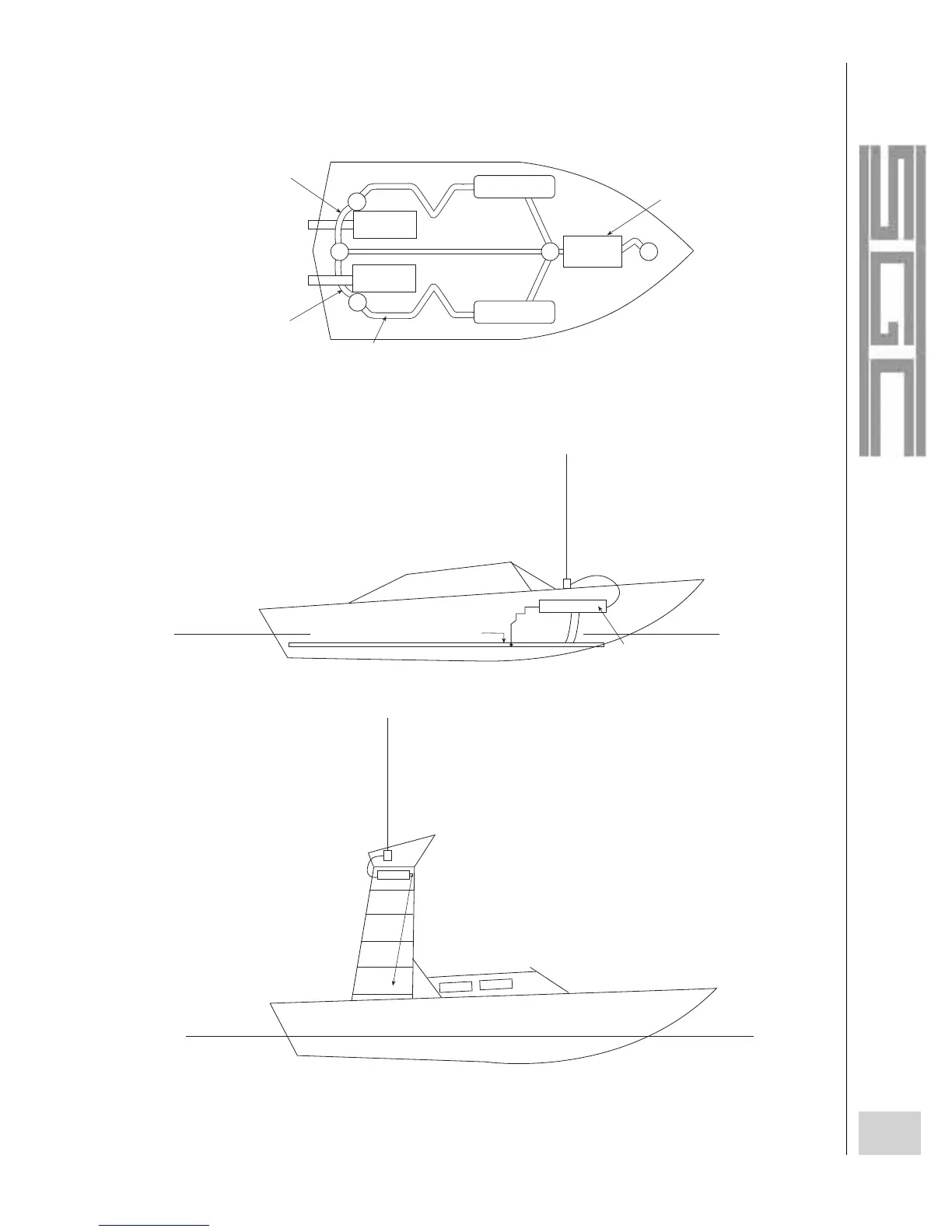

FIBERGLASS HULL SPEEDBOAT
ENGINE
ENGINE
COUPLER
BOND METAL TANKS
WITH FOIL
GROUND
BONDING
GROUND
BONDING
GROUND
FOIL
2 - 3" WIDE
BOND METAL TANKS
WITH FOIL
POWER BOAT
COPPER FOIL COUNTERPOISE
COPPER
FOIL
SG – 230
COUPLER
SG – 303 9FT. WHIP
OR
SG – 203 28FT. WHIP
ANTENNA
ANTENNA
SG – 230
COUPLER
METAL
FISH
TOWER
SMALL BOAT WITH
FISHING TOWER
