SGS GPBS520 - Parts Identification; Engine Parts Diagram; Engine Parts List

PAGE 30

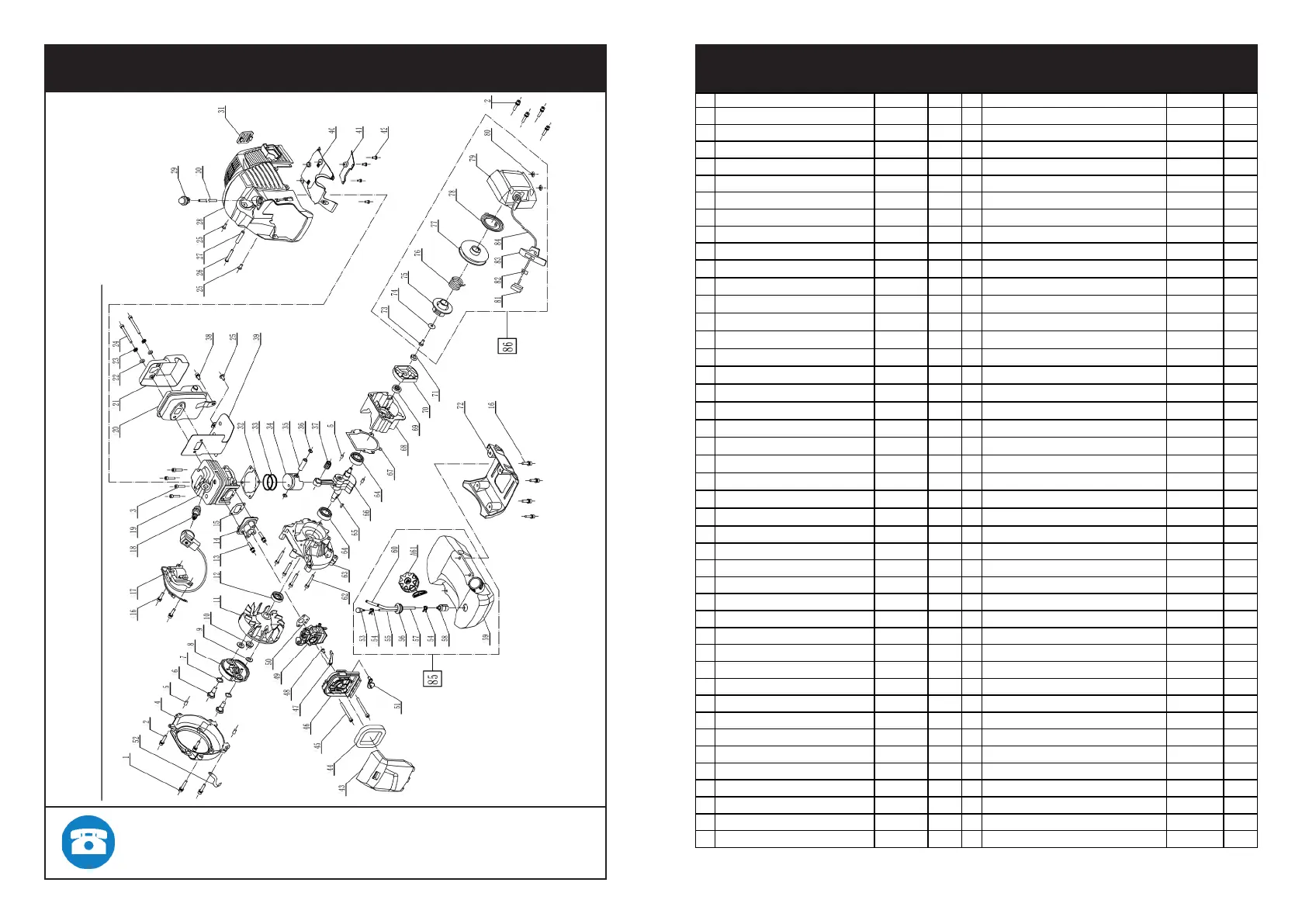

ENGINE PARTS DIAGRAM ENGINE PARTS LIST
No Part name Code Qty No Part name Code Qty
1 Bolt M5x30 904046 1 44 Filter element 904253 1
2 Bolt M5x25 901958 7 45 Bolt M5x50 904254 2
3 Bolt M5x20 903960 4 46 Body of air lter 904255 1
4 Side cover 904213 1 47 Choke lever 904256 1
5 Pin ø5x10 904214 4 48 Tapping screw St2.9x8 904257 1
6 Bolt M8x24 904215 2 49 Carburetor 904258 1
7 Washer 10x16x0.5 904216 2 50 Gasket for carburetor 904259 1
8 Clutch 904217 1 51 Choke 904260 1
9 Flat washer 8.5x16x1.5 904218 2 52 Cable clip 904261 1
10 Nut M8 901995 1 53 Balancer 904262 1
11 Flywheel 904220 1 54 Pin 904263 2
12 Oil seal 15x30x7 904221 1 55 Air pipe 2.5x50 904264 1
13 Bolt M5x28 904222 2 56 Fule pipe seat 904265 1
14 Intake pipe 904223 1 57 Fuel pipe 904266 1
15 Gasket for intake pipe 904224 1 58 Fuel lter 904267 1
16 Bolt M5x28 904222 6 59 Fuel tank 904268 1
17 Ignion coil 904226 1 60 Fule return pipe 904269 1
18 Spark plug 904227 1 61 Tank cap 904270 1
19 Cylinder 904228 1 62 Bolt M5x30 904046 4
20 Muer 904229 1 63 Le Crankcase 904271 1
21 Heat Mat muer 904230 1 64 Bearing 6202 904004 2
22 Flat washer 6 904231 2 65 Key 3x5x13 904272 1
23 Snap washer 6 904232 2 66 Cranksha 904273 1
24 Bolt M6x60 904233 2 67 Gasket for craksha 904274 1
25 Screw M4x12 902021 3 68 Right crancase 904275 1
26 Screw M5x35 904235 1 69 Oil Seal 12x22x7 904276 1
27 Sleeve 5.4x6x28 904236 1 70 Pulley 904277 1
28 Cylinder cover 904237 1 71 Nut M8 901995 1
29 Primier bulb 904238 1 72 Tank Branket 904278 1
30 Fuel pipe 904239 1 73 Screw M5x12 902018 1
31 Plate cover 904240 1 74 Flat Washer 5.5x16x1.5 904279 1
32 Gasket for cylinder 904241 1 75 Ratchet starter 904280 1
33 Piston ring 904242 2 76 Spring starter 904281 1
34 Piston 904243 1 77 Wheel starter 904282 1
35 Piston pin 904244 1 78 Coil spring starter 904283 1
36 Snap ring for piston 904245 2 79 Cover starter 904284 1
37 Needle bearing 904246 1 80 Square Screw M5 904285 2
38 Bolt M5x12 904074 1 81 Rope Knob starter 904286 1
39 Gasket for muer 904248 1 82 Washer starter 904287 1
40 Inner cover 904249 1 83 Knob 904288 1
41 Inner cover cap 904250 1 84 Knob starter 904289 1
42 Tapping screw ST4.2x10 904251 4 85 Knob Fuel tank assembly 904290 1
43 Cover for air lter 904252 1 86 Recoil starter assembly 904291 1
