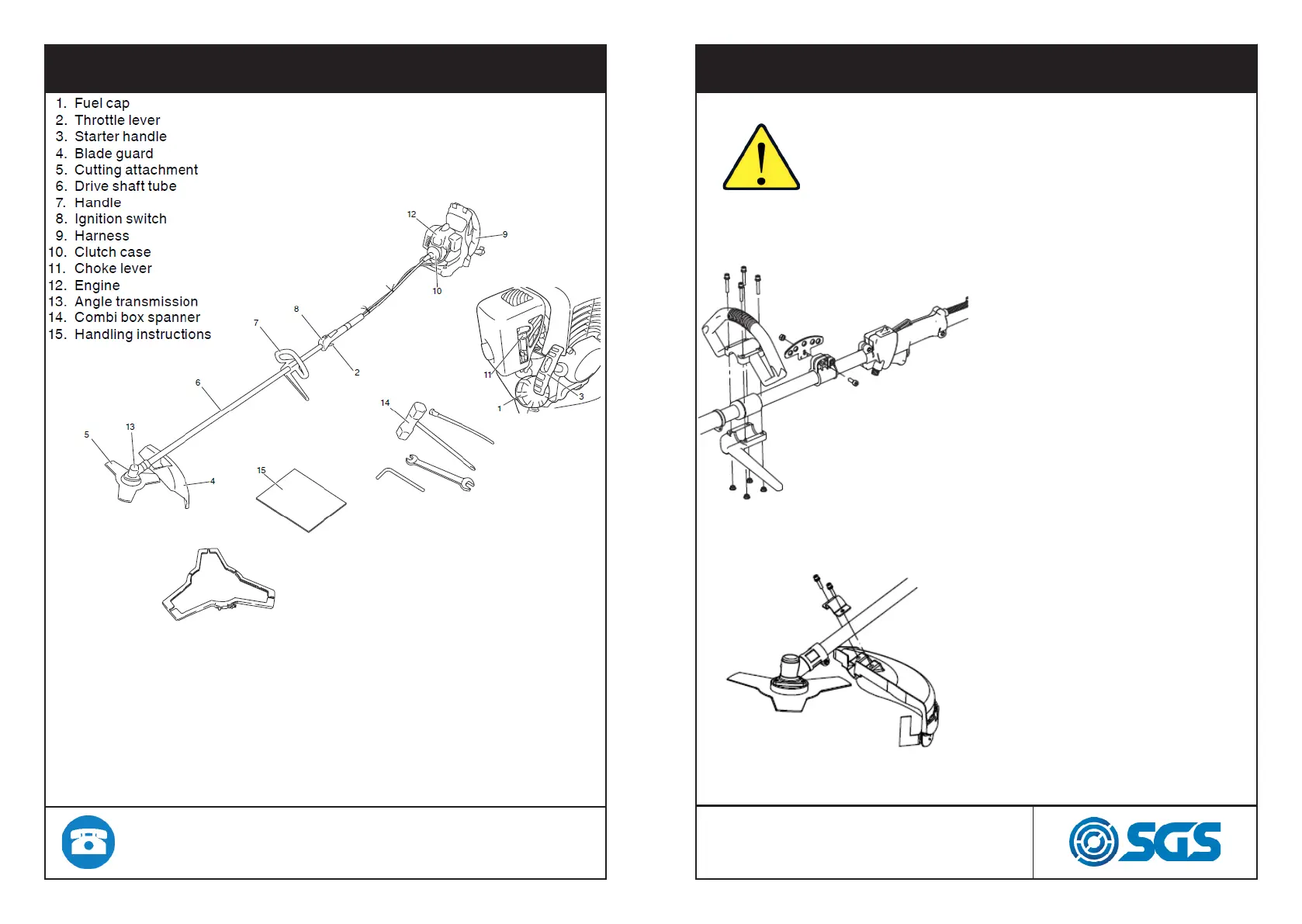

COMPONENTS LOCATION DIAGRAM
Installing the handle
• Set the upper part and lower part
of the handle at the right postion.
• Tighten the loop handle with the
screw and nut.
• Insert the nuts into the
countersunk holes in the lower
handle and secure the top part of
the handle with the bolts supplied.
Put the cutting attachment guard
on the gearbox, attach it with the
2 screws and bracket provided.
ASSEMBLY
Make sure unit is assembled correctly as shown
in this manual. Be sure to follow all the assembly
instructions.
Installing the cutting attachment guard
