SGS SC50H - Specification; Main Components; List of Goods

PAGE 3
PAGE 2

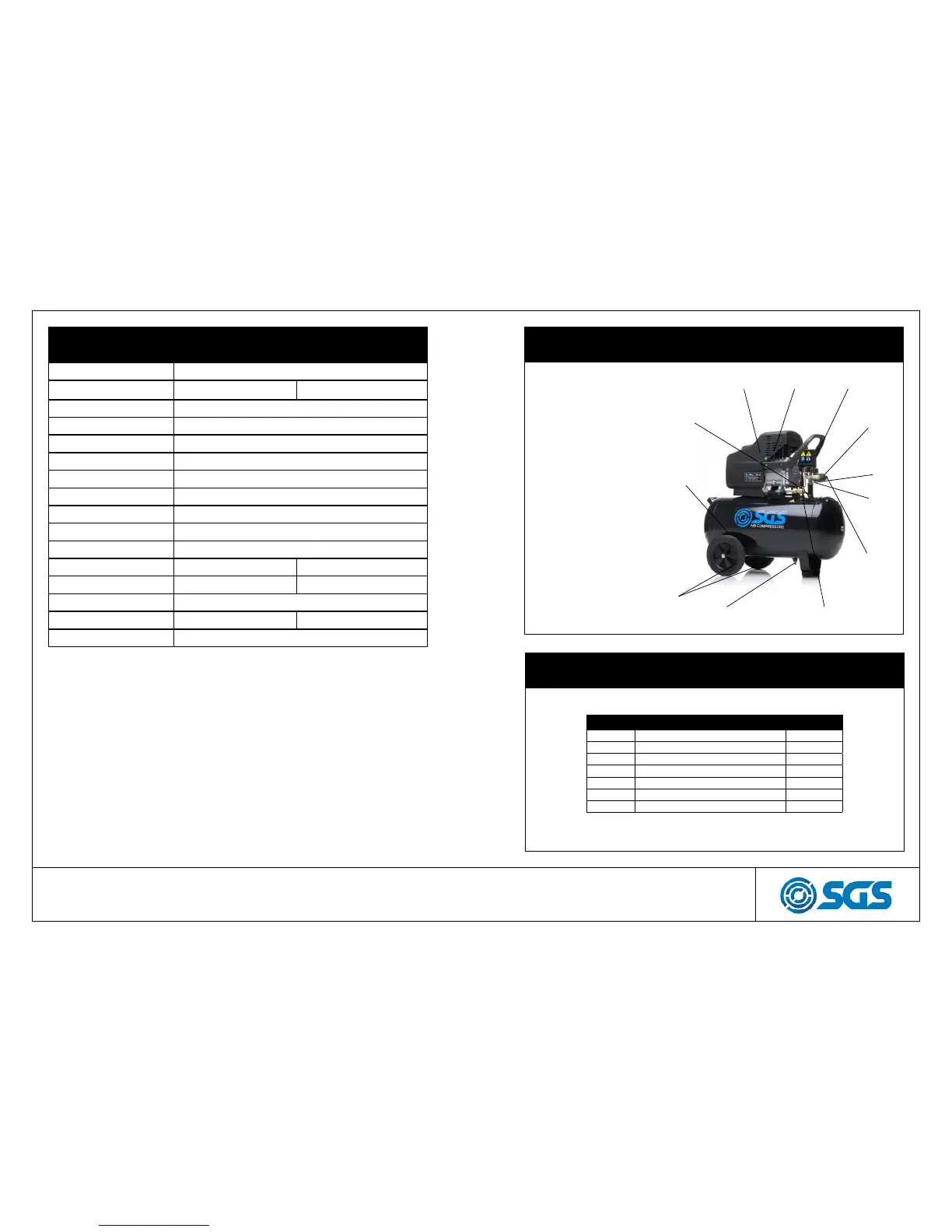

MAIN COMPONENTS
1. Main compressor
2. Pressure switch
3. Outlet Valve
4. Regulating Valve
5. Pressure gauge
6. One-way Valve
7. Drain cock
8. Wheels
9. Discharge pipe
10. Air tank resevoir
11. Safety valve
12. Fan cover
SPECIFICATION
LIST OF GOODS
ITEM LIST OF GOODS QTY
1 Air Compressor 1
2 Air Filter 1
3 Breather Pipe 1
4 Wheel 2
5 Wheel Axis 2
6 Rubber Gasket 1 or 2
7 Instruction Manual 1
ITEM DATA
Model SC24H SC50H
Power 1.5 kW / 2.5 HP
Voltage 230 V
Frequency 50 Hz
Motor Poles 2 P
Rated Speed 2850 rpm
Current 7.5 A
Delivery 9.6 CFM
Discharge Pressure 115 PSI / 0.8 MPa
Restart Pressure 70 PSI / 0.5 MPa
Tank Capacity 24 L 50 L
Dimensions
600x290x645 mm 770x330x730 mm
Air Outlet Size 1/4”
Net Weight 30 kg 38 kg
Noise Information LWA 97 dB
