Shark BR 97-723 • REV. 11/06
OPERATOR’S MANUAL
PRESSURE WASHER
6

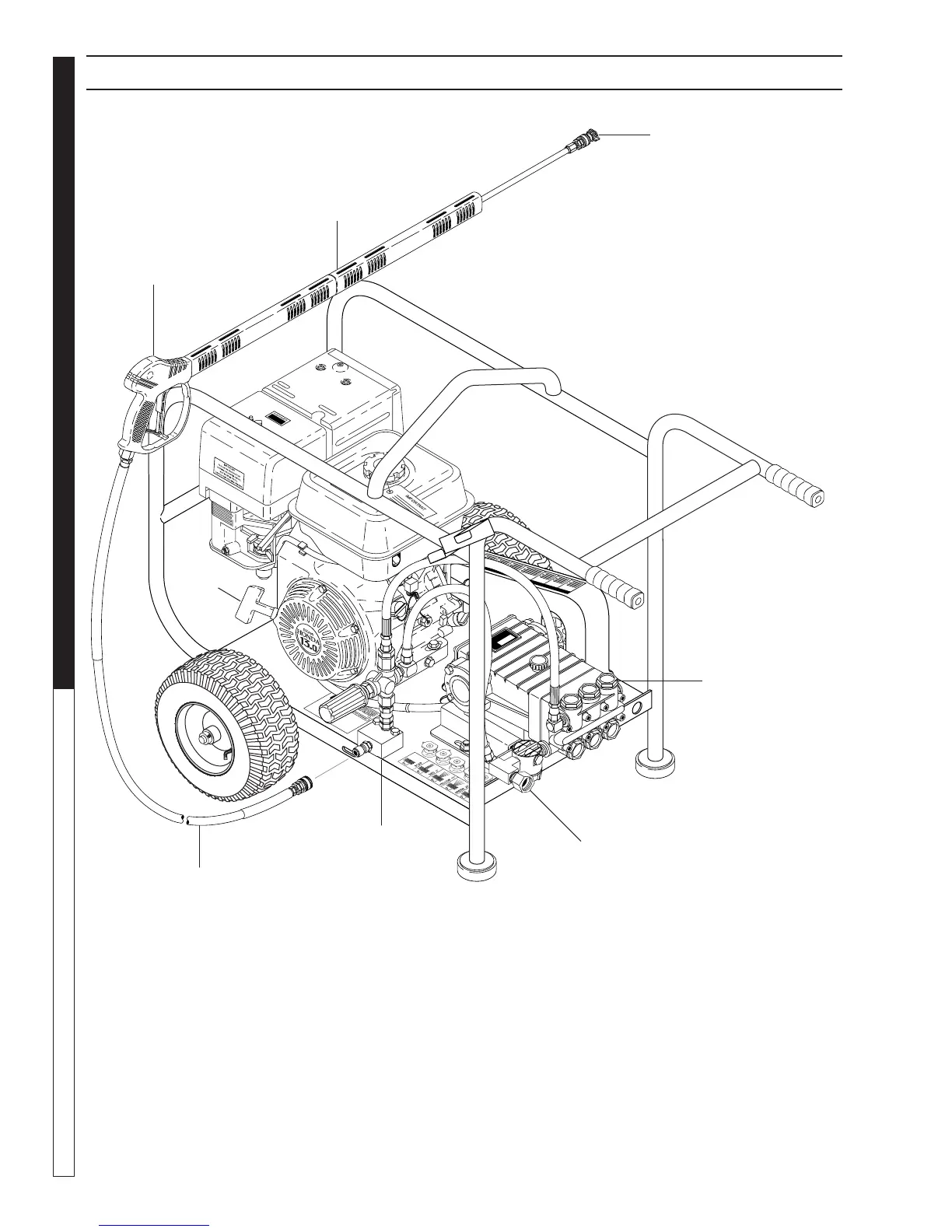

COMPONENT IDENTIFICATION — SMALL MODELS
Pump — Develops high pressure.
Starter Grip— Used for starting the engine manually.
Spray Gun — Controls the application of water and
detergent onto cleaning surface with trigger device.
Includes safety latch.
Detergent Injector — Allows you to siphon and mix
detergents (not shown).
Wand — Must be connected to the spray gun.
High Pressure Hose — Connect one end to water
pump discharge nipple and the other end to spray
gun.
Note: If trigger on spray gun is released for more
than 2 minutes, water will leak from valve. Warm
water will discharge from pump protector onto floor.
This system prevents internal pump damage.
Spray Gun
Wand
High Pressure
Hose
Water Inlet
High Pressure
Discharge
Nozzle
Starter
Grip
Pump
