Xpert HD-DD-PD-DA-RG • 8.780-000.0 • Rev. 07/13
PRESSURE WASHER
SERVICE MANUAL
10

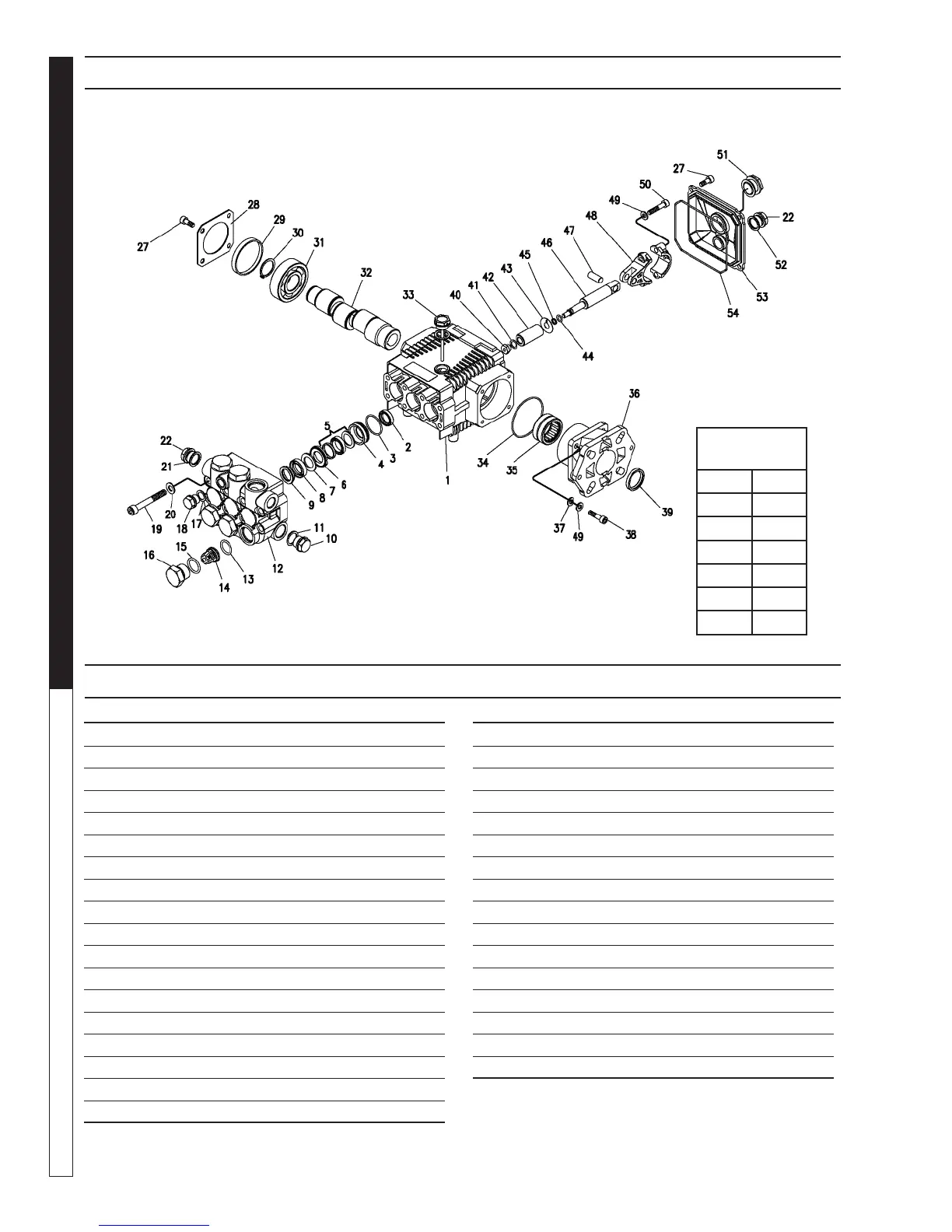

G.1 SERIES PUMP w/3/4" HOLLOW SHAFT EXPLODED VIEW
G.1 SERIES PUMP EXPLODED VIEW PARTS LIST
ITEM PART NO. DESCRIPTION QTY
1 9.803-938.0 Crankcase 1
2*
See Kit Below
Plunger Oil Seal 3
3*
See Kit Below
O-Ring Ø1.78 x 28.30 3
4*
See Kit Below
Pressure Ring, 15mm 3
5*
See Kit Below
U-Seal, 15mm 3
6*
See Kit Below
Intermediate Ring 15mm 3
7*
See Kit Below
Backup Ring 15mm 3
8*
See Kit Below
U-Seal, 15mm 3
9*
See Kit Below
Support Ring, 15mm 3
10 9.802-926.0 Brass Plug, 1/2" 1
11 9.803-199.0 Copper Washer 1/2" 1
12 9.803-946.0 Manifold Housing 1
13*
9.803-947.0
O-Ring Ø1.78 x 15.54 6
14*
See Kit Below
Valve Assembly 6
15*
9.803-948.0
O-Ring Ø2.62 x 18.77 6
16 9.803-949.0 Valve Plug 6
17 9.803-950.0 Washer, Copper 1
18 9.803-951.0 Brass Plug G1/4 1
ITEM PART NO. DESCRIPTION QTY
19 9.803-952.0 Manifold Stud Bolt 8
20 9.802-884.0 Washer 8
21 9.803-198.0 Copper Washer 3/8" 1
22 9.802-925.0 Brass Plug 3/8" 2
27 9.802-939.0 Hexagonal Screw 9
28 9.803-953.0 Bearing Cover 1
29 9.803-954.0 Seal Bearing 1
30 9.802-914.0 Snap Ring 1
31 9.803-955.0 Ball Bearing 1
32 8.717-069.0 Crankshaft (2530G) 1
33 9.803-957.0 Oil Dip Stick 1
34 9.804-581.0 O-Ring 3.53 x 55.56 1
35 9.804-582.0 Needle Roller Bearing 1
36 8.717-212.0 Engine Flange 1
37 9.803-210.0 Spring Washer 4
38 9.804-584.0 Flange Screw 4
9.804-033.0 KG2530G.1
8.904-893.0 LG2530G.1
8.904-748.0 HG2530G.1
TORQUE
SPECS
Item # Ft.-lbs
16 65
19 18
27 7.6
38 8
40 7
50 13
