Sharp 29F-PE550 - Chapter 10. Schematic Diagram; Schematic Diagram: Main Unit

29F-PE550 / 29F-PD570
TVService ManualMarketE
CHAPTER 10. SCHEMATIC DIAGRAM

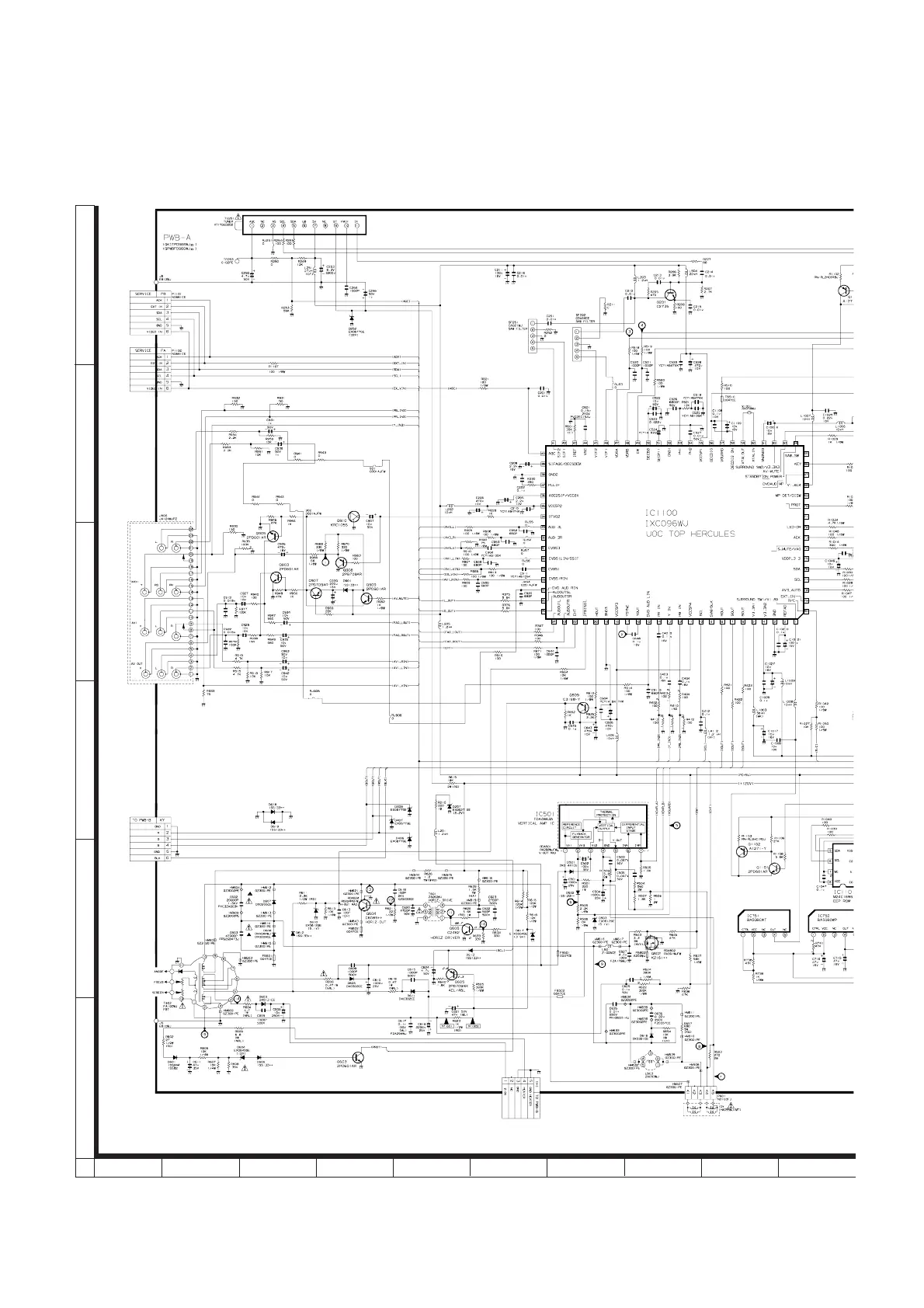

[1] SCHEMATIC DIAGRAM : MAIN UNIT
10-1
1 2 3 4 5 6 7 8 9 10
A
B
C
D
E
F
