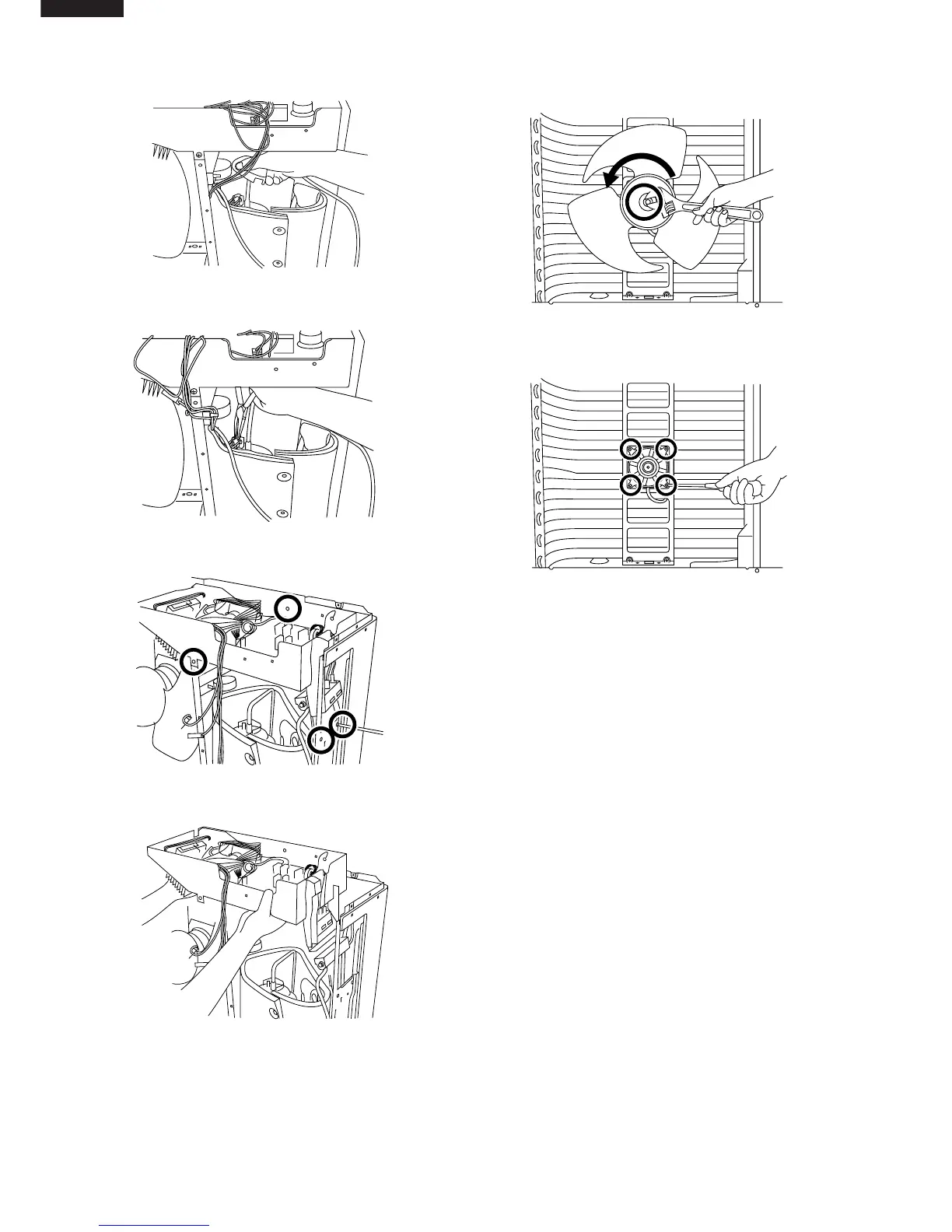

8. Remove the terminal cover of compressor.
9. Remove 3 terminals of compressor..
10. Loose 4 screws fixing the control box.
11. Take out the control box.
DISASSEMBLING PROCEDURE OF THE FAN
1. Loose the fan nut and fan can take out.
2. Fan motor is secured by 4 screws.
Loose
39
41
Table of Contents
Table of Contents
1
Specifications
2
External Dimensions
3
Wiring Diagrams
5
Electrical Parts
9
Block Diagram
10
Microcomputer Control System
12
Functions
17
Tips about Indicator Panel
21
Self Clean Operation
22
Function and Operation of Protective Procedures
27
Breakdown Diagnosis Procedure
29
Refrigeration Cycle
32
Performance Curves
33
Disassembling Procedure
34
Option
41
Replacement Parts List
43
