17. Remove the caseing. 18. Unscrew the 4 screws holding fan motor.

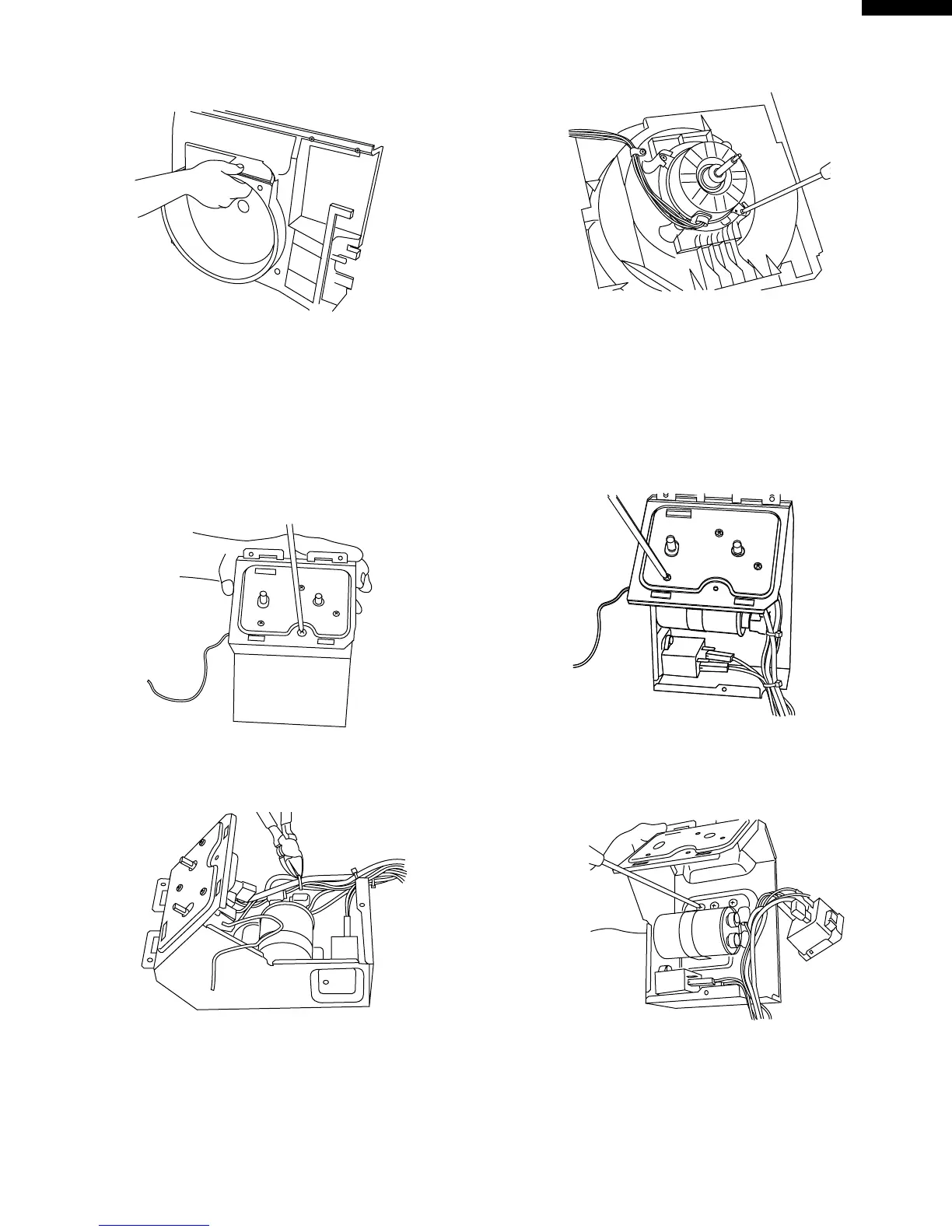

DISASSEMBLING THE CONTROL BOX
1 Unscrew the 2 screws holding the control box cover.
CAUTION:
DISCHARGE THE FAN MOTOR CAPACITOR
AND RUNNING CAPACITOR BEFORE
TOUCHING THOSE CAPACITORS OR OTHER
COMPONENTS OR WIRING.
2 Cut the wire fixing bands holding the fan motor lead
wires, the compressor cord and the power supply cord.
3 Unscrew the 3 screw holding the selector switch and
thermostat. And take off the wiring connector of the
compressor cord, the fan motor cord and the power
supply cord.
4 Unscrew the 1 screw holding the capacitor clamp and
the fan motor capacitor, and take off each connector.
And unscrew 2 earth screws.
