5
AF-T908X
AF-R908X
AF-R1108X
AF-R1208X
F
hr
HIGH COOL
MED COOL
LOW COOL
FAN ONLY
SELECTOR
ENERGY
SAVER
POWER
ON/OFF
TIMER
ON/OFF
TEMP.
3
5
6
7
8
9
10
11
12
1
2
4
13

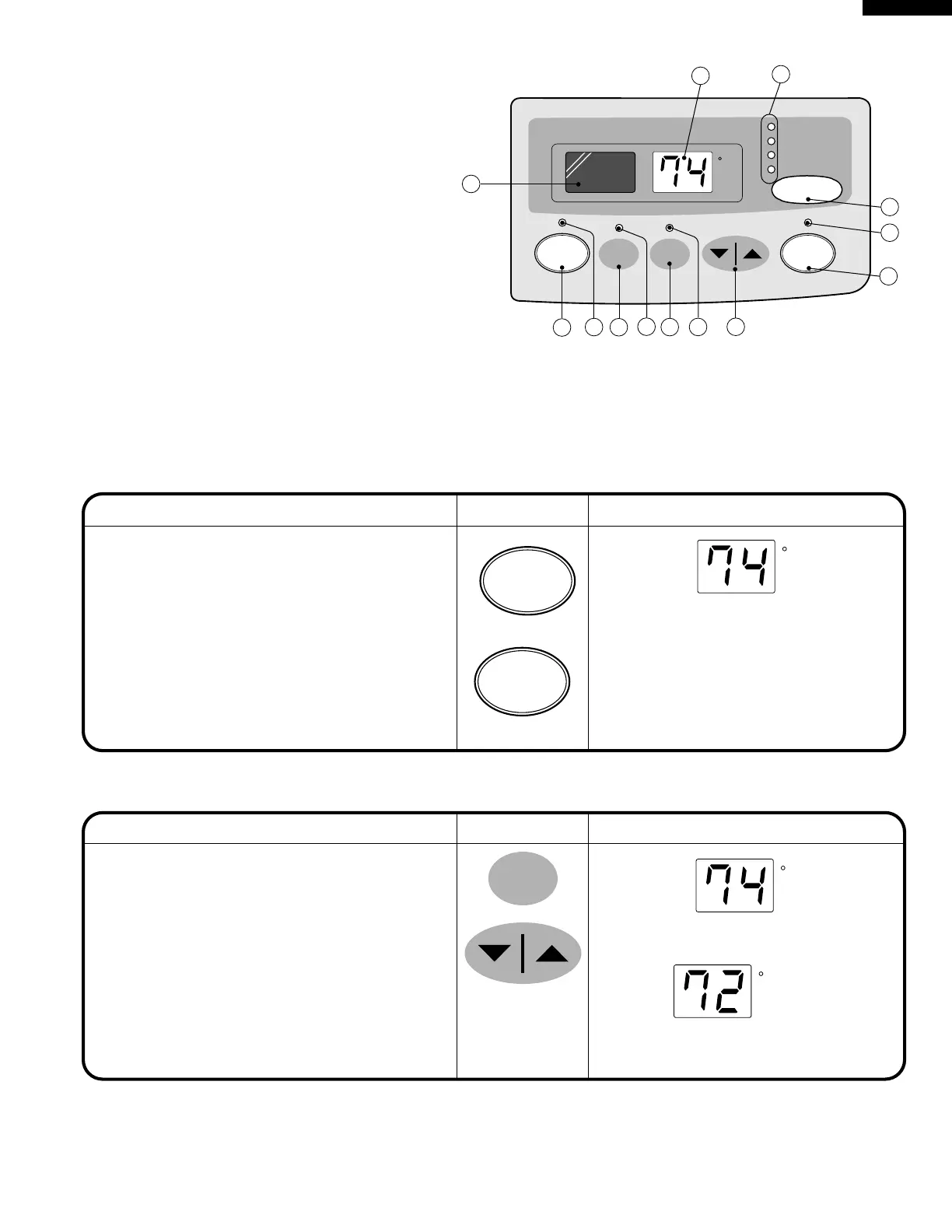

CONTROL PANEL
11
11
1 Display
22
22
2 SELECTOR indicator
33
33
3 SELECTOR pad
44
44
4 POWER indicator
55
55
5 POWER ON/OFF pad
66
66
6 TEMPERATURE and TIMER setting pad
" "
" "
" ••••Temp. lower or time reverse
' '
' '
' ••••Temp. raise or time advance
77
77
7 TEMPERATURE indicator
88
88
8 TEMPERATURE pad
99
99
9 TIMER indicator
00
00
0 TIMER ON/OFF pad
qq
qq
q ENERGY SAVER indicator
ww
ww
w ENERGY SAVER pad
ee
ee
e Receiver window for remote control signal
(Models AF-R908X, AF-R1108X and
AF-R1208X only)
COOLING OPERATION
PROCEDURE PAD DISPLAY / INDICATOR
1. Touch POWER ON/OFF pad.
• The unit is preset at 74 °F and HIGH COOL.
This will show in display when first turned
on.
2. Touch POWER ON/OFF pad again.
• The unit will stop operating.
• POWER indicator, SELECTOR indicator
(HIGH COOL) and TEMPERATURE
indicator will light.
• POWER indicator, SELECTOR indicator
and TEMPERATURE indicator will go off.
TO CHANGE TEMPERATURE SETTING
PROCEDURE PAD DISPLAY / INDICATOR
• Display will change as you touch the
pad.
• TEMPERATURE indicator will light.
During cooling operation
1. Touch TEMPERATURE pad.
2. Touch TEMPERATURE and TIMER setting pad
to adjust temperature setting.
• It can be set within the range of 64°F to 86°F.
' •••Lower temp.
setting.
" •••Raise temp.
setting.
The latest temperature setting will be memorized and will appear on the display the next time it's turned on.
NOTE: In cases of power outages or when unit is disconnected; when the power is restored or unit is plugged in, the unit
and display will return to the preset conditions of 74 °F and HIGH COOL.
However the unit will not automatically turn back on.
