MODEL: AH-MP20
[1] INDOOR UNIT

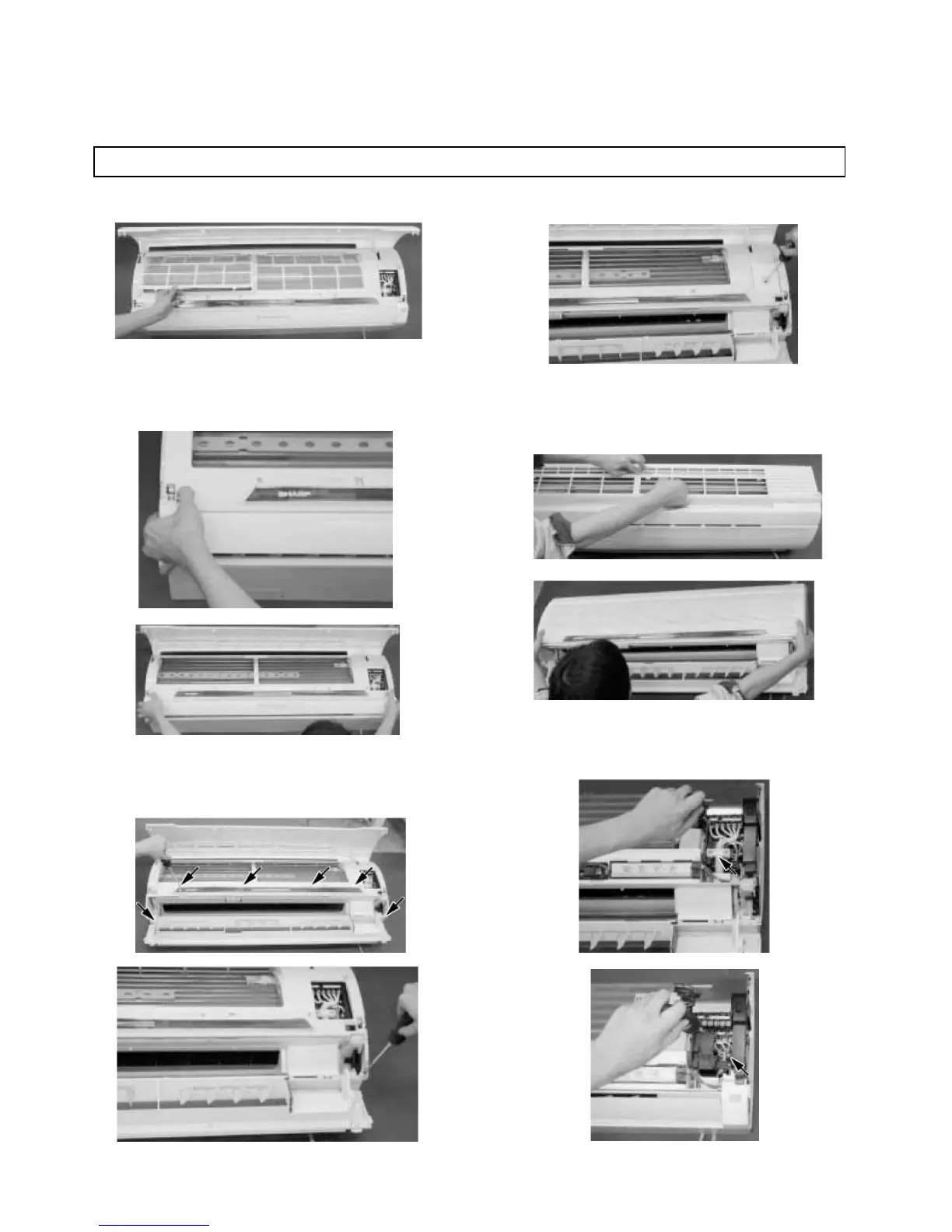

1. Disassembling procedure of the indoor unit
1) Open the open panel, remove 2 Air Filters. 4) Remove the screw fixing the Cord holder.
2) Open the Louver frame, unlooks the hooks, pull the unit. 5) Close the Open panel. pushing the nail of the Front panel, and
lift the Front panel up.
6) Remove the unit-to-unit wiring from the Terminal board.
3) Remove 6 screws fixing the Front panel.
To Next Page
