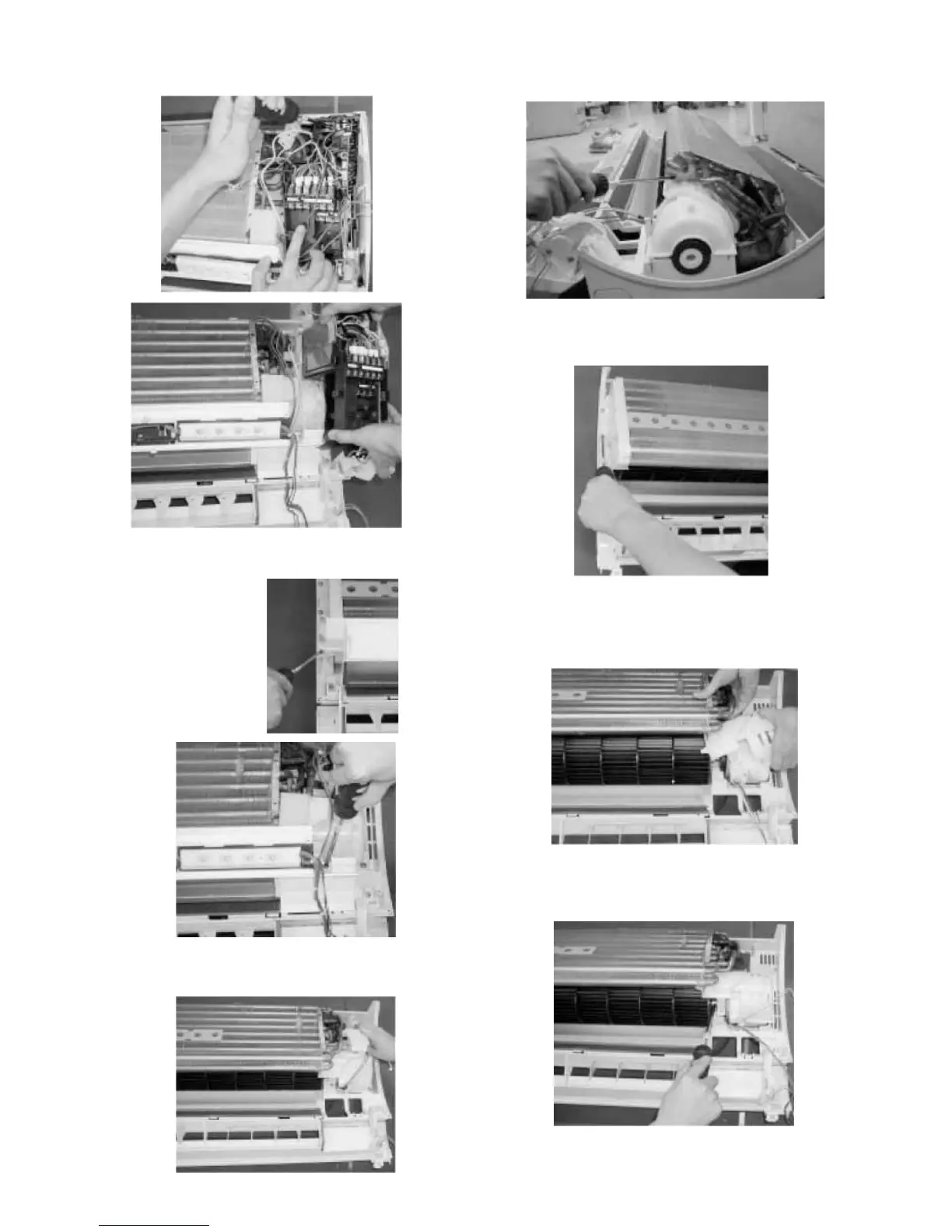

13) Remove 2 screws fixing the Control box and remove it. 16) Remove 3 screws fixing the Evaporator.
17) Remove the Evaporator from the Cabinet.
14) Remove a screw fixing the drain pan and pull Drain pan
toward you.
18) Remove 4 screws fixing the Side cover R, and pull the -
Cross flow fan
19) Loose a screw fixing Cross flow fan.
15) Remove the Drain cover from the Evaporator
19
