27
AH-N45DP2
AU-N45DP2
AH-N56DP2
AU-N56DP2

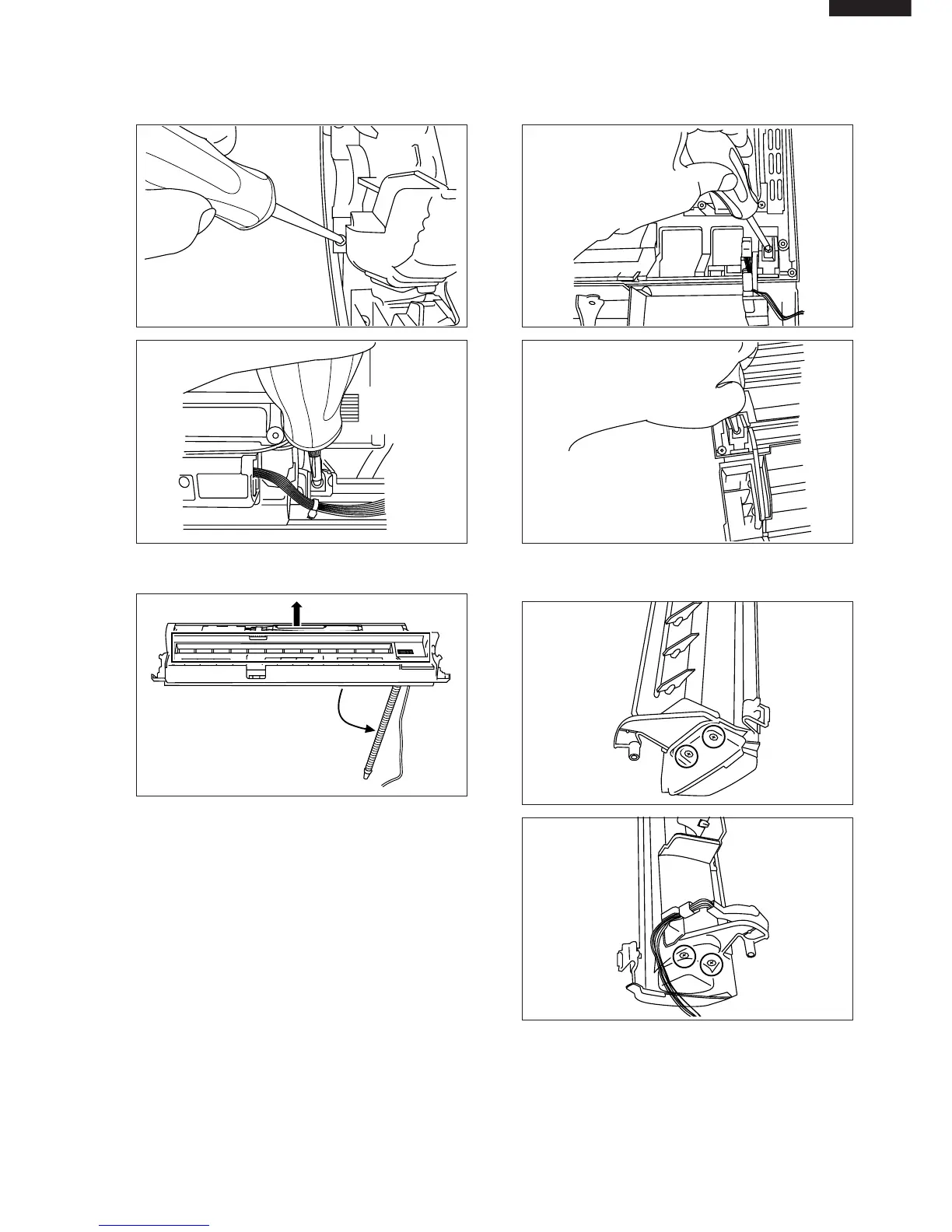

The DRAIN PAN and related
1. Remove the screw fixing the Drain pan on both
side.
2. Turn left the Drain hose.
The LOUVER FRAME UNIT and related
1. Remove the screw fixing the FRAME GUIDE on
both side and take off the LOUVER UNIT.
2. Remove 2 screws fixing Cover-L and Cover-R
and take off them.
To Next Page
