Sharp AL-1631 Parts Manual

– 9 –
M

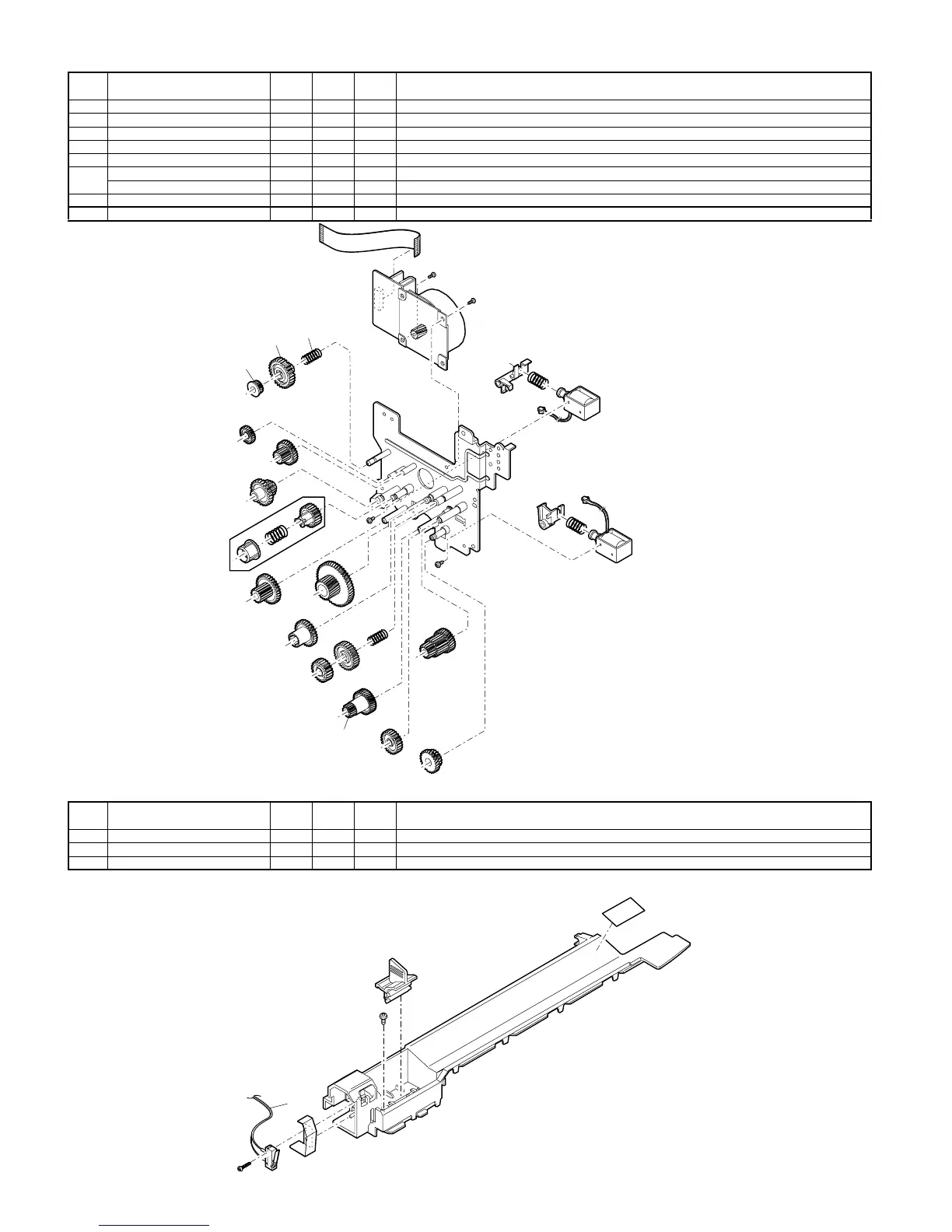

Drive unit
M
Drive unit
O
Multi manual paper feeding cover unit
O
Multi manual paper feeding cover unit
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
3 MSPRC0053QSZ1 AC C Pulley spring (AL-1631)
4 NGERH0050QSZZ AD C Ratchet gear(33T) (AL-1631)
5 NPLYZ0002QSZZ AC C Pulley(17T) (AL-1631)
16 NGERH0008QSZ3 AL C Gear(55/19T)
(Unit)
901
CPLTM0042RS55 BM E Drive unit[Except No.27] (AL-1631)
CPLTM0042RS56 BM E Drive unit[Except No.27] (AL-1641CS/AL-1645CS)
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
4 CSW-M0016RS51 AG E Side door detect switch unit
PRP01817
3
4
5
16
4
PRP01818
