Sharp AL-1631 Parts Manual

– 11 –
T

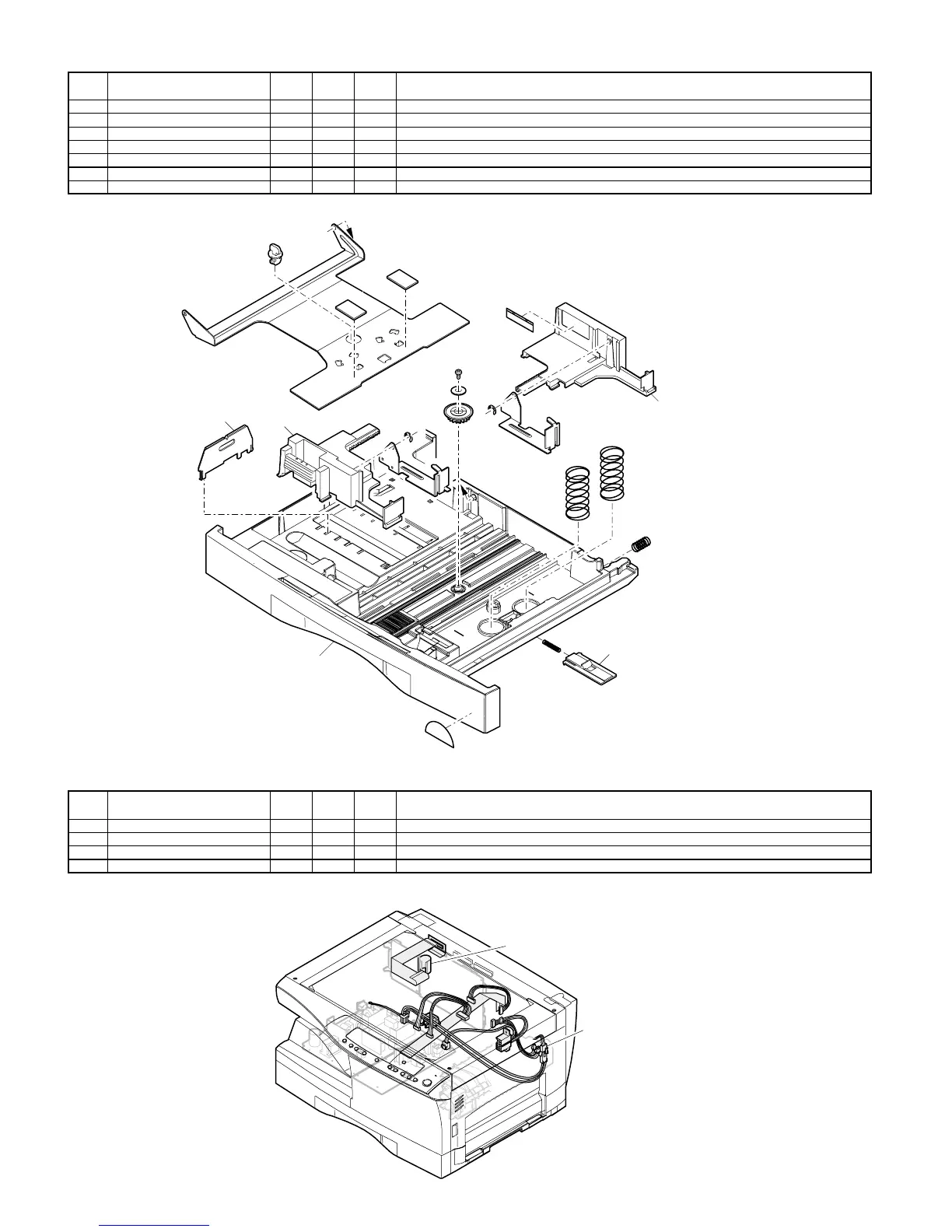

250 sheets tray
T
250 sheets tray
U
Harness
U
Harness
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
4 LPLTM2642FCG2 AD C Tray rear plate
5 LPLTP5107FCZ1 AG C 250 tray side plate F
13 LPLTP5108FCZ1 AG C 250 tray side plate R
18 LSTPP0161FCZ1 AB C Rotation plate stopper
19 GCASP0001QSJ3 AZ D 250 Tray case
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
1 DHAI-0283QSZZ AD C MCU-I/F harness (AL-1641CS/AL-1645CS)
10 DHAI-0278QSZ1 AK C HL harness 2 (100V Series)
PRP01820
18
19
5
4
13
PRP01821
10
1
