Sharp AL-2040 Service Manual

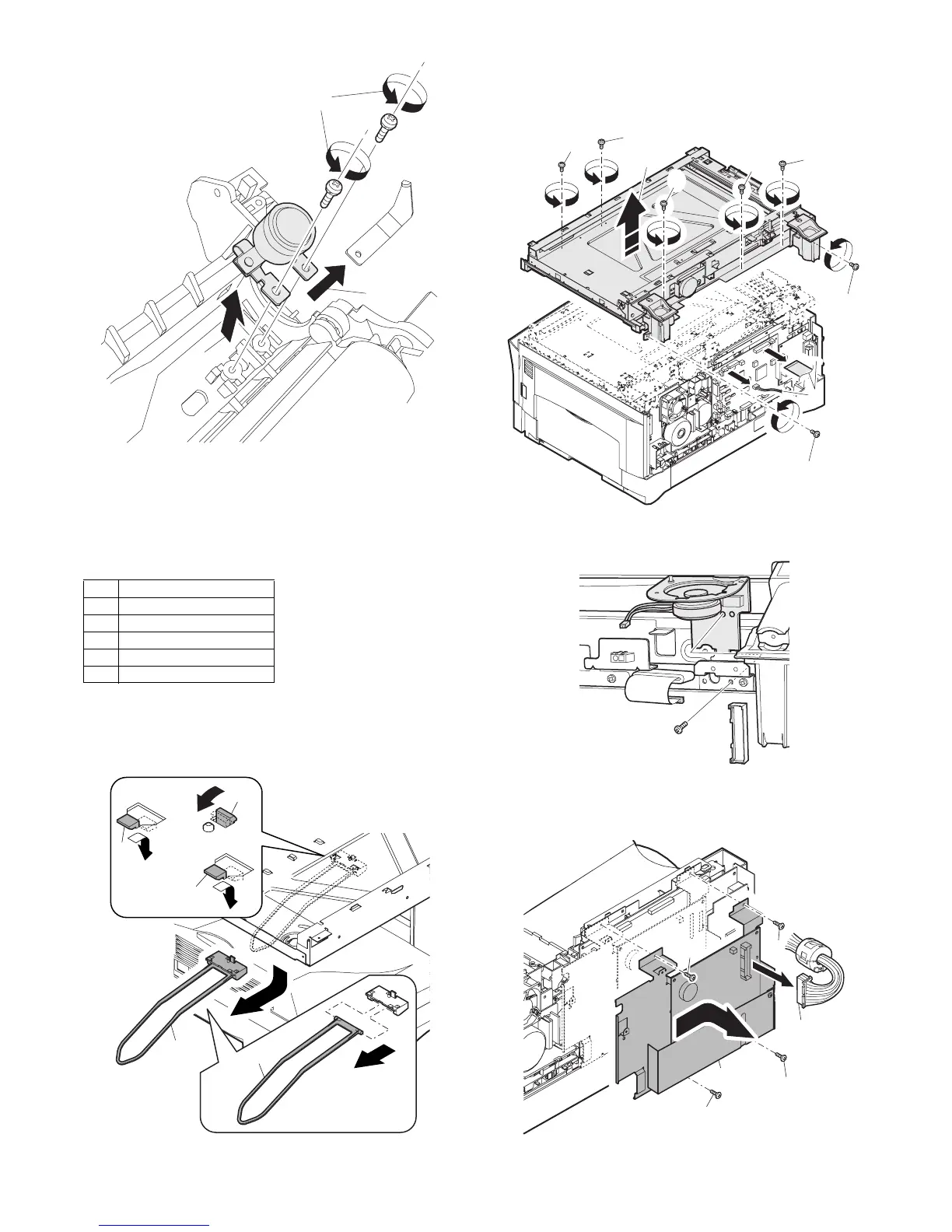

AL-2030/2040CS/2050CS DISASSEMBLY AND ASSEMBLY 8 - 8
C. Assembly procedure
For assembly, reverse the disassembly procedure.
5. Tray paper feed/transport section
A. List
B. Disassembly procedure
1) Remove the paper holding arm.
Remove the arm holder from the main unit, and remove the
holder from the arm. (AL-2050/2060)
2) Remove two screws, and remove the hinge guide R.
3) Disconnect the connector. (2 positions)
4) Remove five screws, and remove the scanner unit.
5) Remove the fan duct.
6) Remove the connector and the screw, and remove the speaker
unit. (AL-2060 only)
7) Remove the connector.
8) Remove four screws, and remove the FAX PWB unit.
(AL-2060 only)
No. Part name Ref.
1 PPD1 sensor PWB
2 POD sensor PWB
3 LSU unit
4 Intermediate frame unit
5 Paper feed roller
1)
2)
3)
3)
1)
2)
2)
4)
2)
2)
1)
2)
2)
2)
2)
2)
3)
2)
2)
3)
1)
2)
2)

Sharp AL-2040 Specifications

General

Print Technology	Laser
Type	Monochrome
Print Speed	20 ppm
Print Resolution	600 x 600 dpi
Copy Speed	20 cpm
Copy Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Connectivity	USB 2.0
Zoom Range	25 - 400%
Maximum Paper Size	A4
Memory	32 MB
Functions	Print, Copy, Scan
Original Size	A4
Copy Size	A4
Paper Capacity Standard	250 sheets
Paper Weight	60-163 g/m²
Scan Destinations	USB
