Sharp AQUOS LC-15S5U

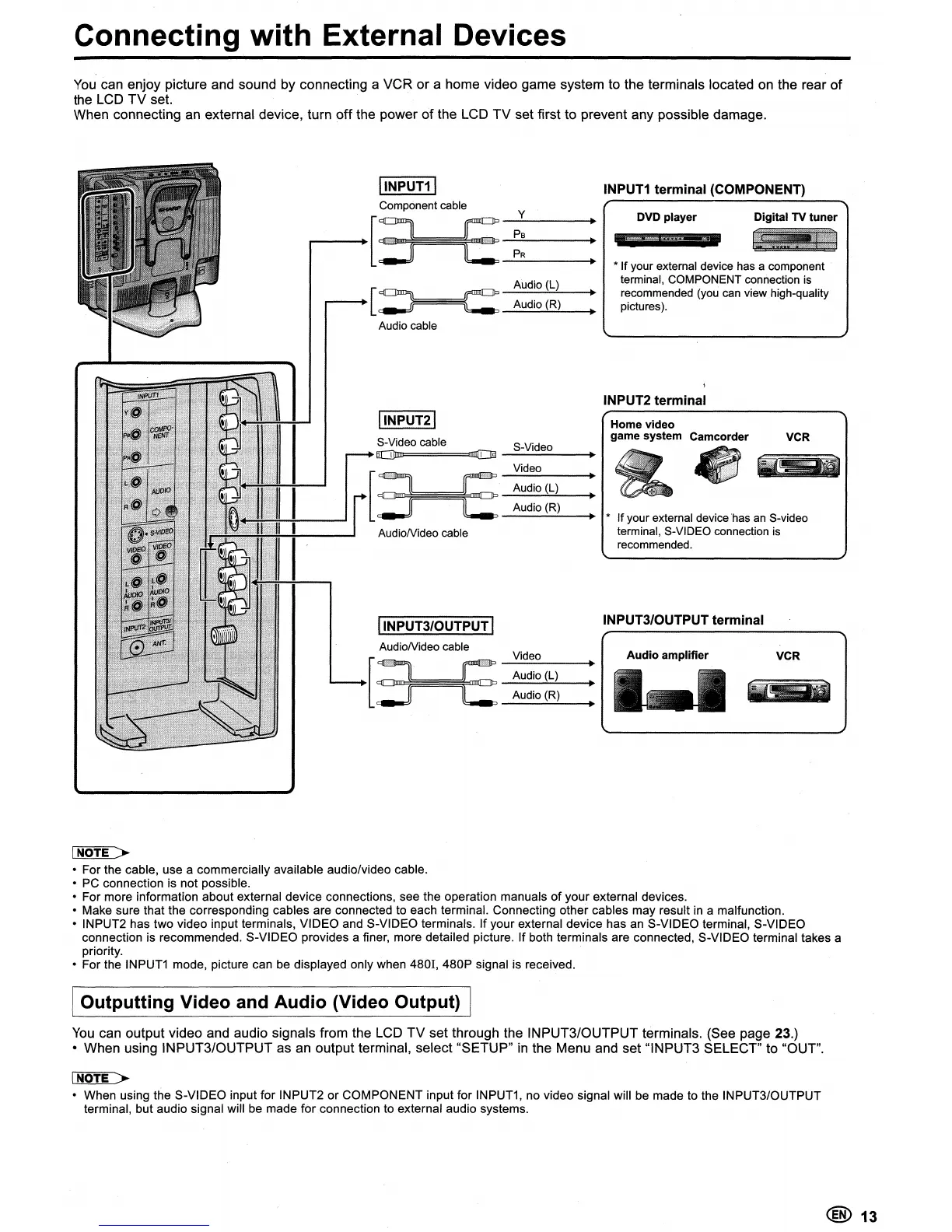

Connecting with External Devices
You can enjoy picture and sound by connecting a VCR or a home video game system to the terminals located on the rear of
the LCD TV set.
When connecting an external device, turn
off the power of the LCD TV set first to prevent any possible damage.
VCR
VCR
Digital TV
tuner
DVD player
Audio amplifier
* If your external device has a component
terminal, COMPONENT connection is
recommended (you can view high-quality
pictures).
Home video
game system Camcorder
INPUT1 terminal (COMPONENT)
INPUT2
terminal
INPUT3/0UTPUT terminal
Video
S-Video
Audio (L)
Video
Audio (R)
----- .... ~ * If your external device 'has an S-video
terminal, S-VIDEO connection is
recommended.
Audio cable
IINPUT21
IINPUT3/0UTPUT
I
AudioNideo cable
IINPUT11
Component cable
-----+ [3 E ---------.::
[
~~~~~~ __ A_Ud_iO~(.....:L):-.---+
c..,.lF ~ Audio (R)
INOTE >
• For the cable, use a commercially available audio/video cable.
•
PC connection is not possible.
• For more information about external device connections, see the operation manuals
of your external devices.
• Make sure that the corresponding cables are connected to each terminal. Connecting other cables may result
in a malfunction.
• INPUT2 has two video input terminals, VIDEO and S-VIDEO terminals.
If your external device has an S-VIDEO terminal, S-VIDEO
connection is recommended. S-VIDEO provides a finer, more detailed picture. If both terminals are connected, S-VIDEO terminal takes a
priority.
• For the INPUT1 mode, picture can be displayed only when
4801, 480P signal is received.
I Outputting Video and Audio (Video Output) I
You can output video and audio signals from the LCD TV set through the INPUT3/0UTPUT terminals. (See page 23.)
• When using INPUT3/0UTPUT as an output terminal, select "SETUP"
in the Menu and set "INPUT3 SELECT" to "OUT".
INOTE >
• When using the S-VIDEO input for INPUT2 or COMPONENT input for INPUT1, no video signal will be made to the INPUT3/0UTPUT
terminal, but audio signal will be made for connection to external audio systems.
@ 13
