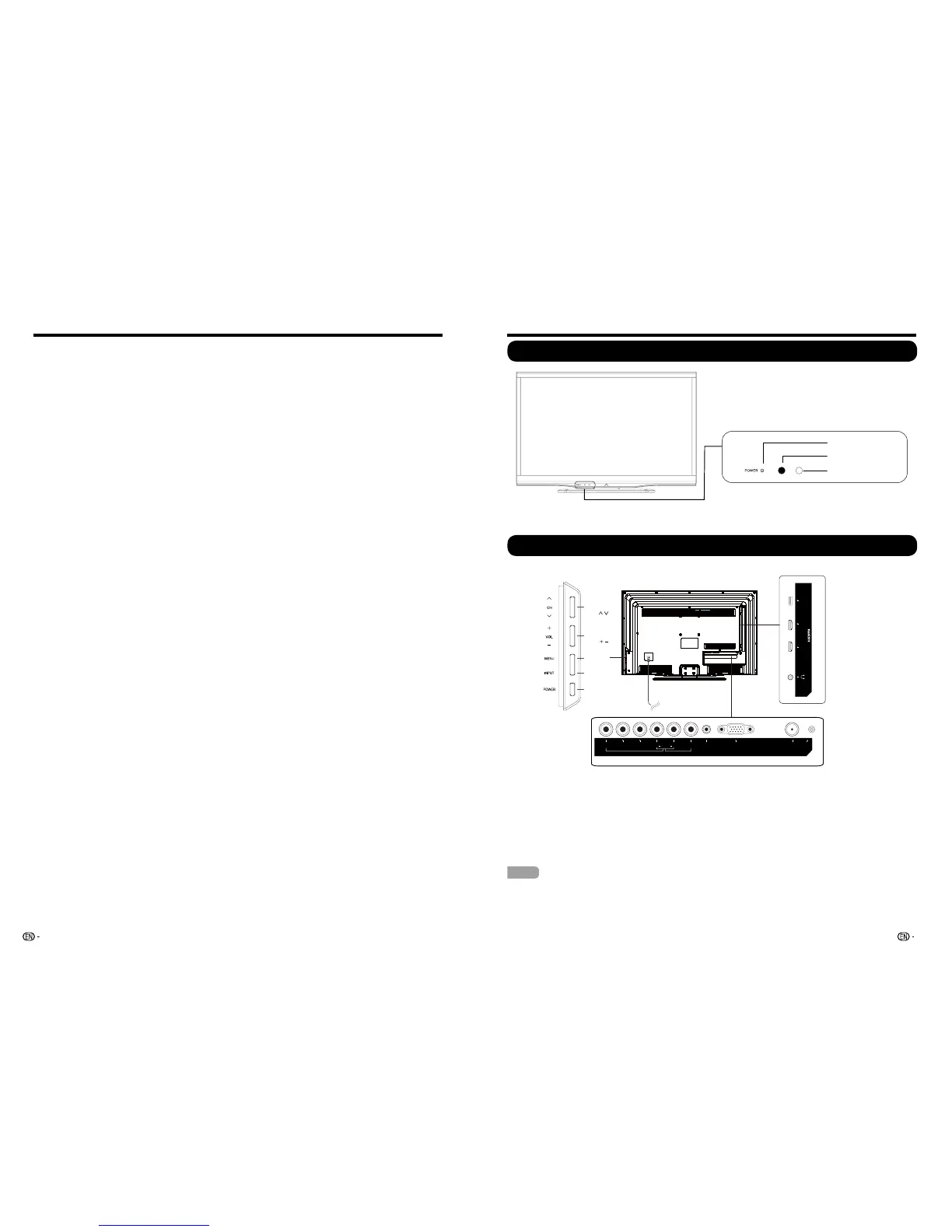

Part Names
TV (Front)
TV (Side/Rear)
*1: See pages 16, 17, 18 and 19 for external equipment connection.
*2: See page 15,20,22and 28 for button operations.
NOTE
t5IFJMMVTUSBUJPOTJOUIJTPQFSBUJPONBOVBMBSFGPSFYQMBOBUJPOQVSQPTFTBOENBZWBSZTMJHIUMZGS
PN
the actual operations.
POWER indicator
OPC
Remote control sensor
*2
*1
*1
POWER
button
MENU
button
INPUT
button
Channel
buttons
(CH
/
)
Volume
buttons
(VOL
/
)
DIGITAL
AUDIO
OUTPUT
AUDIO IN
(PC/DVI)
COMPONENT IN
ANT/CABLEPC IN
(ANALOG RGB)
VIDEO
YPBPR
L
R
AUDIO
AUDIO/VIDEO IN
HDMI 1/ DVI IN
HDMI 2 IN
USB
(DC5V 500mA)
