Preparation

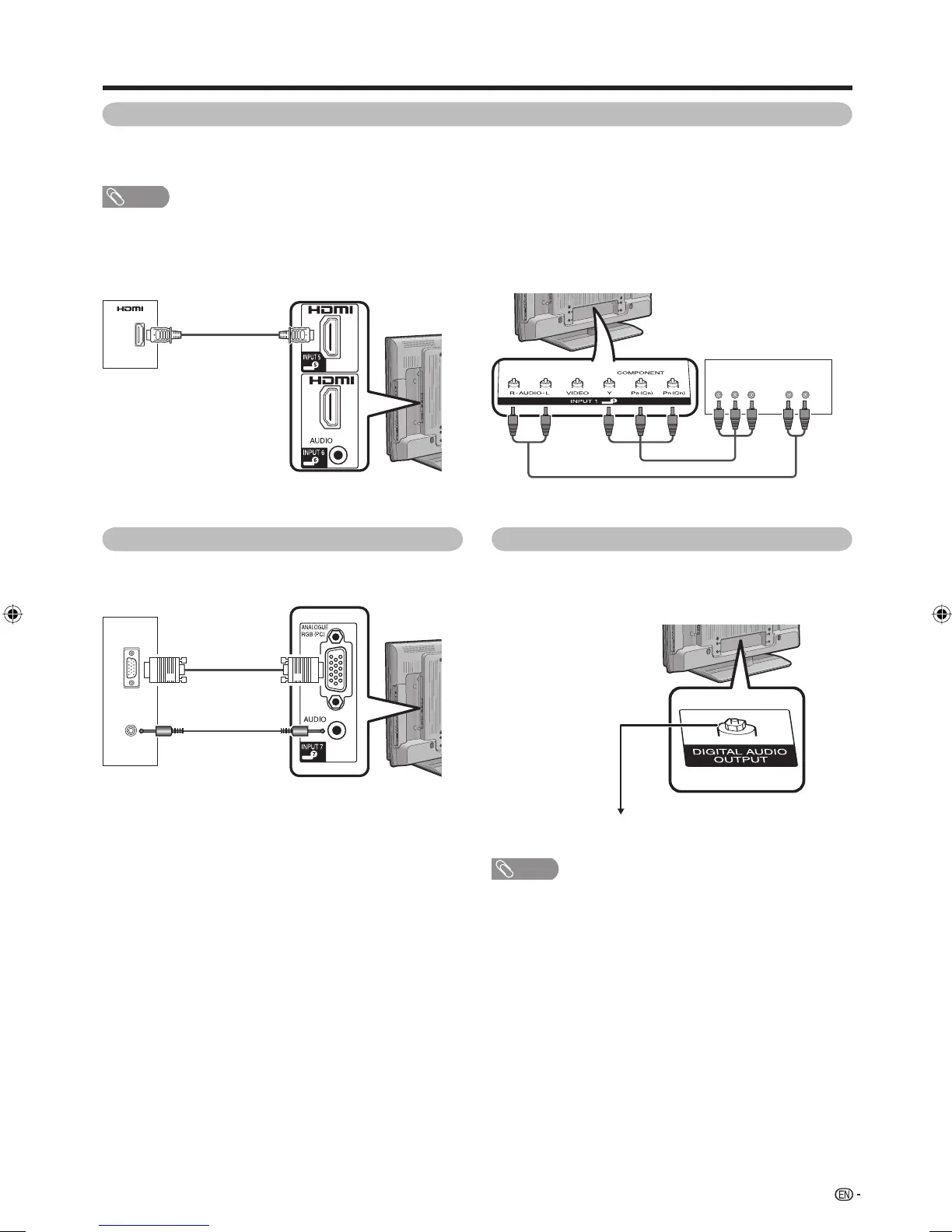

Connecting a STB (Satellite, Cable, etc.)
You can use the INPUT 1/INPUT 2 (component) or INPUT 4/INPUT 5/INPUT 6 (HDMI) terminals when connecting
to a STB (Satellite, Cable, etc.) and other audiovisual equipment.
NOTE
• When using a DVI-HDMI conversion adaptor, input the Audio Signal from the AUDIO terminal of INPUT 6. (See page 36.)
When using HDMI cable
(commercially available)
When using component cable
(commercially available)
R – AUDIO – LY
P
B
(CB)
P
R
(CR)
STB
(Set Top Box)
STB
(Set Top Box)
Using Digital Audio Output
It is possible to output audio through the DIGITAL
AUDIO OUTPUT terminal. PCM audio outputs from the
terminal.
To optical digital input of external audio devices
Optical fi bre cable
(commercially available)
Connecting a PC
You can use the INPUT 7 (PC) terminal when
connecting to a PC. (See page 39.)
ANALOG
RGB
AUDIO
(L/R)
PC
NOTE
• The DIGITAL AUDIO OUTPUT terminal usually outputs the
same audio from the speakers. (The audio of the content
you are viewing is output from the terminal.)
• The DIGITAL AUDIO OUTPUT terminal does not output
some signals, depending on devices and software.
