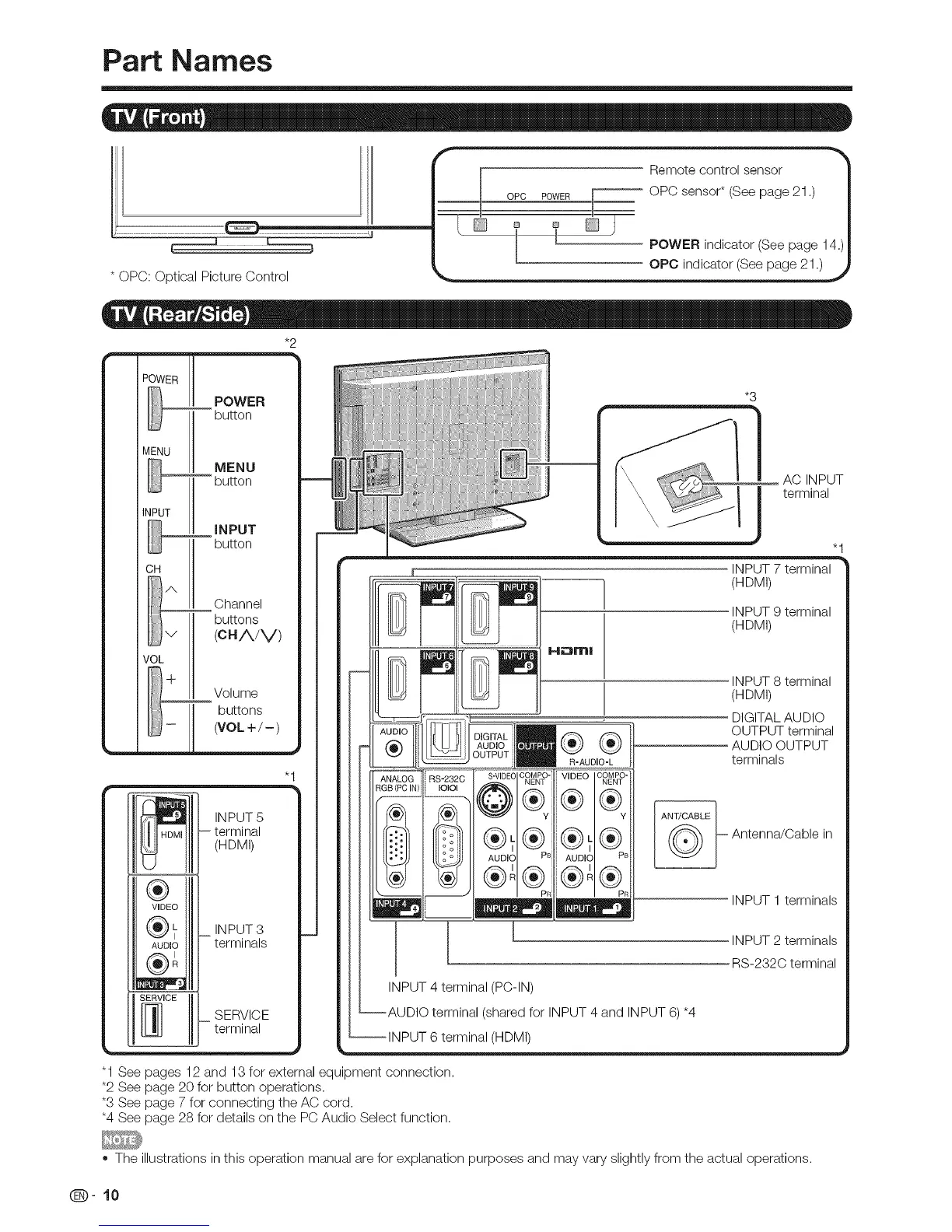

Part Names
........................................................................................_ ...................................................................................kI
* OPC: Optical Picture Control
I Remote control sensor /
I oPc POWER _ OPC sensor* (See page 21.) |
L T T |
_ -- POWER indicator (See page 14.)_
_, _ -- -- OPC indicator (See page 21.) J
POWER
POWER
button
MENU
MENU
button
INPUT
iNPUT
button
CH
Channel
buttons
(CHA/V)
VOL
Volume
buttons
(VOL+/-)
*2
®
VmDEO
AUDmO
®,
INPUT 5
- terminal
(HDMI)
INPUT 3
- terminals
SERVICE
- terminal
AC INPUT
terminal
/
INPUT 7 terminal
(HDMI)
INPUT 9 terminal
(HDMI)
INPUT 8 terminal
(HDMI)
DIGITAL AUDIO
OUTPUT terminal
AUDIO OUTPUT
terminals
_ Antenna!Cable in
INPUT 1 terminals
INPUT 2 terminals
RS-232C terminal
INPUT 4 terminal (PC-IN)
(shared for INPUT 4 and INPUT 6) *4
6 terminal (HDMI)
"1 See pages 12 and 13 for external equipment connection.
*2 See page 20 for button operations.
*3 See page 7 for connecting the AC cord.
*4 See page 28 for details on the PC Audio Select function.
The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.
Q-10
