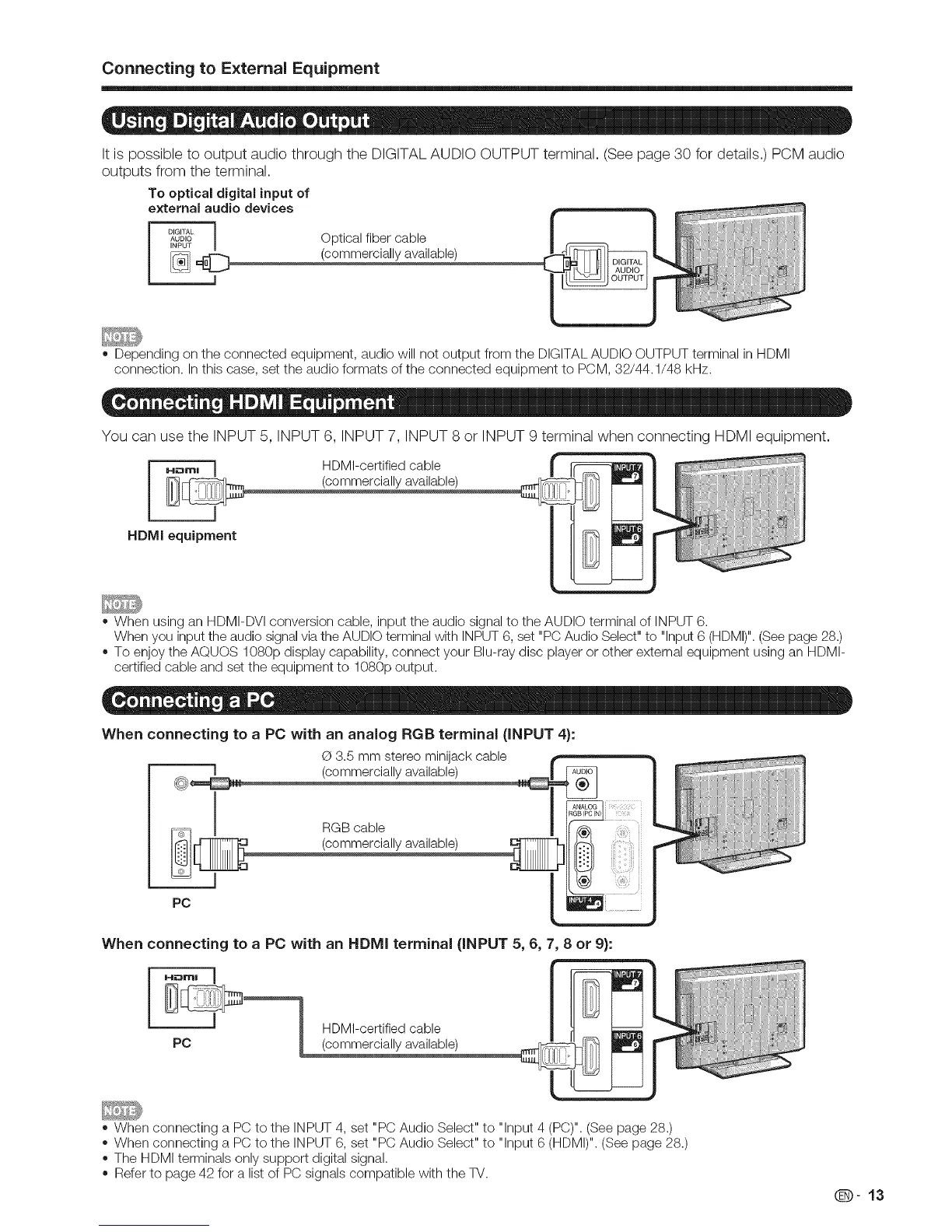

Connecting to External Equipment
It is possible to output audio through the DIGITAL AUDIO OUTPUT terminal. (See page 30 for details.) PCM audio
outputs from the terminal.
To optical digital input of
external audio devices
%%,T_L Opt'ca f'ber cab e
j =NPUT I . .
• Depending on the connected equipment, audio will not output from the DIGITAL AUDIO OUTPUT terminal in HDMI
connection. In this case, set the audio formats of the connected equipment to PCM, 32/44.1/48 kHz.
You can use the INPUT 5, INPUT 6, INPUT 7, INPUT 8 or INPUT 9 terminal when connecting HDMI equipment.
HDMI-certified cable r
(commercially available)
HDMI equipment
• When using an HDMI-DVl conversion cable, input the audio signal to the AUDIO terminal of INPUT 6.
When you input the audio signal via the AUDIO terminal with INPUT 6, set "PC Audio Select" to "Input 6 (HDMI)". (See page 28.)
• To enjoy the AQUOS 1080p display capability, connect your Blu-ray disc player or other external equipment using an HDMI-
certified cable and set the equipment to 1080p output.
When connecting to a PC with an analog RGB terminal (INPUT 4}:
_ {8 3.5 mm stereo minijack cable _
_ (commercially available) _
...... RGBcab,e If
When connecting to a PC with an HDMI terminal (INPUT 5, 6, 7, 8 or g}:
HDMI-certified cable
PC (commercially available)
• When connecting a PC to the INPUT 4, set "PC Audio Select" to "Input 4 (PC)". (See page 28.)
,, When connecting a PC to the INPUT 6, set "PC Audio Select" to "Input 6 (HDMI)". (See page 28.)
• The HDMI terminals only support digital signal.
• Refer to page 42 for a list of PC signals compatible with the TV.
Q-13
