6
Preparation
• Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.
• Before performing work, spread cushioning over the base area to lay the TV on. This will prevent it from being
damaged.
CAUTION
• Attach the stand in the correct direction.
• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.

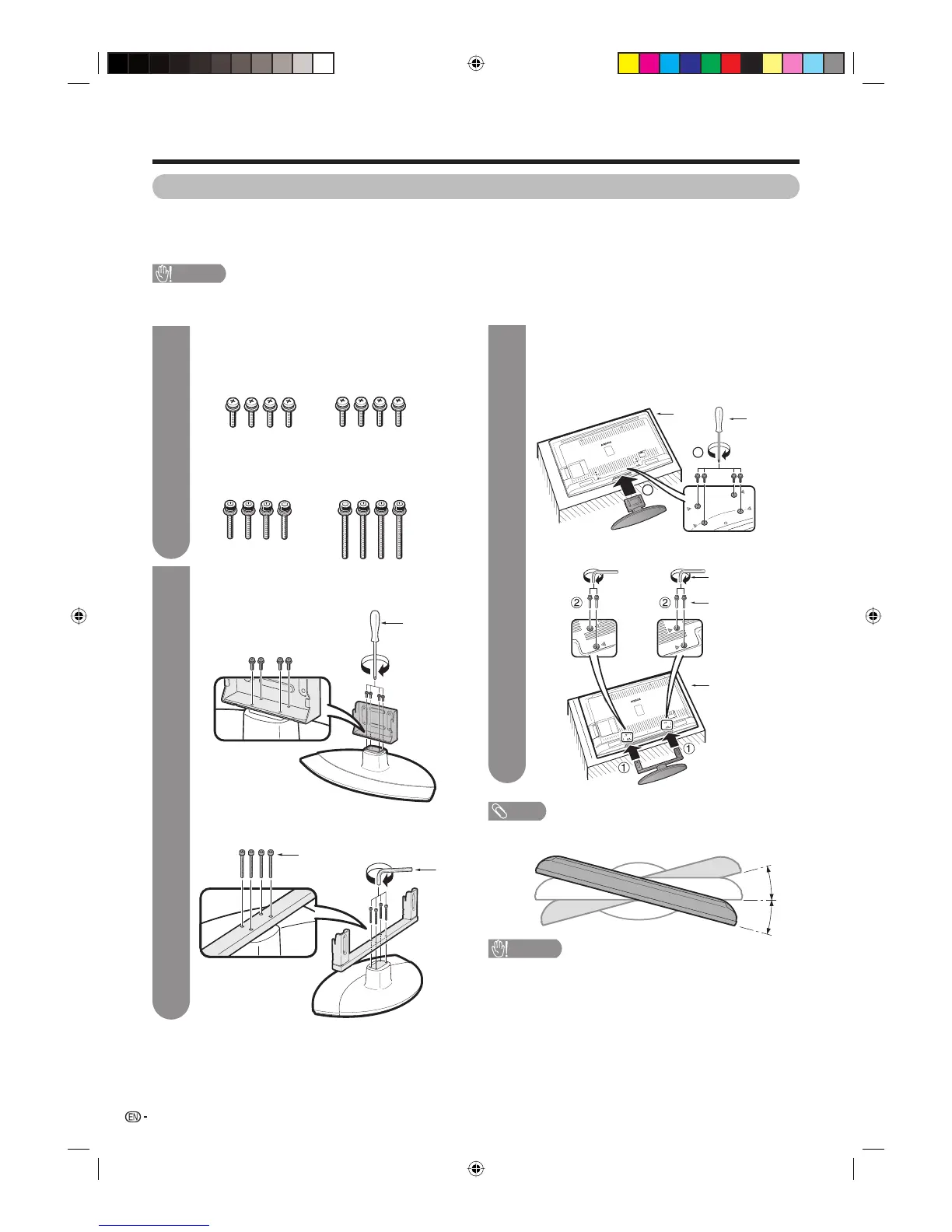

Attaching the stand
1
2
1 3
1 Insert the stand into the openings on the
bottom of the TV.
2 Insert and tighten the 4 short screws into
the 4 holes on the rear of the TV.
Screw
driver
(not supplied)
Soft
cushion
NOTE
• To detach the stand, perform the steps in reverse order.
2
Screw
driver
(not supplied)
Screw
Attach the supporting post for the stand unit
onto the base as shown below.
Confi rm the 8 screws supplied with the TV.
Short screws (g4)
(used in step 3)
Short screws (g4)
(used in step 2)
LC-32D77X
CAUTION
• Adjust the screen with both hands. Put one hand
on the TV and rotate the screen while steadying the
stand with your other hand.
The TV can be rotated up to 15 degrees to the right or left.
15°
15°
LC-32D77X
Short screws (g4)
(used in step 3)
Long screws (g4)
(used in step 2)
LC-42D77X/LC-46D77X/LC-52D77X
Hex
key
Long screw
LC-42D77X/LC-46D77X/LC-52D77X
Soft
cushion
LC-32D77X
LC-42D77X/LC-46D77X/LC-52D77X
Short screw
Hex key
Screw
52D77X.indb 652D77X.indb 6 2/17/09 5:13:00 PM2/17/09 5:13:00 PM
To Next Page
