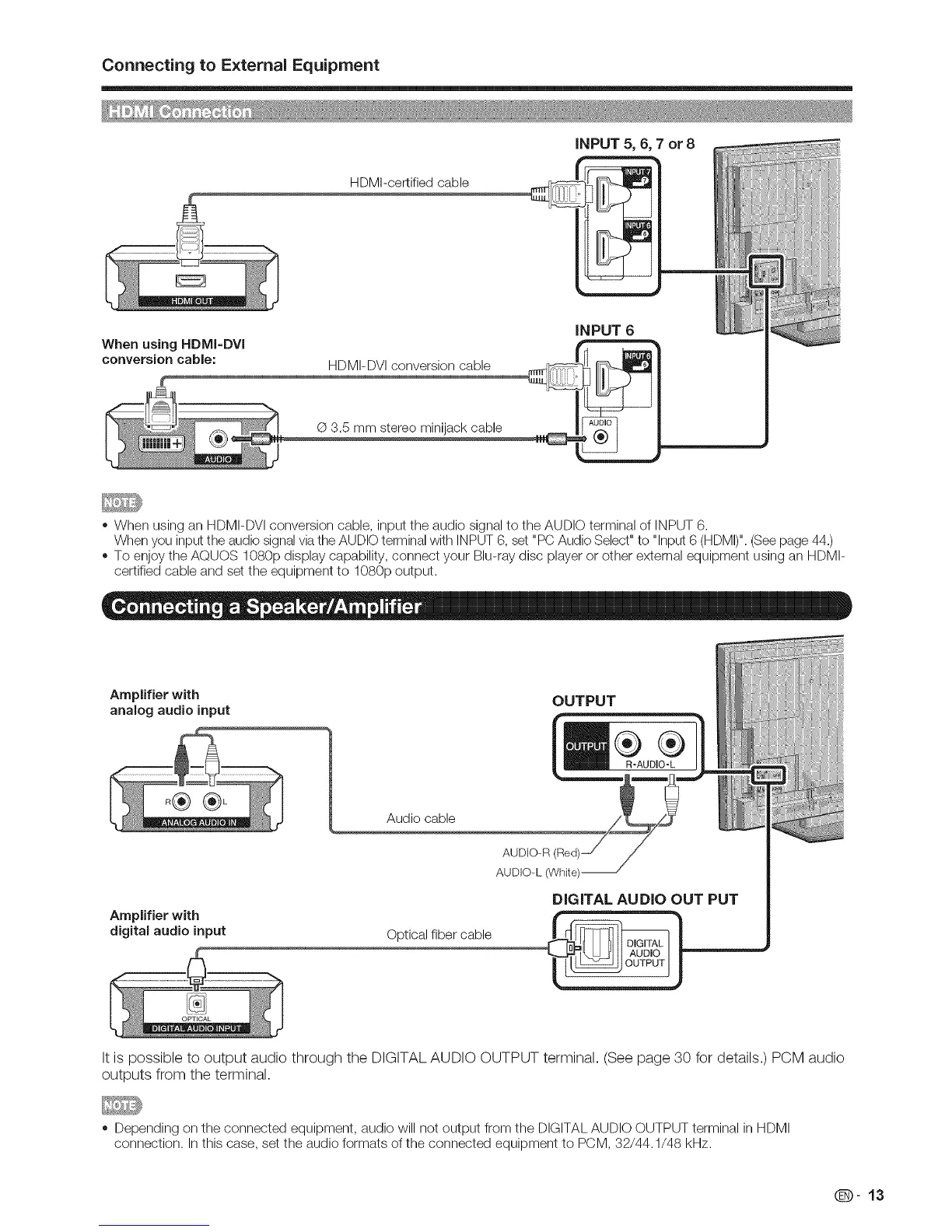

Connectingto E×ternalEquipment
HDMI-certified cable
When using HDMJ=DVI
conversion cable:
HDMI-DVI conversion cable
® 3.5 mm stereo minijack cable
iNPUT 5, 6, 7 or 8
iNPUT 6
22
,, When using an HDMI-DVI conversion cable, input the audio signal to the AUDIO terminal of INPUT 6.
When you input the audio signal via the AUDIO terminal with INPUT 6, set "PC Audio Select" to "Input 6 (HDMI)". (See page 44.)
,, To enjoy the AQUOS 1080p display capability, connect your Blu-ray disc player or other external equipment using an HDMI-
certified cable and set the equipment to 1080p output.
Amplifier with
analog audio input
OUTPUT
®®
R=AUDIO-L
Amplifier with
digital audio input
Audio cable
Optical fiber cable
AUDIO-R
AUDIO-L(White)
DIGITAL AUDIO OUT PUT
c -1
It is possible to output audio through the DIGITAL AUDIO OUTPUT terminal. (See page 30 for details.) PCM audio
outputs from the terminal.
,, Depending on the connected equipment, audio will not output from the DIGITAL AUDIO OUTPUT terminal in HDMI
connection. In this case, set the audio formats of the connected equipment to PCM, 32/44.1/48 kHz.
@-13
