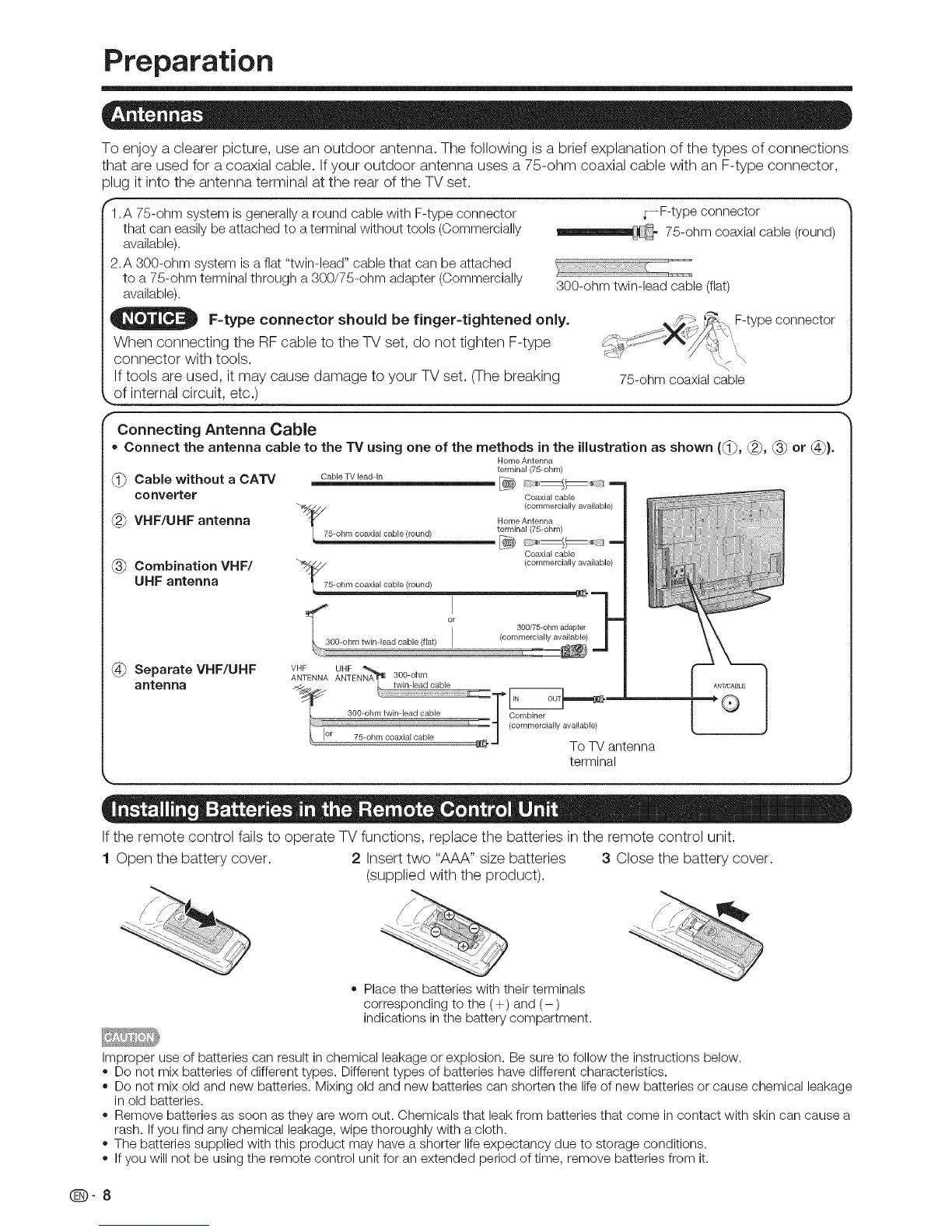

Preparation
To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections
that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an F-type connector,
plug it into the antenna terminal at the rear of the TV set.
f
1.A 75-ohm system is generally a round cable with F-type connector
that can easily be attached to a terminal without tools (Commercially
available).
2.A 300-ohm system is a flat "twin-lead" cable that can be attached
to a 75-ohm terminal through a 300/75-ohm adapter (Commercially
available).
_ F-type connector
75-ohm coaxial cable (round)
300-ohm twin-lead cable (flat)
F=type connector should be finger=tightened only. _ _-:s ,_->_ F-type connector
When connecting the RF cable to the TV set, do not tighten F-type S:_a_./:.:_°"_/_ ........
connector with tools. _'Y _ _,<-'\
If tools are used, it may cause damage to your TV set. (The breaking 75-ohm coaxial cable
of internal circuit, etc. ) j
Connecting Antenna Cable
• Connect the antenna cable to the TV using one of the methods in the illustration as shown ((_, (_, (_ or (_).
Home Antenna
terminal (75 ohm)
(_ Cable without a CATV CableWleadIn _ __ 3_,_7_ =
converter Coaxial came
_7 (commercially available)
(_) VHF/UHF antenna HomeAnt ....
5-ohm coaxial cable (round) terminal (75-ohm)
Coaxial cable
(_ Combination VHF/ _ (.......... iallyavailable)
UHF antenna t75_ohm coaxial cable (round)
(_ Separate VHF/UHF
antenna
To TV antenna
terminal
If the remote control fails to operate TV functions, replace the batteries in the remote control unit.
1 Open the battery cover. 2 Insert two "AAA" size batteries 3 Close the battery cover.
(supplied with the product).
o Place the batteries with their terminals
corresponding to the (÷) and (-)
indications in the battery compartment.
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
o Do not mix batteries of different types. Different types of batteries have different characteristics.
o Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage
in old batteries.
o Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come in contact with skin can cause a
rash. Ifyou find any chemical leakage, wipe thoroughly with a cloth.
o The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
o Ifyou will not be using the remote control unit for an extended period of time, remove batteries from it.
Q-8
