Sharp AQUOS LC-46LX530H

31

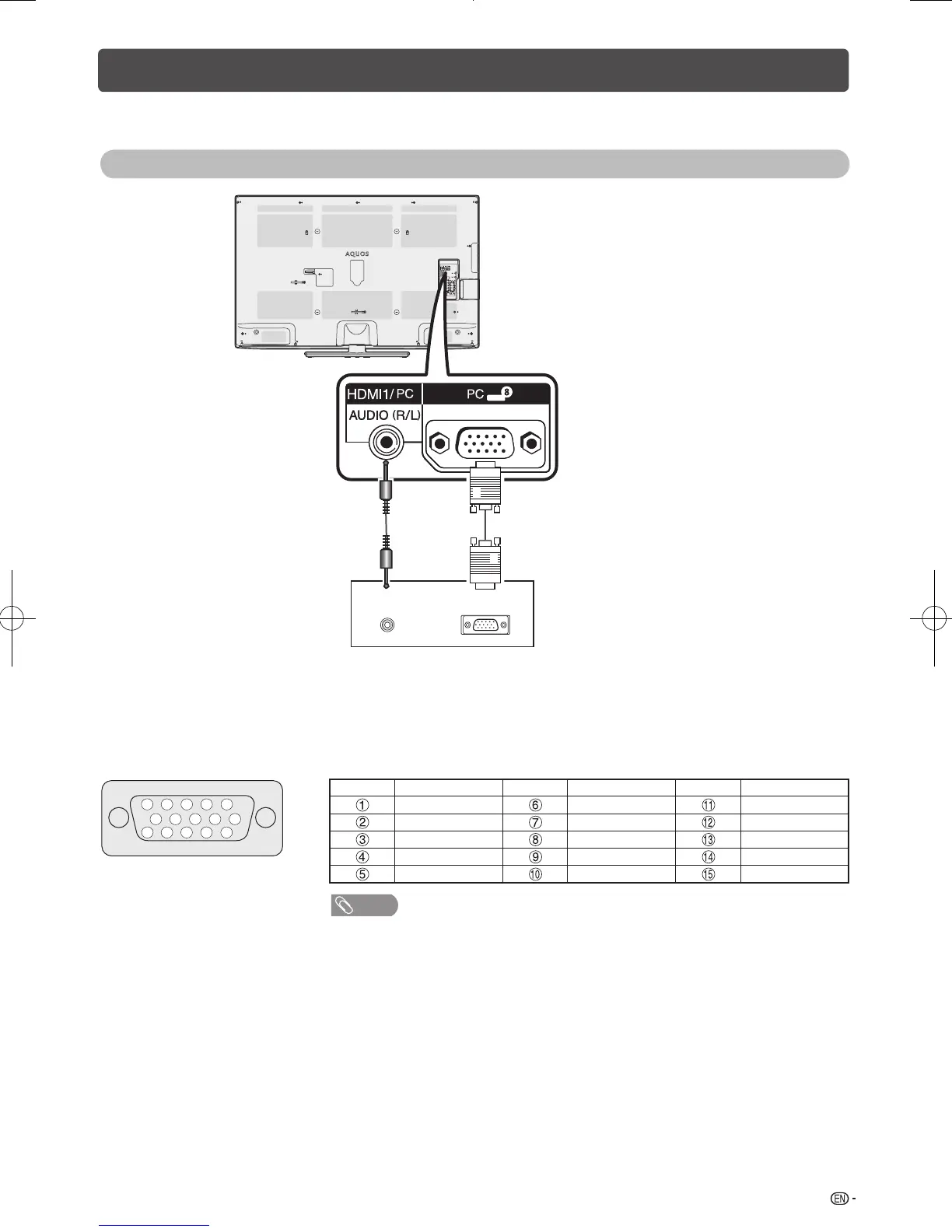

Use the PC terminals to connect a PC.
Signal names for 15-pin mini D-sub connector
NOTE
• Macintosh adaptor may be required for use for some Macintosh computers.
• Refer to page 32 for a list of PC signals compatible with the TV.
• Refer to page 22 for the PC audio select, when connecting TV with HDMI cable to PC.
15
14
13
12
9
11
10
8
7
6
5
4 3
2
1
Pin No. Signal name Pin No. Signal name Pin No. Signal name
R GND (Ground) Not connected
G GND (Ground) SDA
B GND (Ground) HD
Not connected +5V VD
CSYNC GND (Ground) SCL
Analogue Connection
Connecting a PC
ANALOG
RGB
AUDIO
(L/R)
PC
Ø 3.5 mm stereo
mini jack cable
(Commercially
available)
RGB cable
(Commercially
available)
