Connecting to External Equipment
■

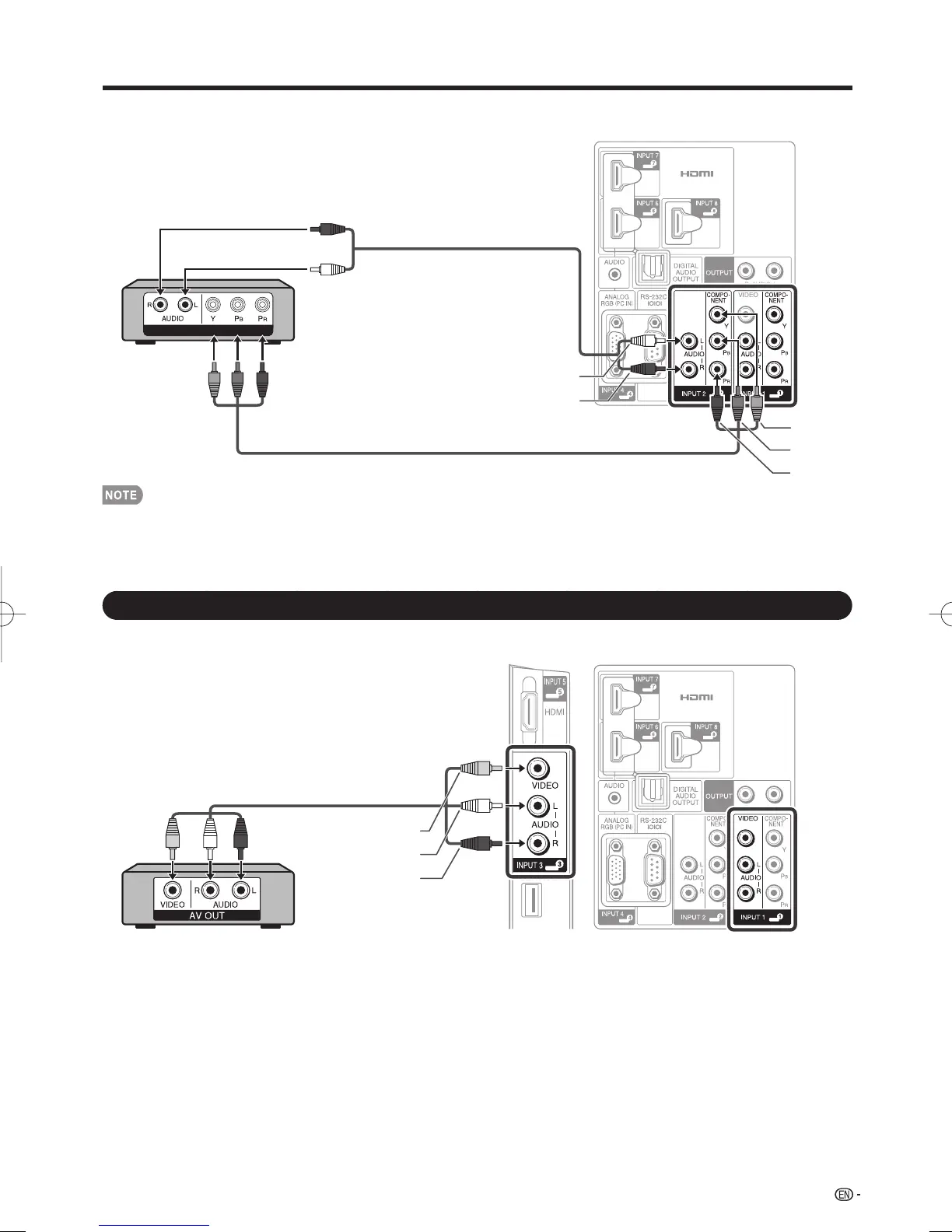

When using Component cable (INPUT 1 or 2):
• Blu-ray disc player • DVD player
• HD cable/satellite set-top box
COMPONENT OUT
Rear of the TV
AUDIO-R (Red)
AUDIO-L (White)
Y (Green)
P
B
(Blue)
P
R
(Red)
Audio cable
Component video cable
• To enjoy 1080p display capability, connect your external equipment using an HDMI-certifi ed cable or a component cable and
set the equipment to 1080p output.
• See page 12 for connecting a Blu-ray disc player, DVD player or an HD cable/satellite set-top box to the HDMI terminal.
• The COMPONENT terminals take priority over the VIDEO terminal (INPUT 1 only).
Connecting a VCR, Game Console, Camcorder or Cable/Satellite Set-top Box
■
When using Composite cable (INPUT 1 or 3):
• Game console • VCR
• Camcorder • Cable/Satellite set-top box
AUDIO-L (White)
VIDEO (Yellow)
AUDIO-R (Red)
Rear of the TV
Side panel
AV cable
